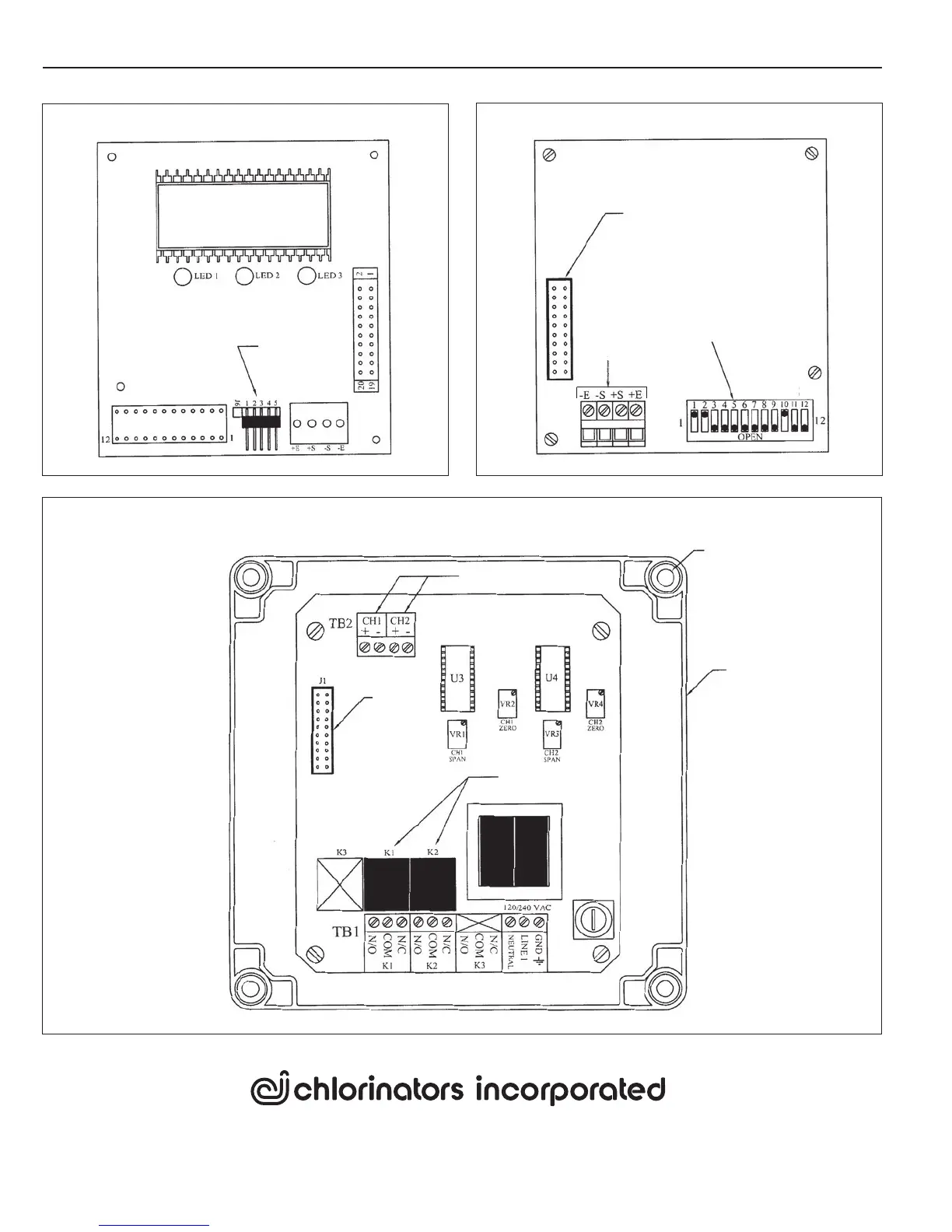

DRAWING NO. 3 - CIRCUIT BOARDS FOR ECS SERIES ELECTRONIC CYLINDER SCALES
A) Front Side of Display Board B) Back Side of Display Board
C) Power Supply Circuit Board in ECS-402 (Dual Cylinder) Enclosure
KEYPAD
RIBBON
CONNECTOR
R
IBBON CABLE CONNECTOR
SCREW HOLES FOR
MOUNTING TO WALL
MAIN ENCLOSURE
4-20 mA OUTPUTS
OPTIONAL
LOW WEIGHT
ALARM RELAYS
IMPORTANT
On a Dual Cylinder Scale
(
ECS-402), switch No. 5 is
f
actory set in the ON position
f
or one display board and in
the OFF position for the
second board. DO NOT
change this setting.
RIBBON
CABLE
CONNECTOR
For the scale
base(s)
wiring guide,
s
ee page 4,
s
tep B3
under
Installation.
TB10
S1
J1
