As installed the Garmin chartplotter single or twin
display features many GPS features along with the
ability to monitor engine system functions which
may include revolutions per minute (rpm’s), GPS
speed, voltage, fuel fl ow rate, trim, and temperature
along with tracking engine hours.
Note that the Garmin chartplotter can control the
Fusion entertainment system through the NMEA
2000 backbone.
1. To power up the Garmin GPS press the on
button located on the upper right display.
2. The function AV/Gauges,Controls will appear
as one of the choice boxes. Press the box. Another
screen with engine will appear.
3. Press the engine box and the engine gauge
displays will appear.

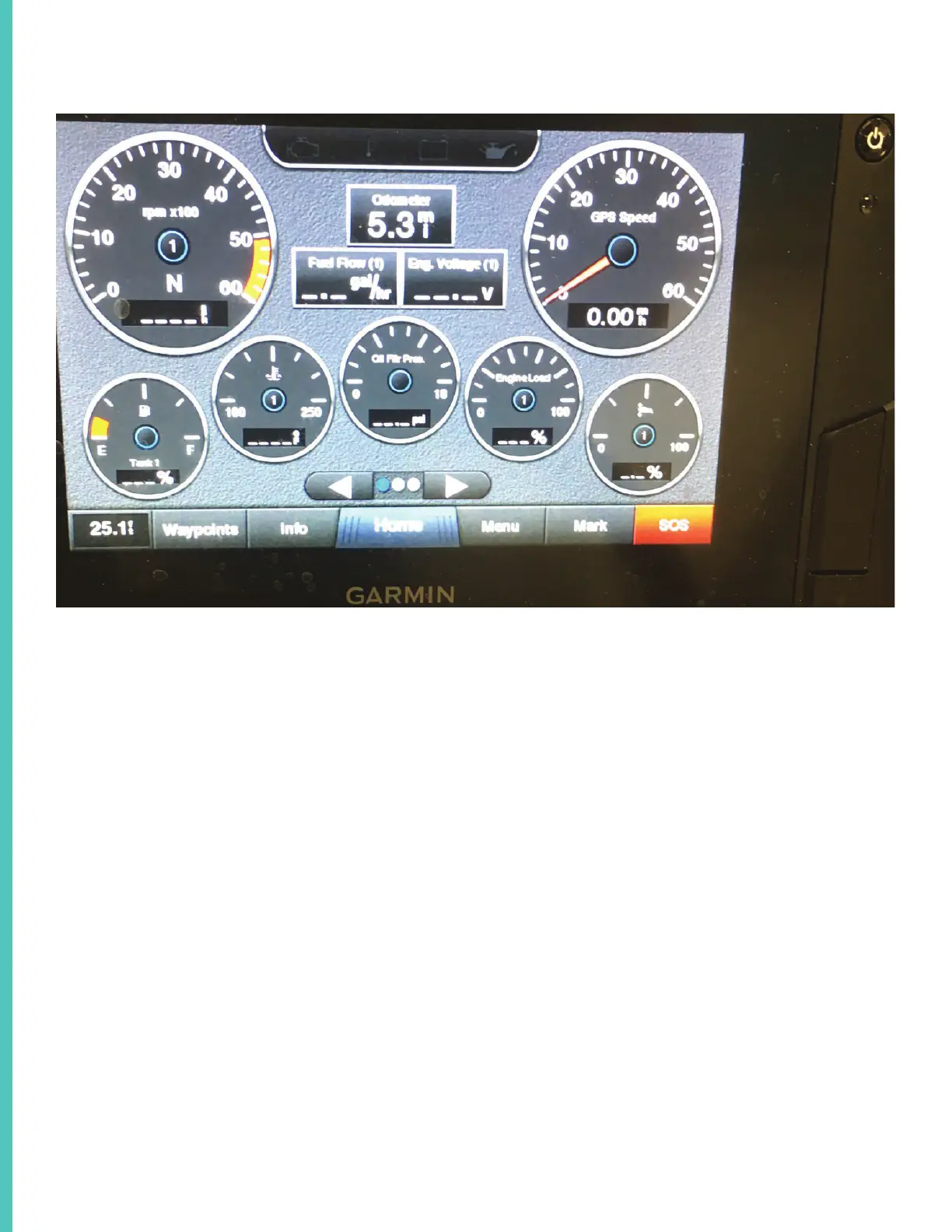

TYPICAL GARMIN GAUGE DISPLAY
* NOTE THAT YOUR GARMIN CHARTPLOTTER MAY SLIGHTLY DIFFERENT FROM DISPLAY ABOVE
