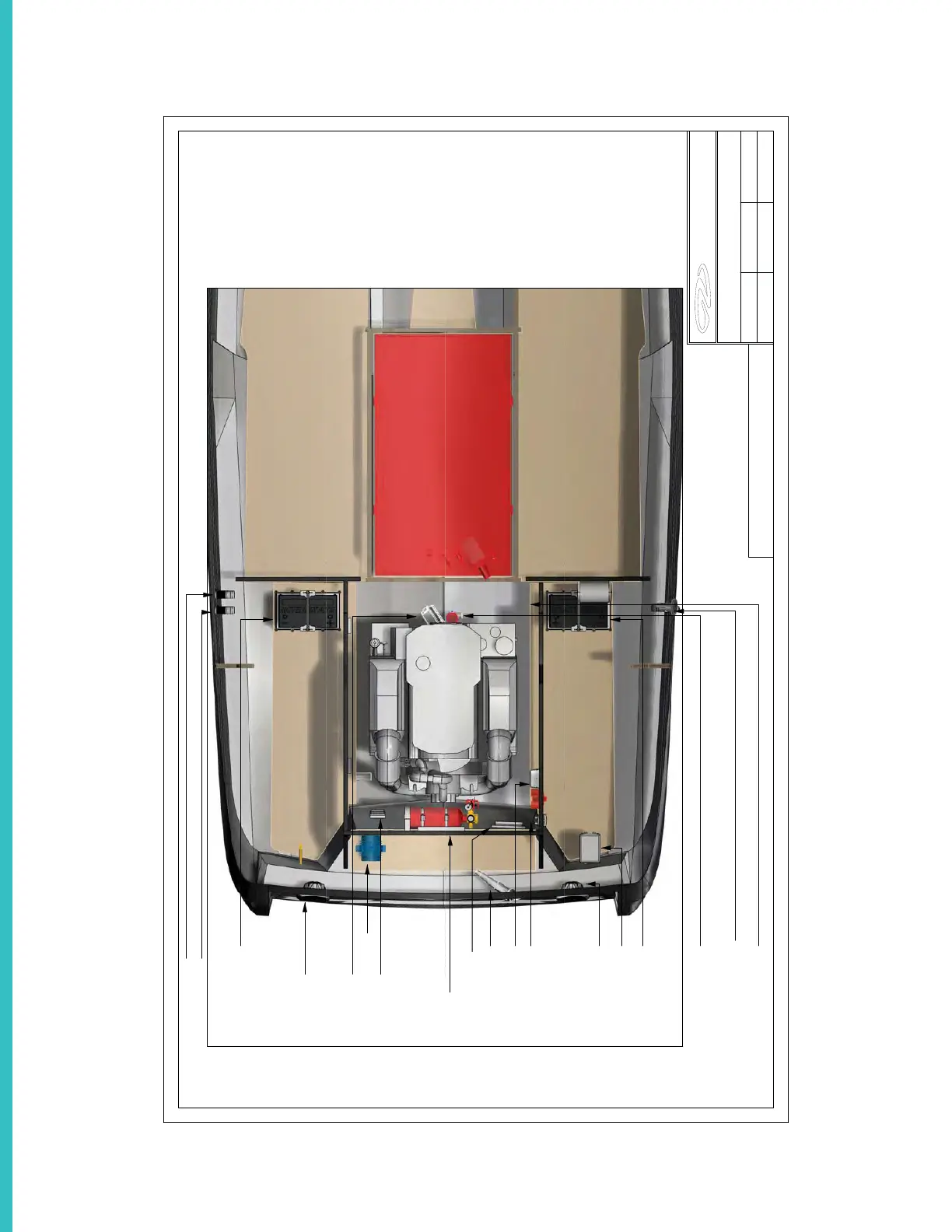

z5 (MH) Sump Layout
-
REVISION:
ALL RIGHTS RESERVED
DWG. NO.:
MMH23B
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF REGAL MARINE
INDUSTRIES. ANY REPRODUCTION IN PART OR AS WHOLE WITHOUT THE WRITTEN
PERMISSION OF REGAL MARINE INDUSTRIES IS PROHIBITED.
2300 JETPORT DRIVE
ORLANDO, FLORIDA 32809
TEL (407) 851-4360
PAGE:
1 OF 5
CVL
APPROVED BY:
DATE:
REGAL MARINE INDUSTRIES
1/22/2018
Mike W.
Tap Shower Cold Only Angle Mount
Part #: 282529
Battery 31 Amp
Part No. 2215
Battery Tray
Part No. 14792
Battery 31 Amp
Part No. 2215
Battery Tray
Part No. 14792
Switch: Battery Dual
Part No. 221401
Fireboy
Part No. 18781
Fuel Tank Vent (2 Pieces)
Part No. 12753
Charcoal Canister Part No. 281249
Speakers: Fusion 6"
Part No. 957533
Bilge Pump
Part No. 57661
1" Thru Hull
Part No. 30144
1 1/2" Thru Hull
Part No. 30146
Dual Battery ACR
Part No. 221402
Cathode System
Trim Tab Pump
Switch: Bilge, Highwater
Part No. 57674
Blower: 4" x 4"
Part No. 68312
Bar; Bus, Main, GRND 250 Amp
Part No. 956733
Speakers: Fusion 6"
Part No. 957533
