45 3/8
Head Sink Drain
Thru Hull; 1-1/8" W/Barb - 316 S.S./ Plastic
Part No.30145
Drill Hole Size: Ø 1 3/8"
Hose Size: Ø 1 1/8"
106 3/16
11 11/16
Light
Port Side
Cockpit Drain
Thru Hull; 1-1/2" W/Barb - 316 S.S./Plastic
Part No. 30146
Drill Hole Size: Ø 1 5/8"
Hose Size: Ø 1 1/2"
48 5/16
2 15/16
Thru Hull ; 3/4" W/ Barb - 316 S.S./Plastic
Part No: 30143
Drill Hole Size: Ø 1 3/8"
Hose Size: Ø 3/4"
Portlight
61 5/8
Spencer M.
2/12/2018
2 OF 4
REVISION:DATE:
PAGE:
ALL RIGHTS RESERVED
-

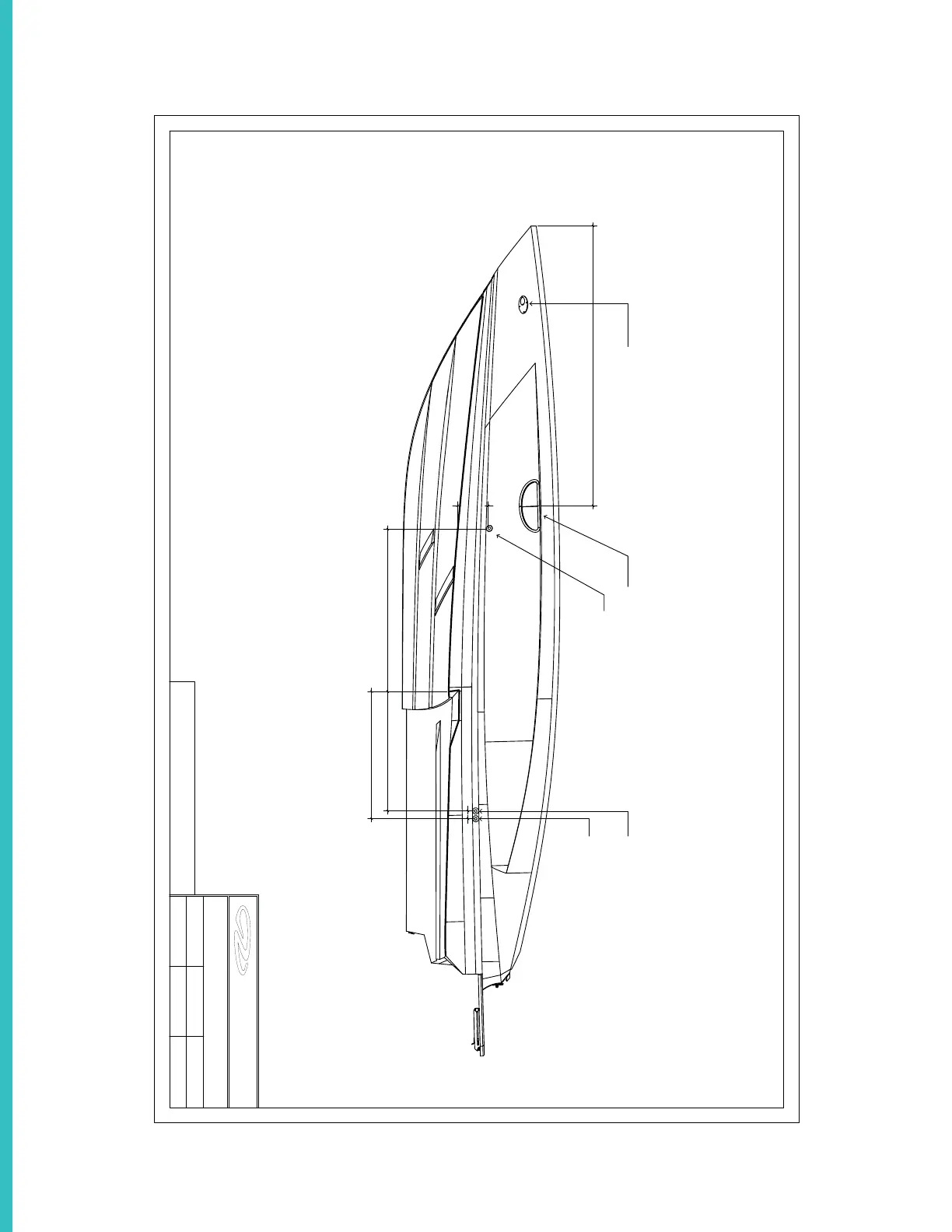

LS6 (MH) Hull Hardware
36
DWG. NO.:
REGAL MARINE INDUSTRIES
2300 JETPORT DRIVE
ORLANDO, FLORIDA 32809
TEL (407) 851-4360
APPROVED BY:
DRAWING TITLE:
DRAWN BY:
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF REGAL MARINE
INDUSTRIES. ANY REPRODUCTION IN PART OR AS WHOLE WITHOUT THE WRITTEN
PERMISSION OF REGAL MARINE INDUSTRIES IS PROHIBITED.
CVL
