Regal SMARTVALVES - Page 34

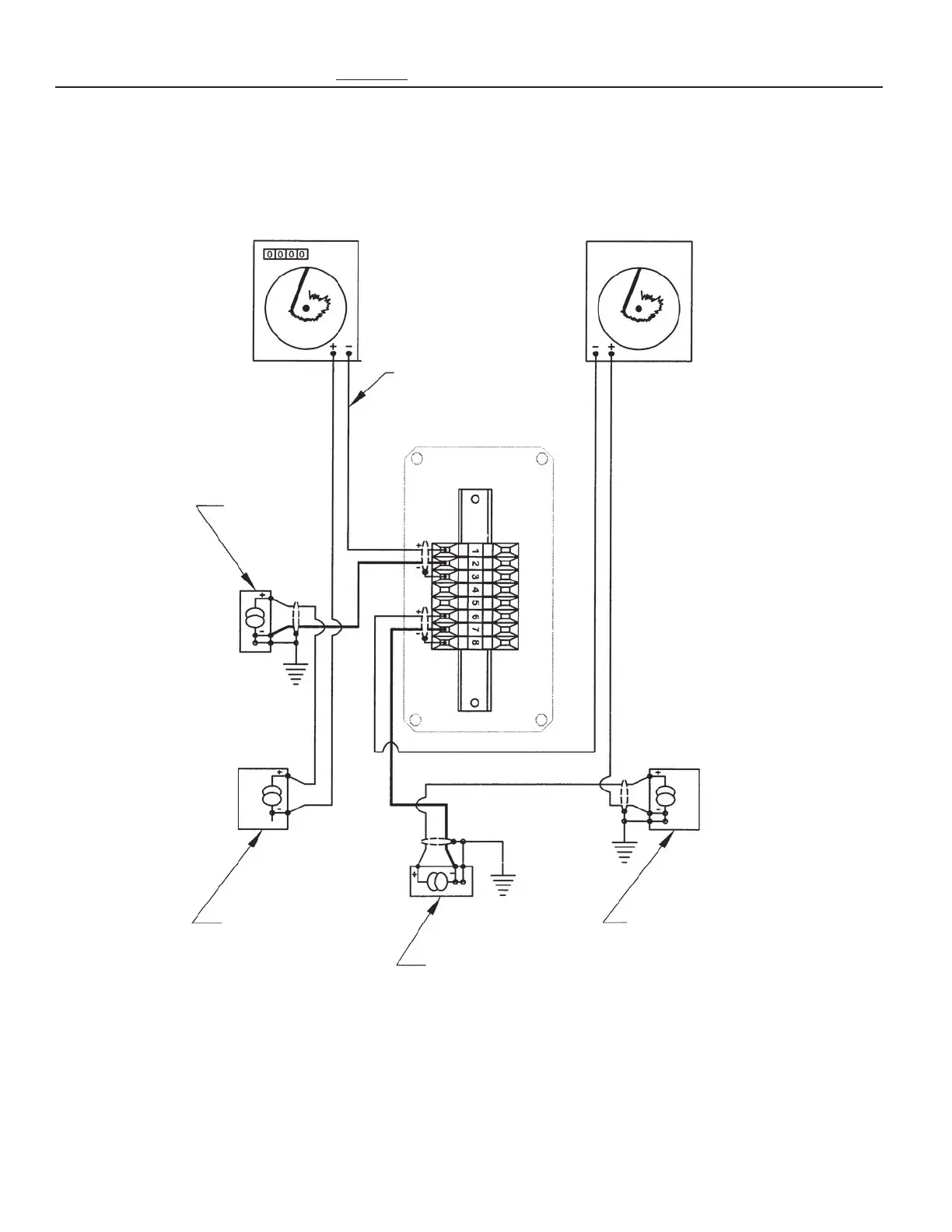

DRAWING NO. 17 — SIGNAL CONNECTION SCHEME
When Flowmeter and Analyzer DO NOT
Provide Analog Loop Power
Water Flow
Recorder
Residual
R
ecorder
Water
Flowmeter/
Transmitter
Residual
Analyzer
Remote DC Power
Remote
DC Power
Junction Box (left side) for
Model 7009 SMARTVALVE
Flow 4-20mA Current Loop
Residual 4-20mA Current Loop
34
