Regal SMARTVALVES - Page 33

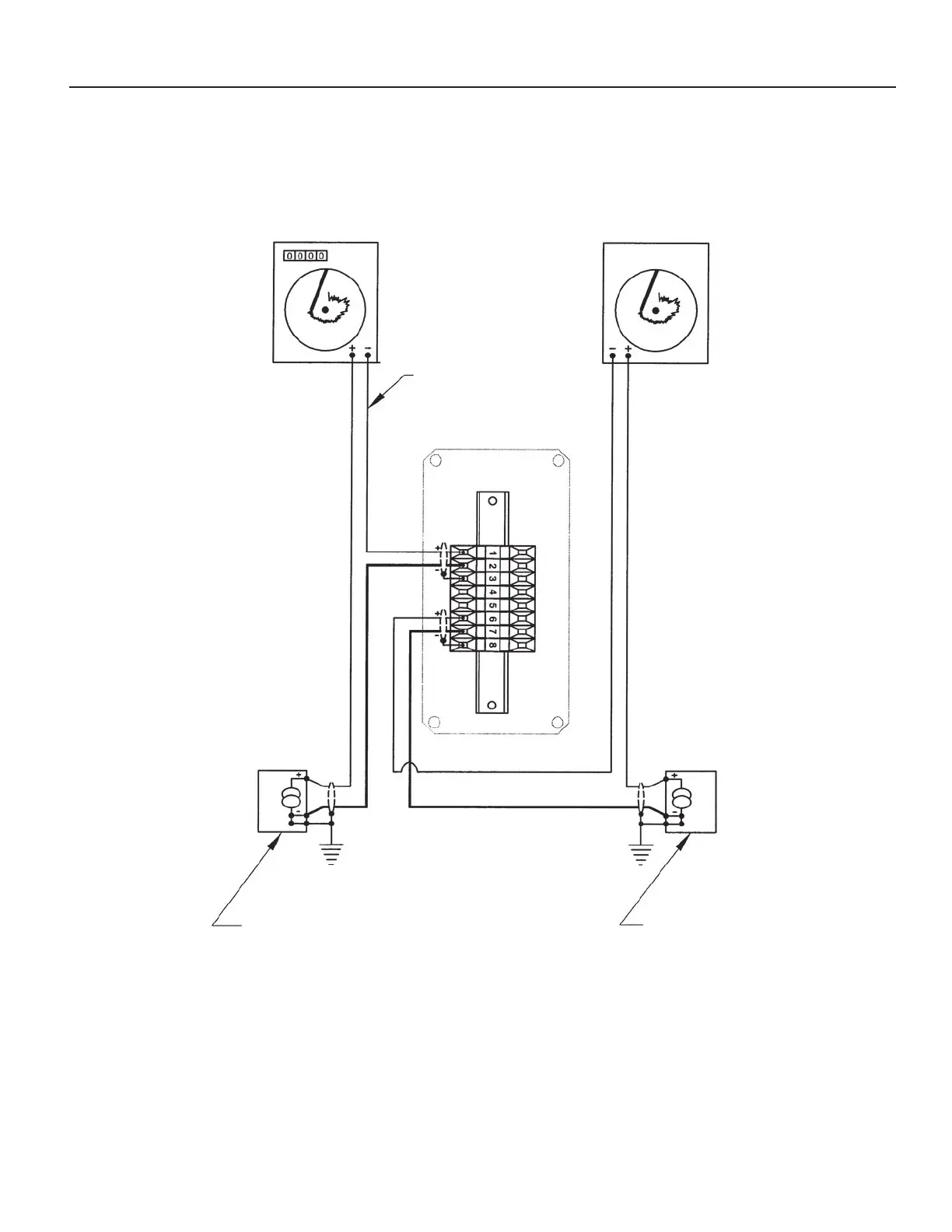

DRAWING NO. 16 — SIGNAL CONNECTION SCHEME
When Flowmeter and Analyzer Provide Analog Loop Power
Water Flow
R
ecorder
Residual
R
ecorder
Water Flowmeter/Transmitter
Residual
Analyzer
Junction Box (left side) for
Model 7009 SMARTVALVE
Flow 4-20mA Current Loop
Residual 4-20mA Current Loop
33
