2 | I2500 Cascades
®
Wood Fireplace Insert
CLEARANCES

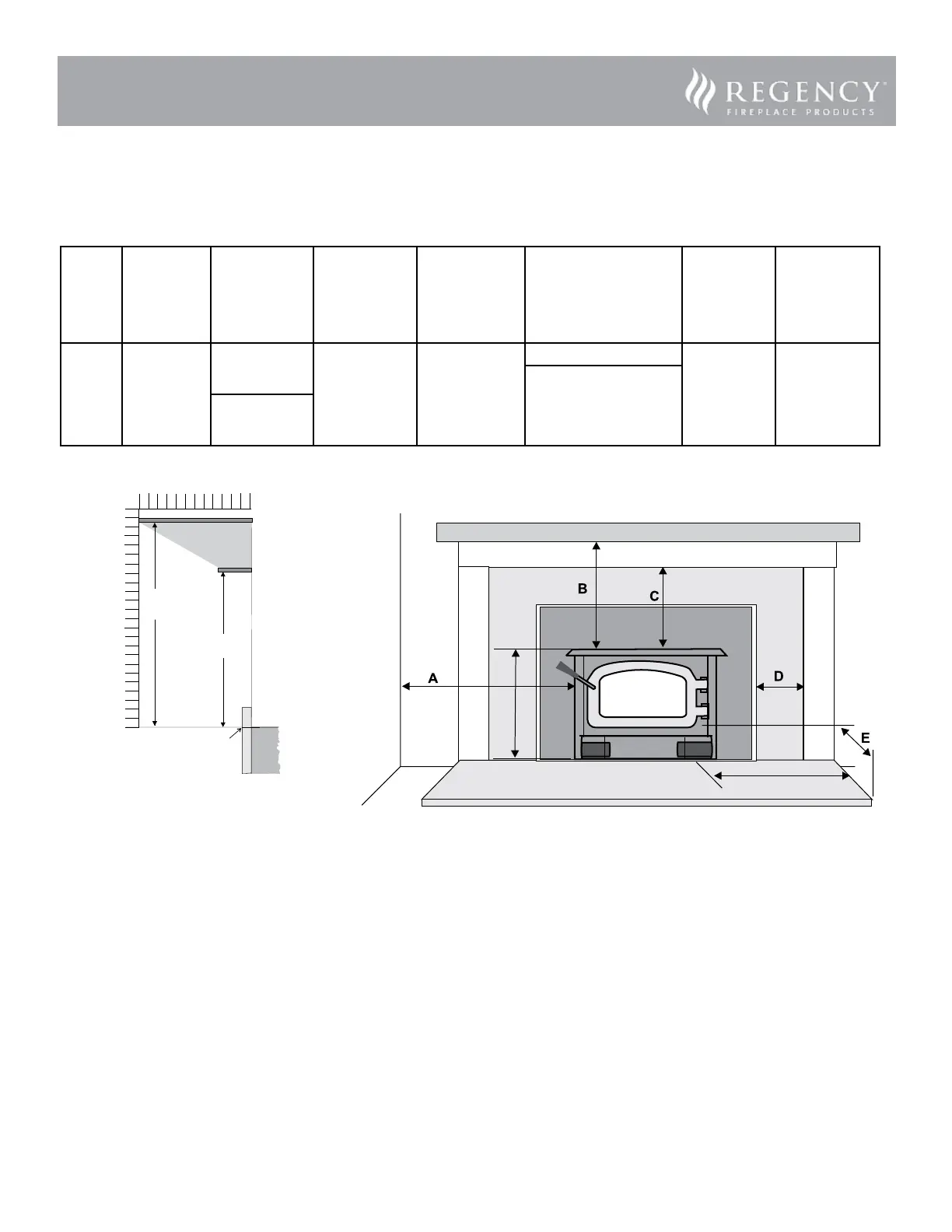

Clearance diagram for installations
Side and Top facing is a maximum of 1-1/2" (38mm) thick.
MASONRY AND FACTORY BUILT FIREPLACES
The minimum required clearances to combustible materials when installed into a masonry or factory built replace are listed below.
F
G
*Floor Protection
Floor thermal insulation/protection with a R value of 2.8 is required if the unit is raised 0 - 3"
(0-76mm) (measured from the bottom of the appliance).
Thermal oor protection is not required when unit is raiser greater than 3" (76mm) (measured
from the bottom of the appliance).
Please check to ensure that your oor protection and hearth will meet the standards for clearance
to combustibles. Your hearth extension must be made from a non-combustible material. Extending
16" for US and 18" for Canada—measured from the fuel loading door.
Side View
12" (305mm) Mantel
3-1/2" (89mm) Mantel
22-1/2"
(572mm)
17-1/4"
(438mm)
2
0
12
6
4
810
2
0
12
6
16
4
14
8
18
10
Top of
Unit
20
22
24
Clearances are critical.
**Mantel can be installed anywhere in shaded area
or higher using the above scale.
Note: Ensure the paint that is used on
the mantel and the facing is "heat
resistant" or the paint may discolour.
Unit
I2500
Adjacent
Side Wall
(to Side)
A
Mantle **
(to Top of
Unit)
B
Top
Facing
(to Top of
Unit)
C
Side
Facing
D
Minimum
Hearth
Extension*
E
Minimum
Hearth Side
Extension*
F
To Top of Unit
G
12" (305mm)
17-1/4"(438mm)
for 3-1/2" (89mm)
mantel
16" (406mm) 1/2"(13mm)
to side surround
16" (406mm) USA 8" (203mm)
20" (508mm)
18"(457mm) Canada
22-1/2"(572mm)
for 12" (305mm)
mantel
WOOD INSERT
SPECIFICATIONS
Your replace opening requires the following
minimum sizes:
Height: 21.5"
Width: 25"
Depth: 17"
Two faceplates are available to seal the replace
opening:
Standard Oversize
40" W x 30" H 48" W x 33" H
