Doc ID: 193-300A
Revision: 121718
2
INSPECT EXP ASSEMBLY
Use the following instructions to properly inspect the EXP
bases, wedges, and Teflon pads.
Step 1: Remove the EXP assembly
a. Remove the EXP assembly from the bike. Instructions
for disassembling the clutch can be found in your
installation manual.
b. Clean off any debris or oil from the EXP bases with a
clean towel.
Step 2: Measure the EXP
a. Measure the width of the EXP assembly from friction pad
to friction pad. Use the part number stamped on the EXP
base tab to determine which measurement is correct for
your bike model.
• For EXP part number 140-216: minimum thickness
is .590” (14.99 mm).
• For all other part numbers: minimum thickness is
.416” (10.57 mm).
b. If the EXP is above the minimum thickness, continue
with the next step. If the EXP is below the minimum
thickness, replace the EXP bases and Teflon pads.

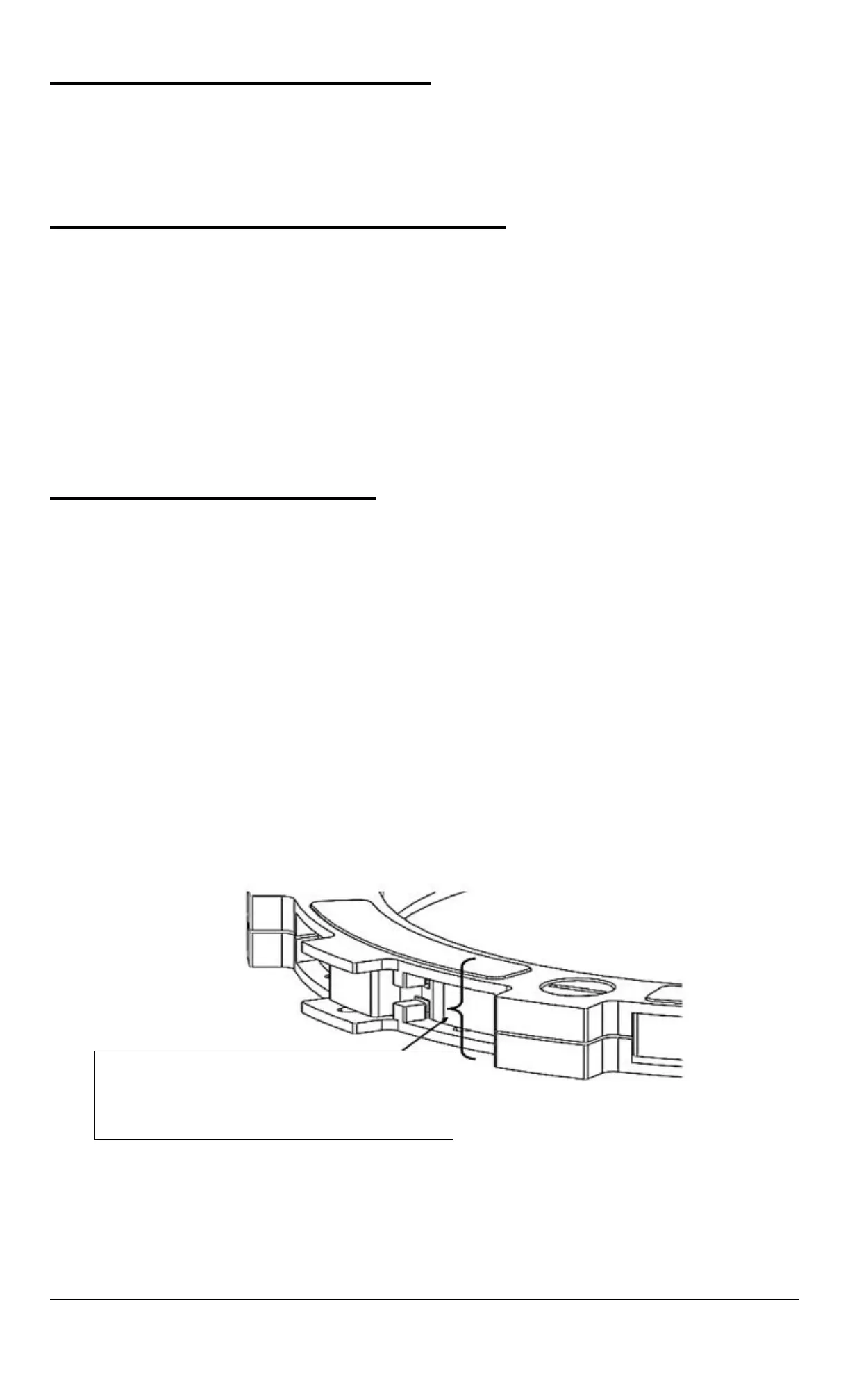

Measure from friction pad
to friction pad.
