REL Acoustics QUAKE - Controls and Connections - Q108 (US Market Only)

REL Acoustics ‘Q’ range User manual
9
MAX
MIN
LO LEVEL
MAX
MIN
106HZ
26HZ
HI LEVEL
CROSS OVER
POWER
41HZ
IN
OUT
XOVER
HI LEVEL
LFE
PC
CE
Q108
FUSE 3.15 A/T
~ 110-120 VAC 50-60 HZ
100 WATT MOSFET
SUB-BASS SPEAKER SYSTEM
PROTECTED BY
R
REL ACOUSTICS
LTD NORTH ROAD BRIDGEND CF31 3TP UNITED KINGDOM
http://REL.net
FAX: +44 (0) 1656 766093
0
180
PHASE

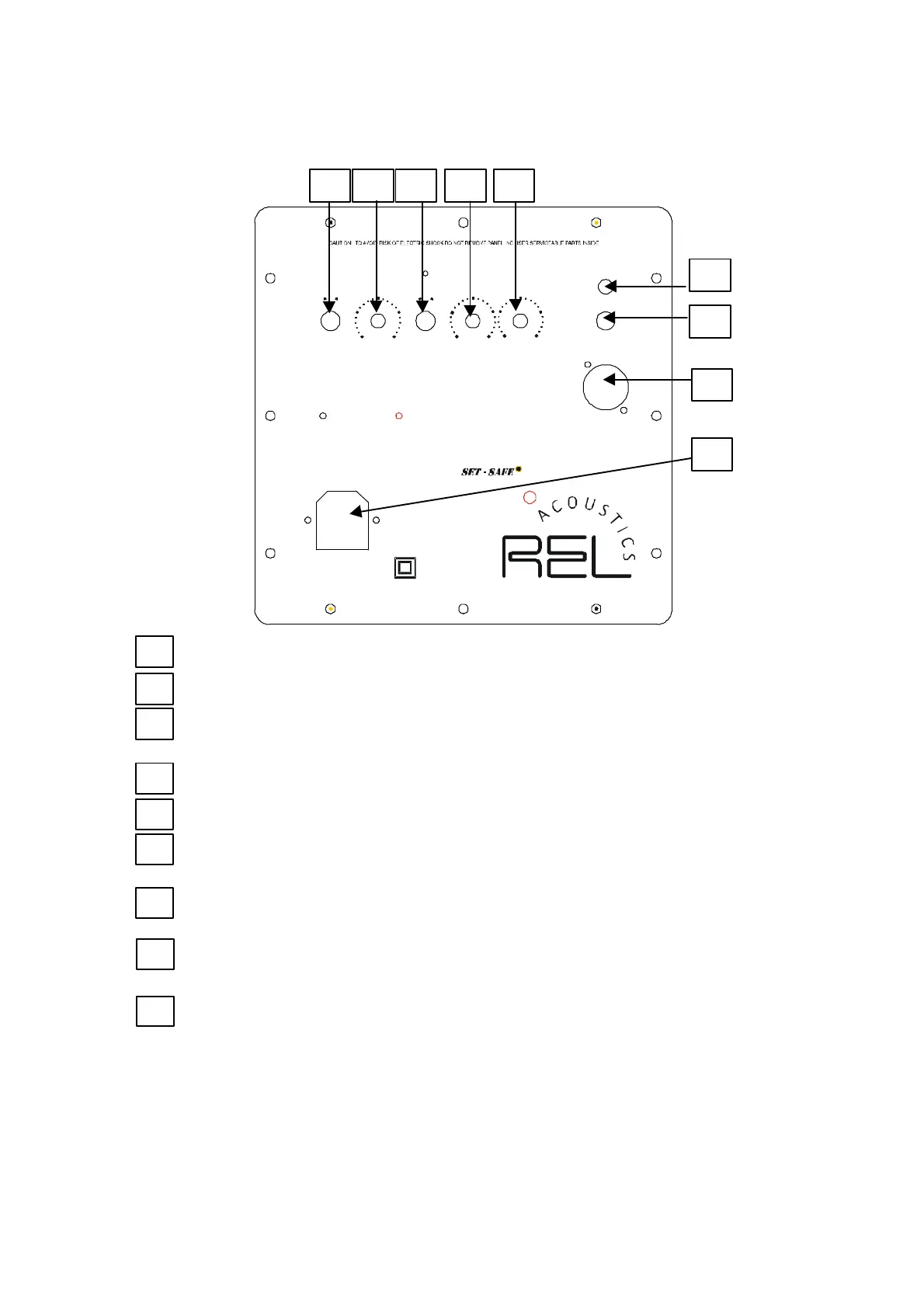

CONTROLS AND CONNECTIONS - Q108 US MARKET ONLY
1 2 3 4 5
6
7
8
9
1 PHASE switch 0 and 180 degrees. Phase selection affects both high and low level inputs.
2 CROSS OVER. Adjust to set the roll off frequency of the sub bass system.
3 XOVER. Switches the CROSS OVER in or out. Only affects LFE input, always active for
high level input.
4 LO LEVEL input volume control. Adjust for output level when using LO LEVEL phono input.
5 HI LEVEL input volume control. Adjust for output level when using HI LEVEL Neutrik input.
6 PC. Low level input 3.5mm jack socket. Used to connect the Sub Bass System to a
computer.
7 LFE input phono socket. Used to connect the Sub Bass System to the LFE/Sub output of a
5.1 channel amplifier or processor.
8 HI LEVEL input Neutrik Speakon socket. Used to connect the Sub Bass System to the main
front speaker terminals on the amplifier.
9 IEC Mains input socket.
