REL T-Series Owner’s Manual 11
Low level input connection using phono to phono interconnect (Note: This
connection should only be used in the event that the high-level connector can not
be used, i.e. if you are using active [self-amplified] speakers without high level
speaker terminals, or if crossover control is desired for .1/LFE track reproduction.
Otherwise it is not the preferred connection method, and should not be used)
Connect as shown above. Plug one end into the Sub/LFE output on the amplifier/
processor and the other end into LOW LEVEL INPUT on the Sub-Bass System.
The output level is adjusted using the control marked HI/LO LEVEL
.1/LFE input connection using a phono to phono interconnect (Note: This
connection is for the .1/LFE channel and should only be used if the REL is being used
in a multi-channel system where a .1/LFE signal is present, e.g. with DVDs or SACDs)
Connect as shown above. Plug one end of the interconnect into the Sub/LFE output
on the amplifier/processor and the other end into .1/LFE INPUT on the Sub-Bass System.
The output level is adjusted using the control marked .1/LFE LEVEL
Phase Switch
There are two settings accessible via the phase switch: 0 and 180. Follow the
procedure detailed below in the section entitled “REL Set-Up Made Simple” to select
the appropriate position.

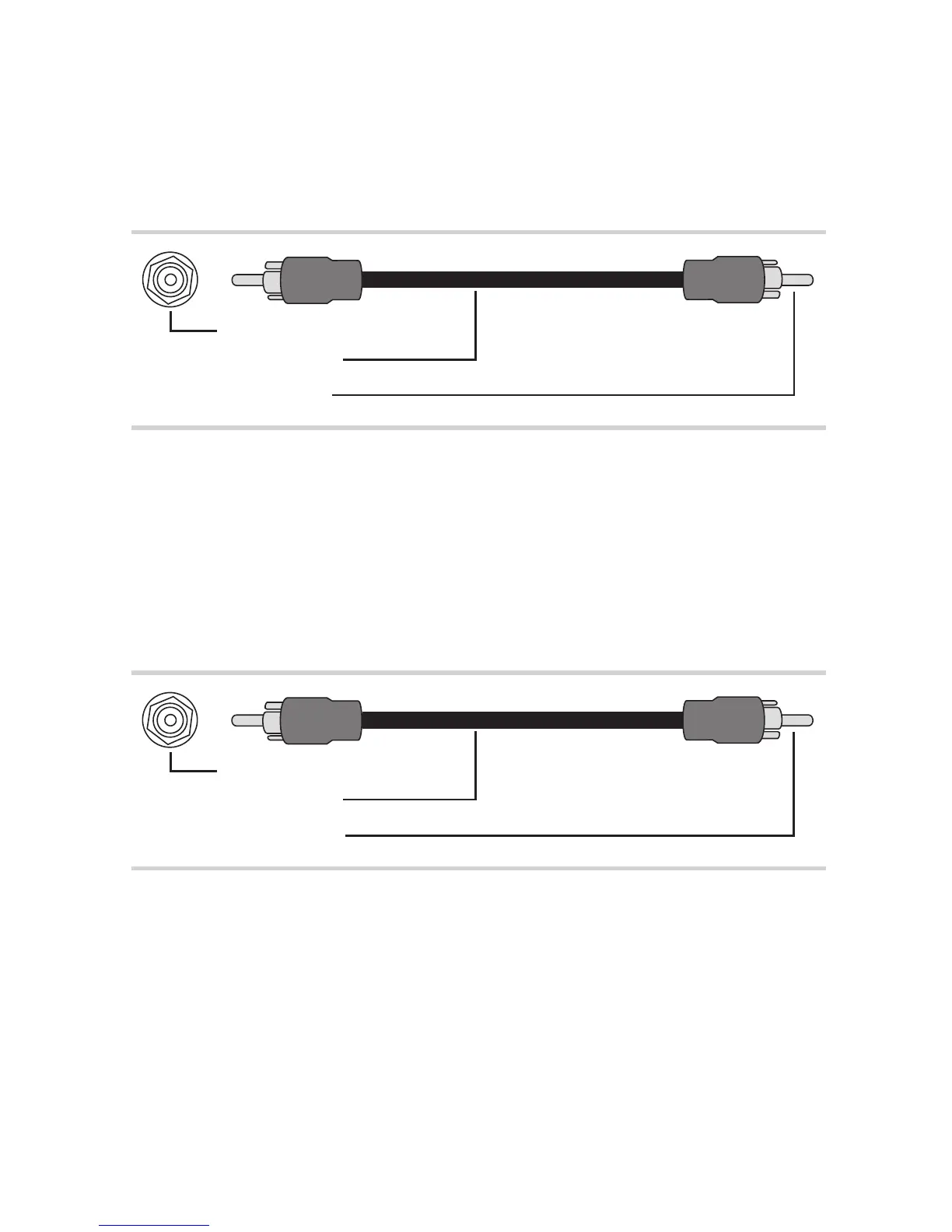

.1/LFE INPUT
Phono Interconnect
To Sub/LFE output of
Amplifier/Processor
LOW LEVEL INPUT
Phono Interconnect
Preamp Output
or Sub/LFE Output
