Reliable 4200SW - Page 13

2.Upper shaft and thread take-up mechanism
Thread take-up lever pin shaft
Screw
Oil wick
Thread take-up lever
Slide block
Oil wick
Needle bar link
Needle bar crank pin
Oil wick
Screw
Needle bar crank
Scrwe
Screw
Upper shaft
Upper shaft front bushing
Screw
Upper shaft middle bushing
Oil wick
Bearing bushing
Screw
Upper bearing
Balance block
Screw
Synchronic wheel assembly
Screw
Sychronic belt
Balance wheel
Screw
Lift eccentric wheel
Screw
Feed eccentric wheel
Screw
Retaining block
Screw
Thread take-up lever pin shaft
Screw
Oil wick
Thread take-up lever
Slide block
Oil wick
Needle bar link
Needle bar crank pin
Oil wick
Screw
Needle bar crank
Scrwe
Screw
Upper shaft
Upper shaft front bushing
Screw
Upper shaft middle bushing
Oil wick
Bearing bushing
Screw
Upper bearing
Balance block
Screw
Synchronic wheel assembly
Screw
Sychronic belt
Balance wheel
Screw
Lift eccentric wheel
Screw
Feed eccentric wheel
Screw
Retaining block
Screw

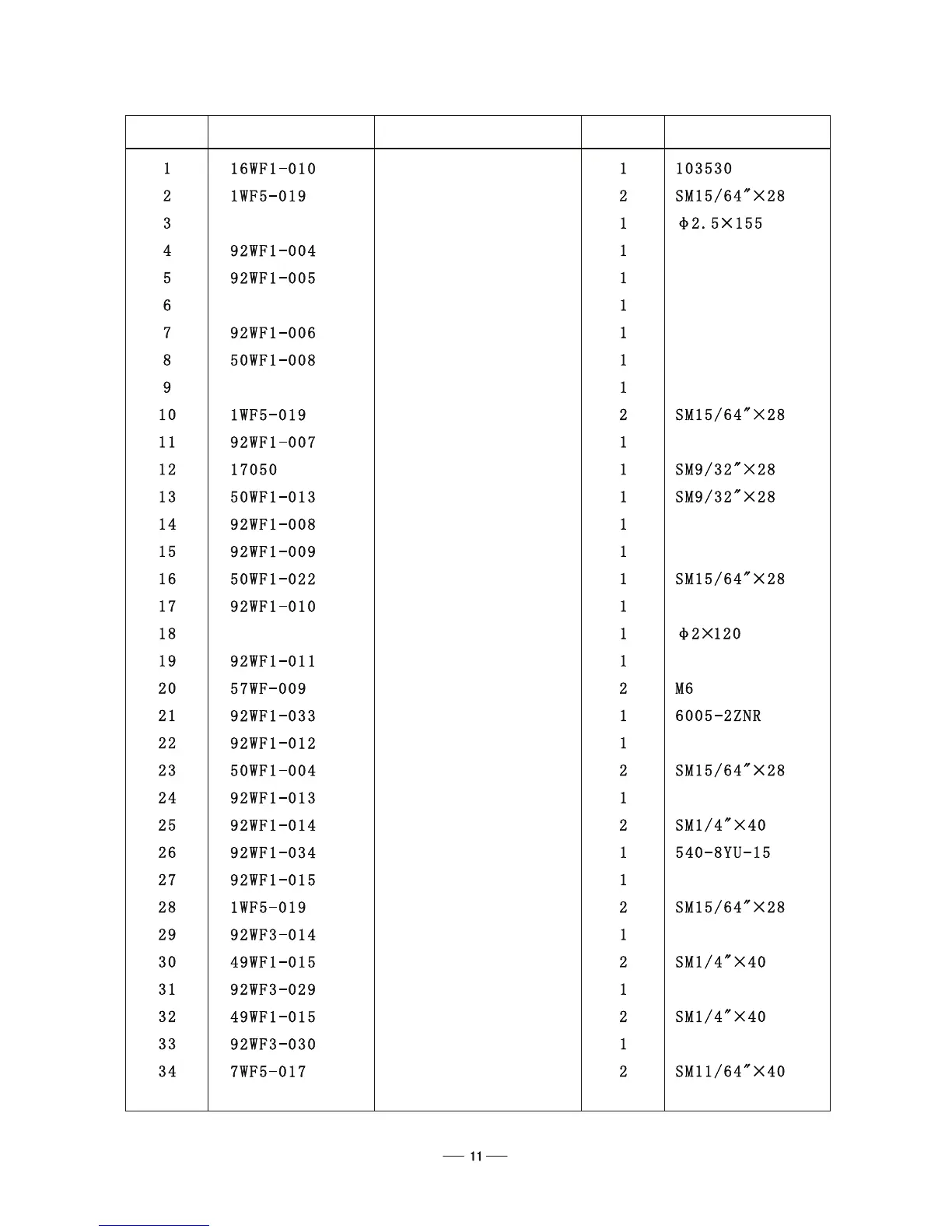

NO.NO.
NameName
Qt.Qt.
RemarkRemark
Part NumberPart Number
