Reliable G4 - Page 6

08 09
G4
1
2
3
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
4
40
41
42
43
44
45
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

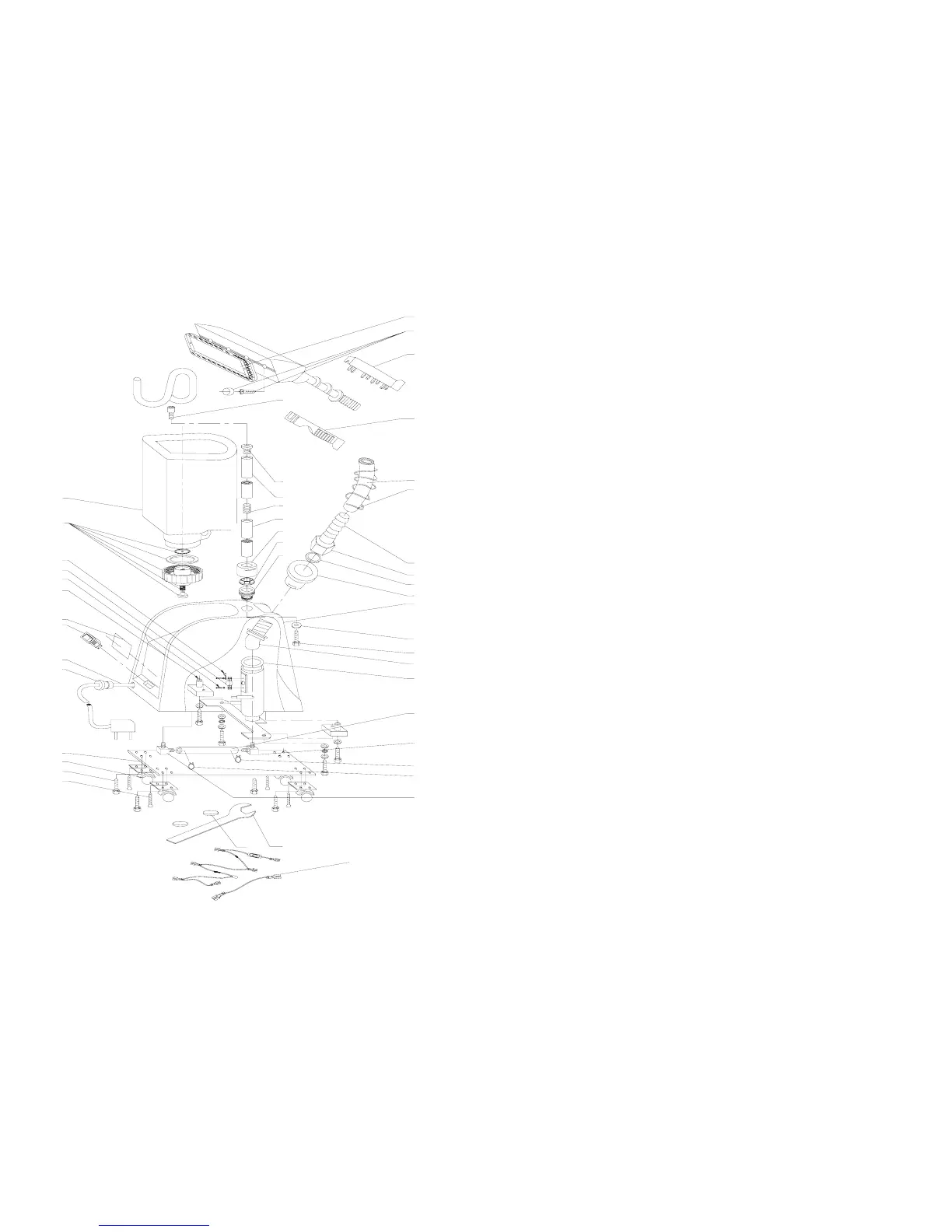

G4 PARTS LIST
REF. NO. PART NUMBER DESCRIPTION
1 HS-3 OuterHousing
2 HS-9 Cap
3 HS-10 HoseBarbNut
4 HS-11 HoseBarb
5 HS-12 Spring
6 HS-14W Hose
7 HS-20 HandleCoverBottom
8 HS-21 HandleCoverTop
9 HS-22/23 SteamHead
10 HS-32 Brush
11 HS-19 HangerRodTop
12 HS-18 NutCap
13 HS-17 HangerRodMiddle
14 HS-16 ThreadedConnector
15 HS-24 HangerRodBottom
16 HS-13 RodBase
17 HS-29 RodBasewasher
18 HS-28 RodBaseFitting
19 HS-8 Washer
20 GB818-85 Screw
21 HS-7 ElementCap
22 HS-2-0 Heaterelement
23 HS-1-0 SiliconeTubing
24 HS-4 ElbowConnector
25 HS-SP Spanner
26 HS-MAG Magnet
27 GB845-85 Screw
28 GB5285-85 Screw
29 HS-A-6 Caster
30 HS-1 BasePlate
31 HS-2W CordBushing
32 HS-A-3 PowerCord
33 HS-A-1 On/OffSwitch
34 HS-27W NamePlate
35 HS-25 Footer
36 GB818-85 Screw
37 HS-A-2 Thermostat
38 HS-A-5 Clamp
39 HS-A-4 Fuse
40 HS-5 BottleCap
41 HS-15 WaterBottle
42 HS-4 Elbow(sameasHS-24)
43,44 HS-CLIP Clip
45 HS-SEAL Seal
ASSEMBLIES: NOT SHOWN IN DIAGRAM
HHC Plastic Head and Handle Complete
HSHHC Plastic Head/Handle w/Hose Complete
HSMHHC Metal Head w/Hose Complete
HS-HR HangerRodComplete
