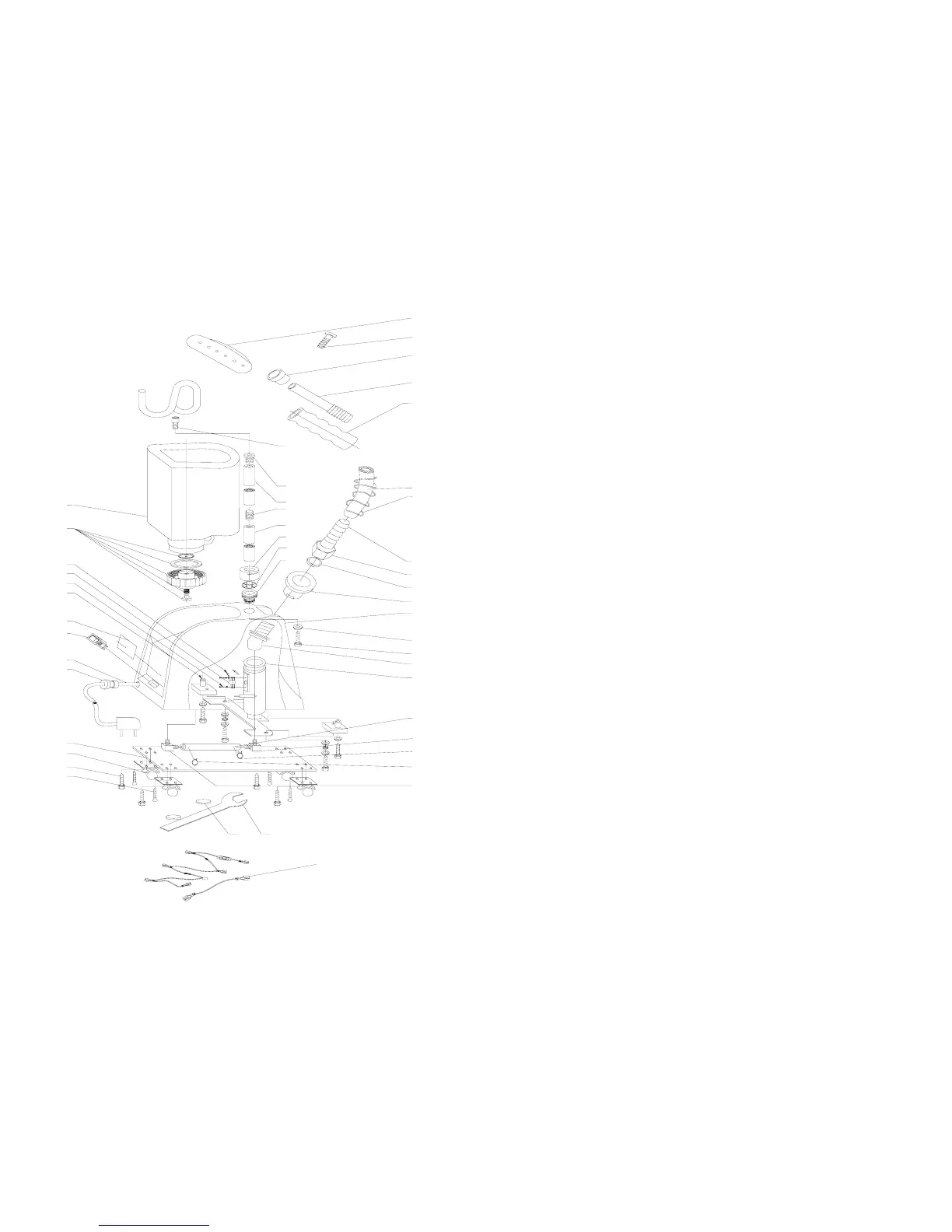

G4M PARTS LIST
REF. NO. PART NUMBER DESCRIPTION
1 HS-3 OuterHousing
2 HS-9 Cap
3 HS-10 HoseBarbNut
4 HS-11 HoseBarb
5 HS-12 Spring
6 HS-14W Hose
7-9,45,46 METALH MetalHeadw/WoodHandle
10 HS-19 HangerRodTop
11 HS-18 NutCap
12 HS-17 HangerRodMiddle
13 HS-16 ThreadedConnector
14 HS-24 HangerRodBottom
15 HS-13 RodBase
16 HS-29 RodBasewasher
17 HS-28 RodBaseFitting
18 HS-8 Washer
19 GB818-85 Screw
20 HS-7 ElementCap
21 HS-2-0 Heaterelement
22 HS-1-0 SiliconeTubing
23 HS-4 ElbowConnector
24 HS-SP Spanner
25 HS-MAG Magnet
26 GB845-85 Screw
27 GB5285-85 Screw
28 HS-A-6 Caster
29 HS-1 BasePlate
30 HS-2W CordBushing
31 HS-A-3 PowerCord
32 HS-A-1 On/OffSwitch
33 HS-27W NamePlate
34 HS-25 Footer
35 GB818-85 Screw
36 HS-A-2 Thermostat
37 HS-A-5 Clamp
38 HS-A-4 Fuse
39 HS-5 BottleCap
40 HS-15 WaterBottle
41 HS-4 Elbow(sameasHS-24)
42,43 HS-CLIP Clip
44 HS-SEAL Seal
ASSEMBLIES: NOT SHOWN IN DIAGRAM
HHC Plastic Head and Handle Complete
HSHHC Plastic Head/Handle w/Hose Complete
HSMHHC Metal Head w/Hose Complete
HS-HR HangerRodComplete
