Reliance 909 - Compact or Mobile Home Electric

23
REPREP
REPREP
REP
AIR PAIR P
AIR PAIR P
AIR P
ARTSARTS
ARTSARTS
ARTS

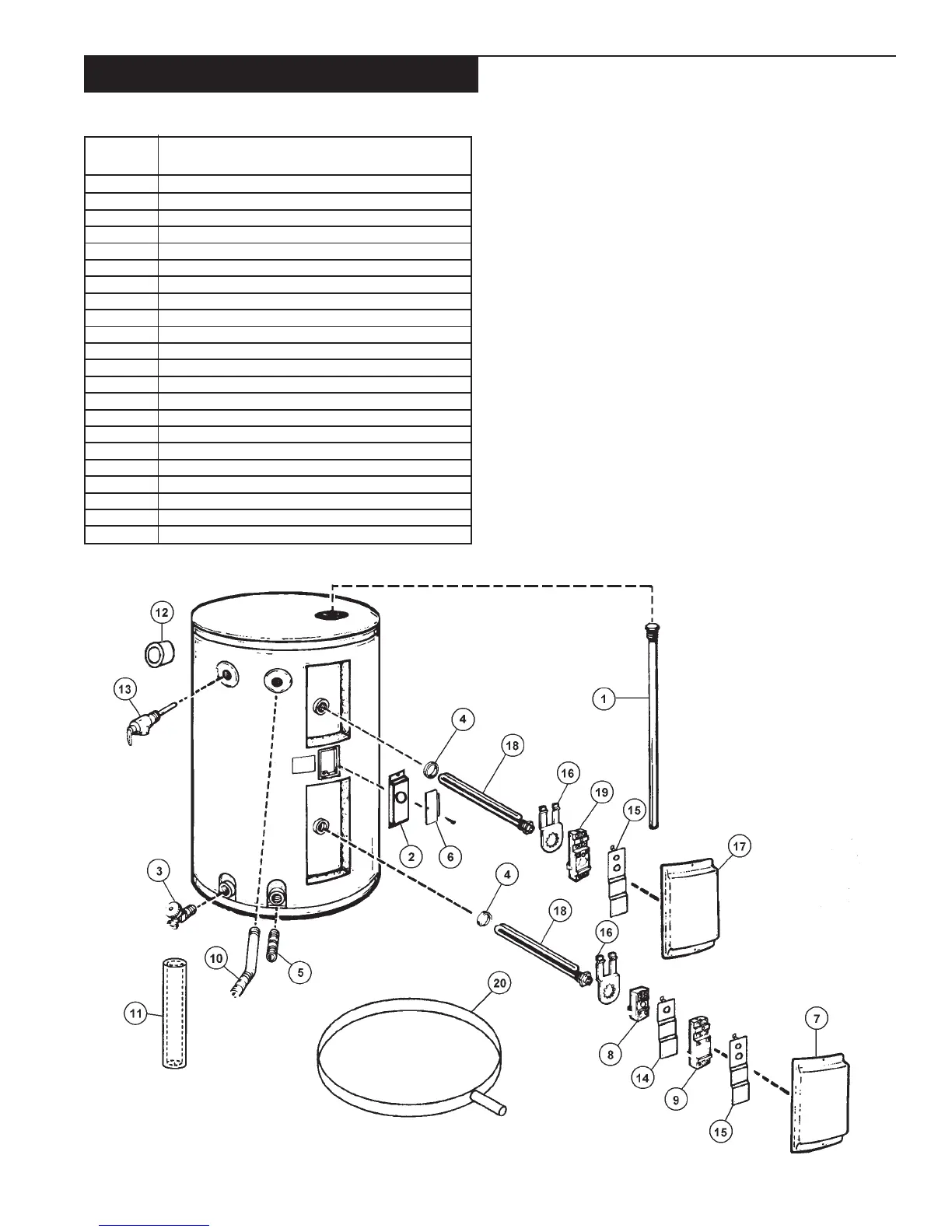

Compact or Mobile Home Electric
KEY
NO. PART DESCRIPTION
1 Anode Rod
2 Conduit Bracket
3 Drain Valve (30 gallon model only)
4 Element Gasket
5 Inlet Nipple
6 Junction Box Cover
7 Lower Access Panel (ea.)
8 Lower Thermostat
9 Lower Thermostat w/High Limit
10 Outlet Nipple Assembly
11 Pipe Insulation
12 T & P Insulation
13 T & P Valve
14 Terminal Cover
15 Terminal Cover
16 Thermostat Bracket (ea.)
17 Upper Access Panel (ea.)
18 Upper & Lower Element
19 Upper Thermostat w/High Limit
20 20” Dia. Base Pan w/Side Drain
20 22” Dia. Base Pan w/Side Drain
20 26” Dia. Base Pan w/Side Drain
The following parts may be ordered through the store you purchased
the water heater from, or direct from the factory.
Be sure to provide all pertinent facts when you call or visit.
Selling prices will be furnished on request or parts will be
shipped at prevailing prices and you will be billed accordingly.
The model number of your Electric Water Heater will be found on the
model rating plate located above the lower access panel.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING
INFORMATION:
• MODEL NUMBER
• SERIAL NUMBER
• VOLTAGE AND ELEMENT WATTAGE
• PART DESCRIPTION
THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.
