REMKO series ETF Eco
The unit runs but condensate
is not formed
■
Check the hygrostat’s setting
The set value must be lower
than the actual relative
humidity in the installation
room!
■
Check the intake grill and air
filter for contamination
Clean or replace if required!
■
Have the heat exchanger fins
checked for contamination
This work requires the unit to
be opened and must therefore
only be carried out by an
authorised specialist company!
■
Check that the compressor is
functioning correctly. If it is not
operational while the fan is run-
ning, then the leakage control
device has disabled the com-
pressor. Check the refrigerant
system for leaks.

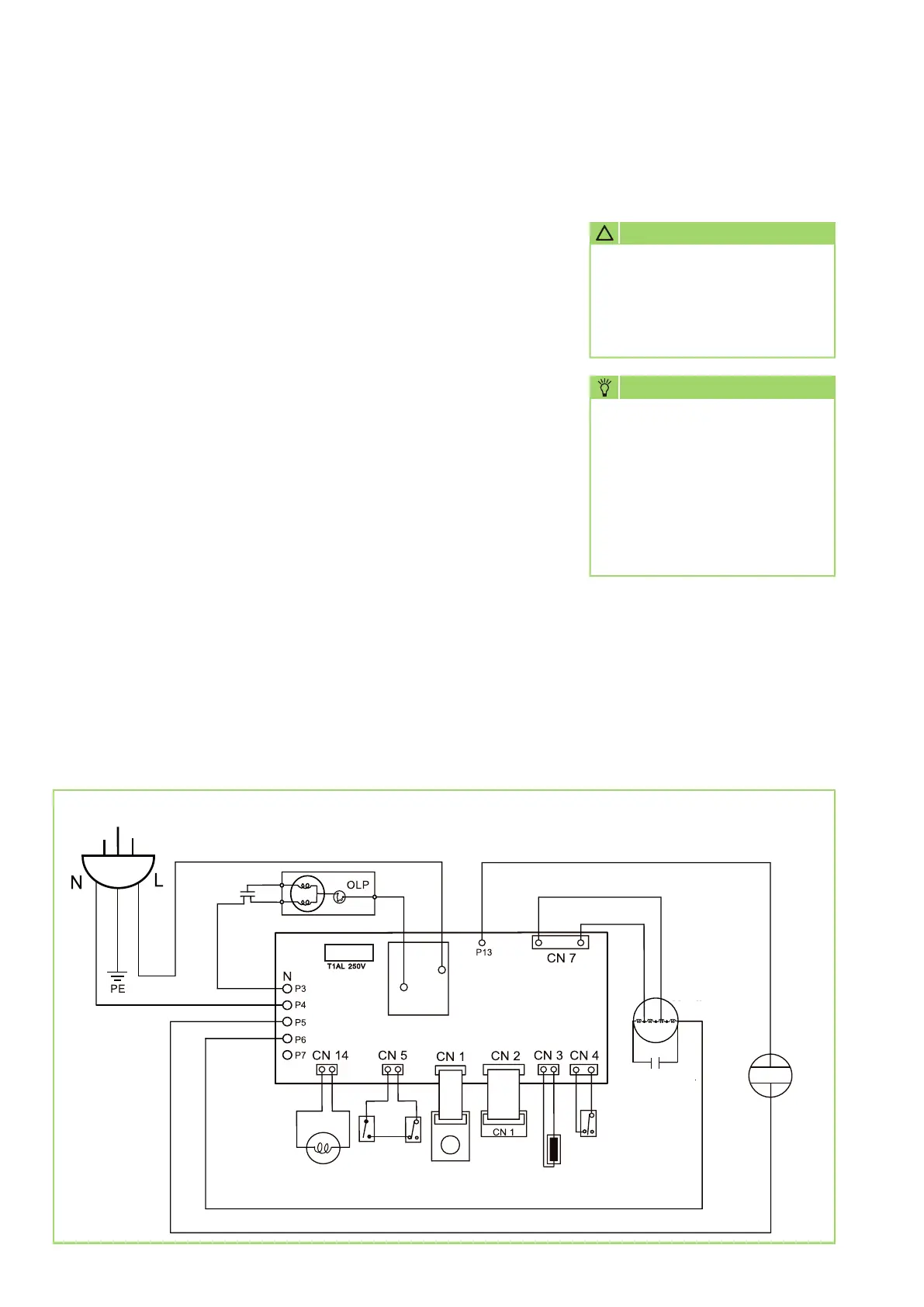

Electrical wiring diagram
Note on refrigerants
The units work with
environmentally-friendly and
ozone-neutral R410A refrigerant.
The mixture of refrigerant and oil
within the unit must be disposed
of properly in accordance
with the statutory or locally-
applicable regulations.
Work on the refrigerant
system and on the electrical
equipment must only be
conducted by a specially-
authorised specialist!
CAUTION
!
The unit is loud or condensate
runs out
■
Check whether the unit is on
a stable and even base
■
Check whether the unit is
standing upright and stably
■
Have the condensate trap or
the discharge nozzle checked
to see whether there are dirt
deposits on them
This work requires the unit to
be opened and must therefore
only be carried out by an
authorised specialist company!
Feuchtigkeits-
sensor
Temperatur-
sensor
SCHWARZ
BLUE
BLUE
RED
RED
YELLOW
ON
COM.
BLUE
BLUE
BLUE
BLUE
WHITE
WHITE
BLACK
Compressor
Capacitor
Capacitor
Microswitch
Microswitch
Temperature
probe
Condensate
pump
Humidity
probe
Operating
board
Fuse
BROWN
Fan
2-way
solenoid
valve
