14
REMKO PGT

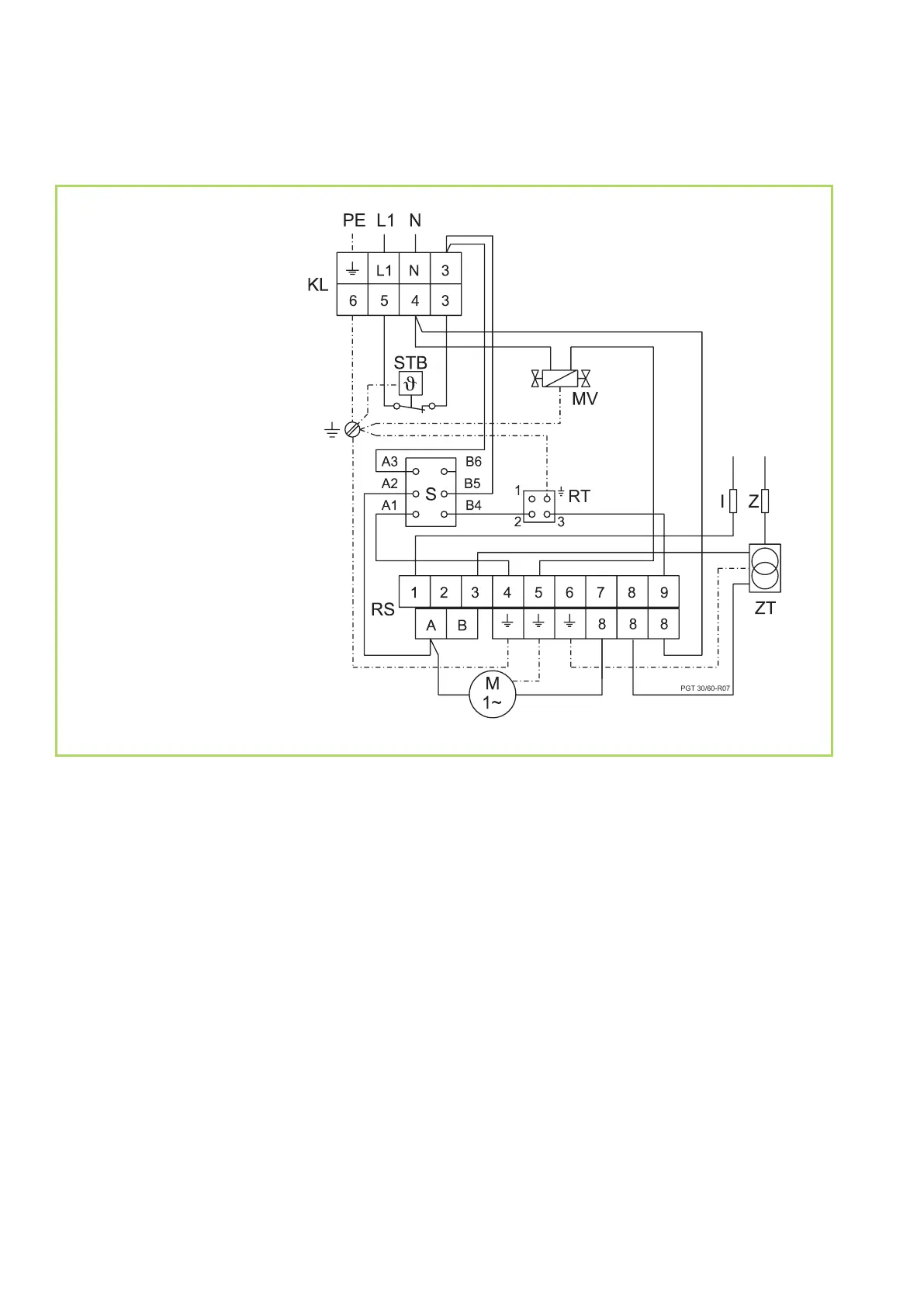

Electrical wiring diagram
PGT 30/60-R07
RT
PGT 30 / PGT 60
Legend:
I = Ionisation electrode
KL = Terminal block
M = Fan motor
MV = Solenoid valve
RS = Relay socket
RT = Thermostat socket
S = Operating switch
STB = Safety temperature limiter
Z = Ignition electrode
ZT = Ignition transformer
We reserve the right to modify the dimensions and design as part of the ongoing technical development process.
