REMKO RKW 1000 INOX User Manual

13
RKW 2600 INOX
Model size
1000 INOX 1600 INOX 2600 INOX 3600 INOX 4500 INOX 8000 INOX 9800 INOX
A mm 1150 1150 1340 2370 2370 2990 2990
B mm 460 460 560 560 560 1280 1280
C mm 1300 1300 1770 1310 1310 1520 1520
D mm 625 625 90 715 715 900 900
E mm 615 615 1610 1180 1180 520 520
F mm 220 220 160 1100 1100 1300 1300
G mm - - - - - - - - - - - - - - - 290 290
K incoming water inch 1 ¼ ‘‘ inside 1 ¼ ‘‘ inside 1 ¼ ‘‘ inside 2 ‘‘ inside 2 ‘‘ inside 2 x 2 ‘‘ inside 2 x 2 ‘‘ inside
L outgoing water inch 1 ¼ ‘‘ inside 1 ¼ ‘‘ inside 1 ½ ‘‘ inside 2 ‘‘ inside 2 ‘‘ inside 2 x 2 ‘‘ inside 2 x 2 ‘‘ inside
M filling connection (water) inch ½ ‘‘ outside ½ ‘‘ outside
½ ‘‘ outside
- - - - - - - - - - - -
Fan / number Ø mm / - 450 / 2 450 / 2 630 / 1 630 / 2 630 / 2 800 / 2 800 / 2
A B
C
F
D
E
L
K
RKW 1000 INOX / 1600 INOX
B A
F
E
D
C
L
K
A B F
D
E
G
C
L
K
RKW 8000 INOX / 9800 INOX
Depending on the size of the unit, a certain number of vibration absorbers are supplied with the unit. These have a height of approx. 30 mm
up to the model size RKW 4500 I, and of approx. 45 mm for model size RKW 8000 I and higher which must be added to the heights above
(measurement C).

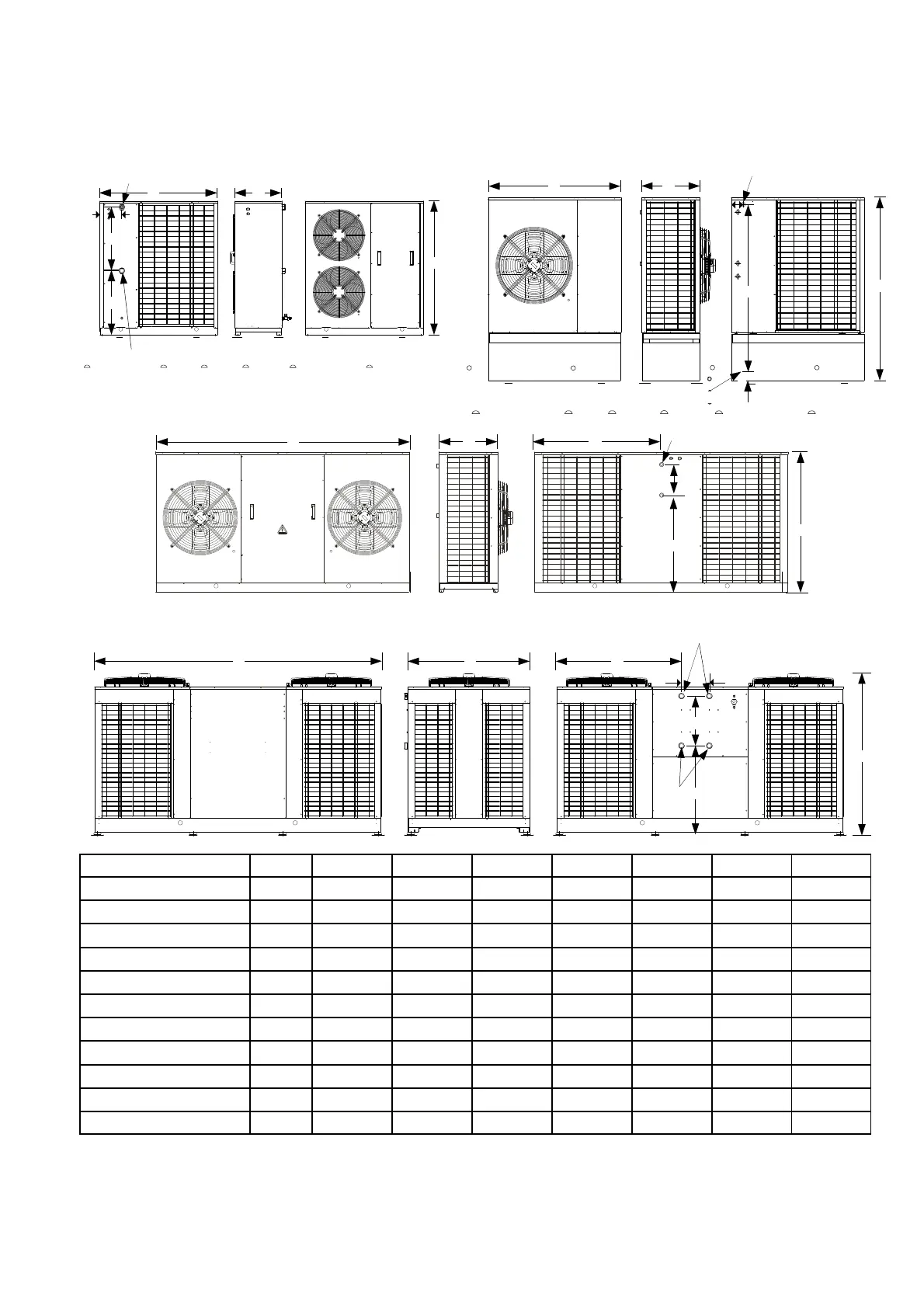

Dimensions
RKW 3600 INOX / 4500 INOX
K
A B F
C
E
D
