Renesas RA Family AIK-RA6M3, v1 User's Manual
R12UZ0143EE0100 Rev.0.1 Page
21
of 25
Oct.15.23

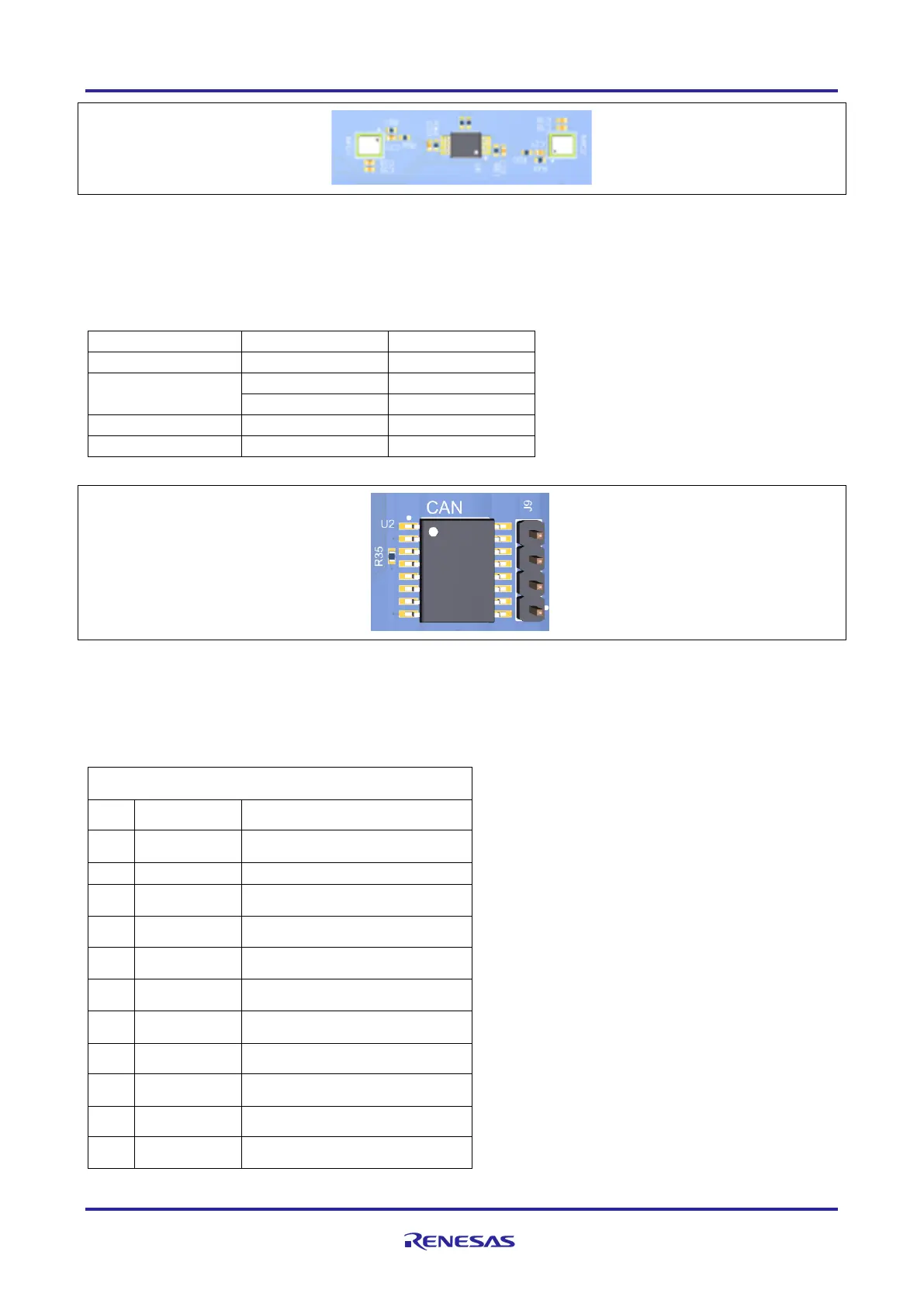

Figure 19. MEMS MICs
5.3.3 CAN/CAN-FD
At J9 we have the Controller Area Network bus interface (CAN).
Table 16. CAN Port Assignments
Pin
Description
Signal/Bus
1
VSS
+3.3V
2
CRX
P511
CTX
P512
3
DE
P310
4
GND
GND
Figure 20. CAN Connector
5.3.4 Camera Module Socket
Near the center of the board A 20-pin connector is provided at J6 for the Camera Module Socket connector
interface.
Table 17. Camera Module Socket
Camera Module Socket AIK-RA6M3
Pin
Description
Signal/Bus
1
GND
GND
2
VCC
+3.3V
3
SCL
P400
4
SDA
P401
5
HSYNC
P409
6
VSYNC
P402
7
PCLK
P408
8
XCLK
P708
9
D7
P403
10
D6
P404
11
D5
P415
