ERVEV130, EV200, AND EV300
9
1.800.627.4499 INSTALLATION, OPERATION AND MAINTENANCE MANUAL RENEWAIRE.COM
INSTALLATION
www.renewaire.com (800) 627- 4499 support@renewaire.com
www.renewaire.com (800) 627- 4499 support@renewaire.com
www.renewaire.com (800) 627- 4499 support@renewaire.com
www.renewaire.com (800) 627- 4499 support@renewaire.com
F2
F4
F3
F5
EA Exhaust Air
OA Outside Air
RA Room Air
SA Supply Air
FA Fresh Air
Separate Room Air Pick-up -
Fresh Air to Furnace Return Air Trunkline
Furnace Return Air Back into Return Air
Separate Air and Fresh Air Supply
Furnace Return Air Back into Supply Air
Note: ERV blower may be operated separate from furnace blower.
Note: ERV blower may be operated separate from furnace blower.
Note: ERV blower may be operated separate from furnace blower.
Note: The furnace blower must be operated any time the ERV is operated. Use furnace
fan “on” continuous low speed or optional FM control to cycle furnace fan on ERV.
APPLICATIONS

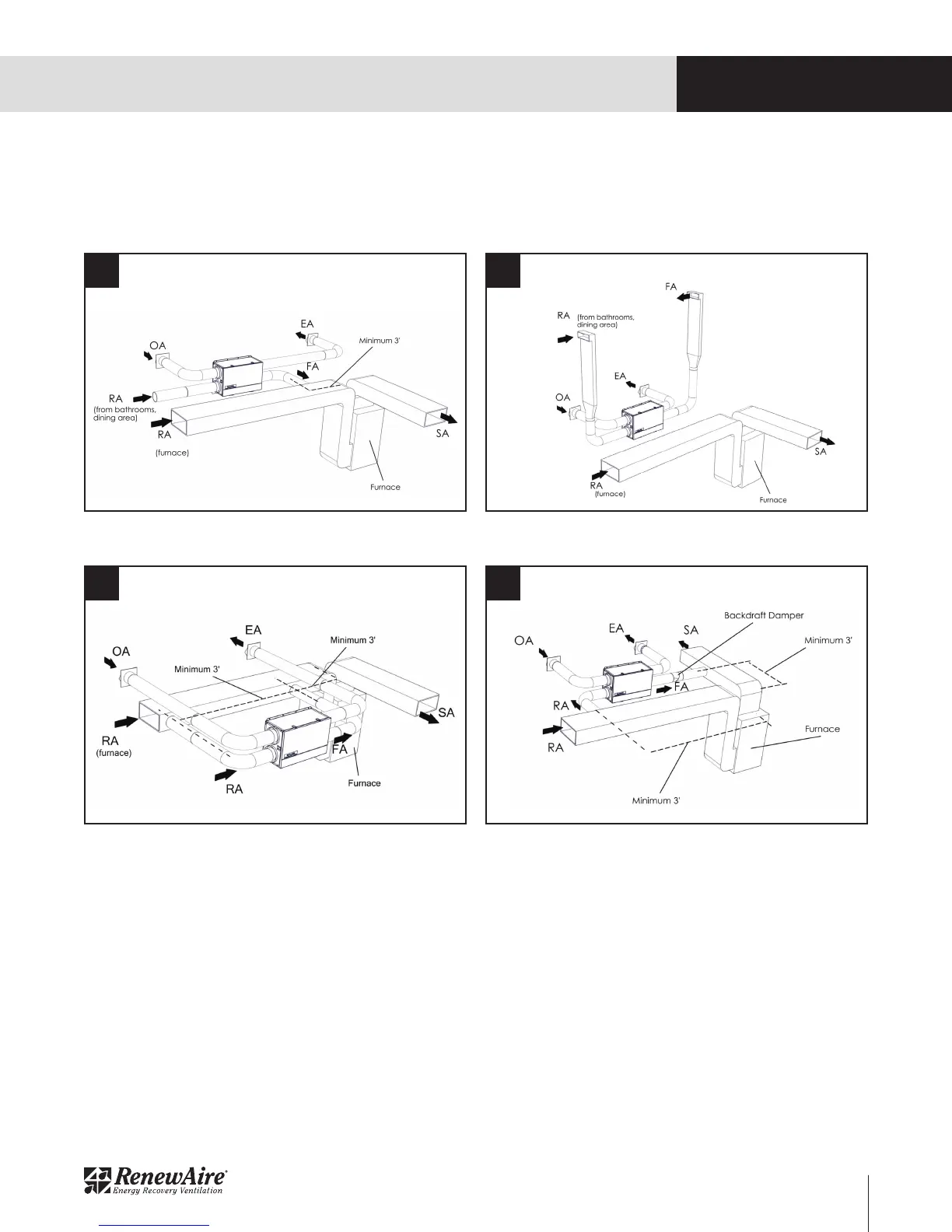

See figures F2-F5 for examples of some common installation approaches (EV130 shown).
PLANNING
YOUR INSTALLATION
