50 W
6 W

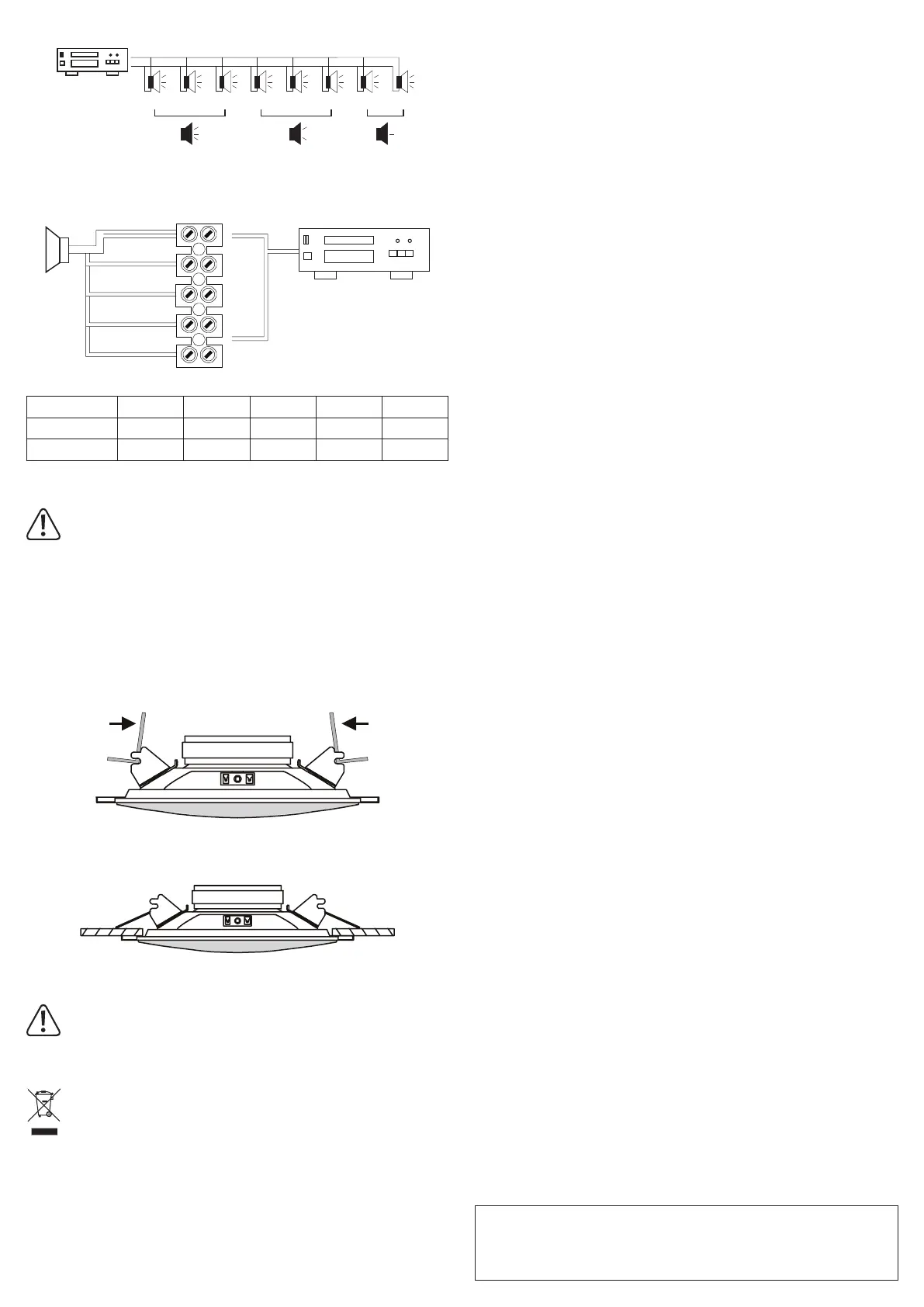

28,6 = 6 + 6 + 6 + 3 + 3 + 3 + 0,8 + 0,8
100V
COM
6 W 6 W 3 W 3 W 3 W 0,8 W 0,8 W
• Connect the positive speaker cable to the respective terminal screw and the negative speak-
er cable to the black terminal screw of the transformer.
black (-)
red (+)
blue (+)
yellow (+)
brown (+)
(-)
(+)
+
-
Consumption 6 W 3 W 1.6 W 0.8 W Common
Impedance 1633 Ohm 3267 Ohm 6125 Ohm 12250 Ohm ---
Cable colour red blue yellow brown black
Installation
Do not install your ELA ush mount speaker near screens such as TV sets or com-
puter monitors. The magnetic eld from the loudspeaker might distort the image on
such devices.
Make sure that the area for the installation can support the weight of the loudspeaker.
The loudspeaker must to be securely mounted to prevent it from falling and, thus, to
avoid the risk of injuries.
• Make sure that the place of installation has the necessary mounting depth (see Technical
Data).
• Saw out the opening for the assembly (for diameter see Technical Data).
• Bend the three holding clips to the top as far as they go so that the speaker ts into the
mounting aperture.
• Then insert the speaker into the assembly opening. The holding clips automatically fold down
and secure the loudspeaker in the opening.
Care and cleaning
Do not use abrasive cleaning agents, cleaning alcohol or other chemical solutions
since these could damage the housing or even impair operation.
Use a dry, lint-free cloth to clean the product.
Disposal
Electronic devices are recyclable material and do not belong in the household
waste. Dispose of the unserviceable product in accordance with the relevant statu-
tory regulations.
Technical data
Impedance Hi-Fi operation .......................... 8 Ohm
Load capacity in Hi-Fi mode (RMS/max.) .... 20/40 W
Power stages 100 V-ELA operation .............0.8 / 1.6 / 3 / 6 W
Impedance 100 V-ELA operation .................12250 / 6125 / 3267 / 1633 Ohm
Frequency range ......................................... 80-21000 Hz
Max. acoustic pressure ................................ 90 dB
Mounting diameter ....................................... 150 mm
Installation depth ......................................... 48 mm
Strength of the mounting surface ................ <20 mm
