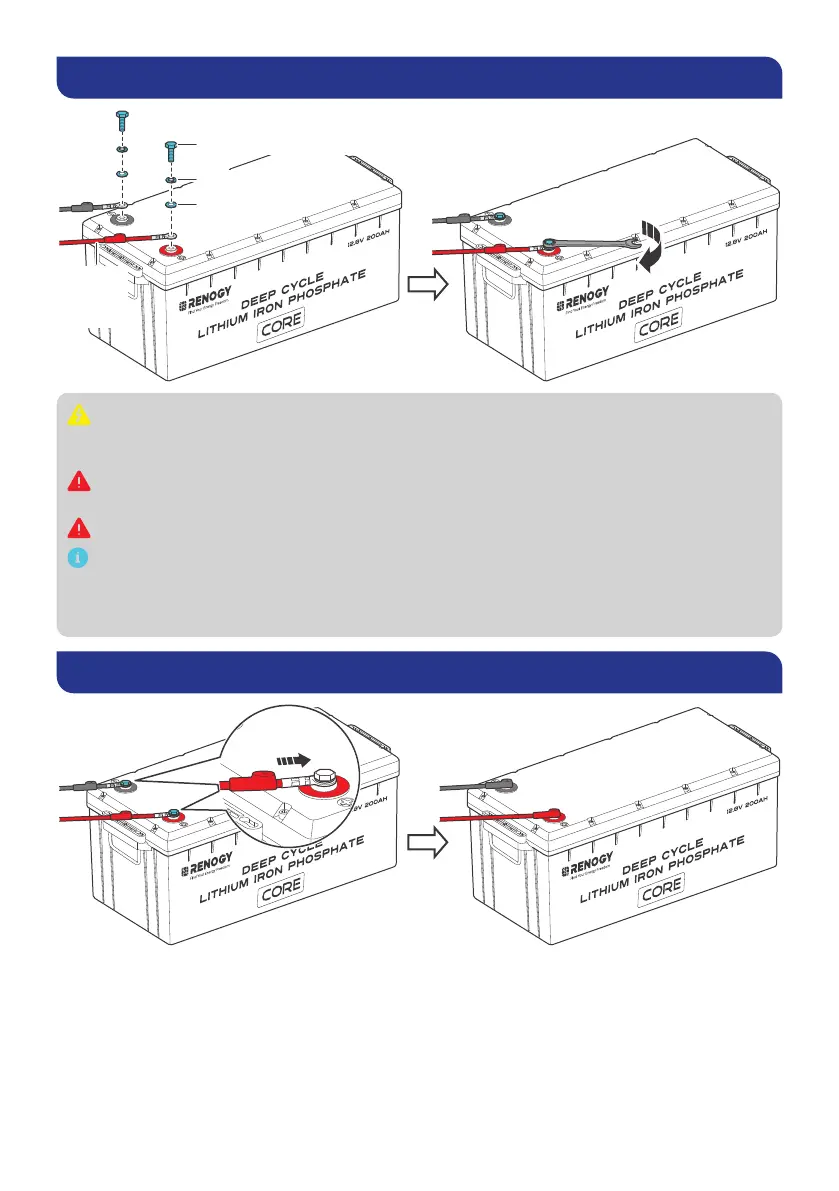

Step 6. Install Battery Terminals
10 N·m
Battery
Adapter
Cable
Spring Washer
Long Terminal Bolts
Flat Washer
Ensure the cable lug and the top surface of the terminal are in contact, and place the washers on top
of the lug. Do not place the washers between the battery terminal and the cable lug to avoid high
resistance and excessive heating.
Avoid short-circuiting the battery terminals to prevent irreversible damage to the system and battery
caused by current bursts.
Verify polarity before wiring to avoid irreversible battery damage due to polarity reversal.
To ensure safe and reliable operation of the system, please follow the manufacturer’s recommended
torque specifications when securing cable connections. Over-tightening can result in terminal
breakage, while loose connections can lead to terminal meltdown or fire. When securing multiple
cable lugs on a single battery terminal, use the included Long Terminal Bolts.
