Renu Electronics FlexiPanels Basicc FP2 Series - FP2070 Port Configurations

FlexiPanels
®
Basic HMI
© Renu Electronics Pvt. Ltd.
Page 13 of 24

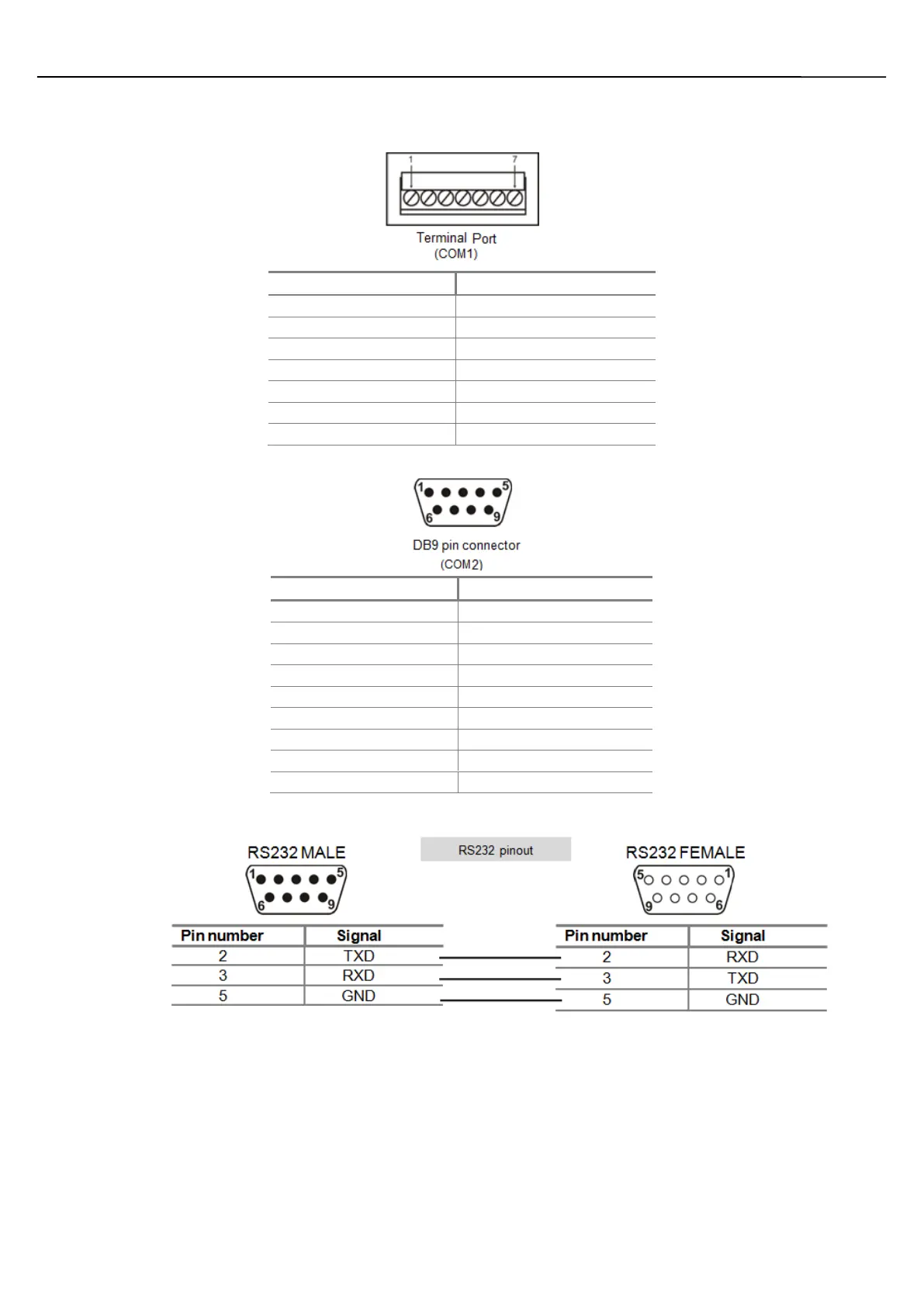

FP2070 series HMI with I/Os has one terminal block port (COM1) and one DB9 female port (COM2). Both
com ports support RS232 / RS485 signal levels.
Pin number
Signal
1
RX-
2
TX-
3
RX+
4
TX+
5
GND
6
RXD
7
TXD
Pin number
Signal
1
TX+(RS485)
2
TXD(RS232)
3
RXD(RS232)
4
RX+(RS485)
5
GN
6
NC
7
NC
8
TX-(RS485)
9
RX-(RS485)
