Communication Interfaces
This section of the manual gives detail information regarding various communication interfaces supported by
FP4 series products, including communication interfaces between FP4 and other RENU or any third-party
device, interfaces for programming and monitoring.

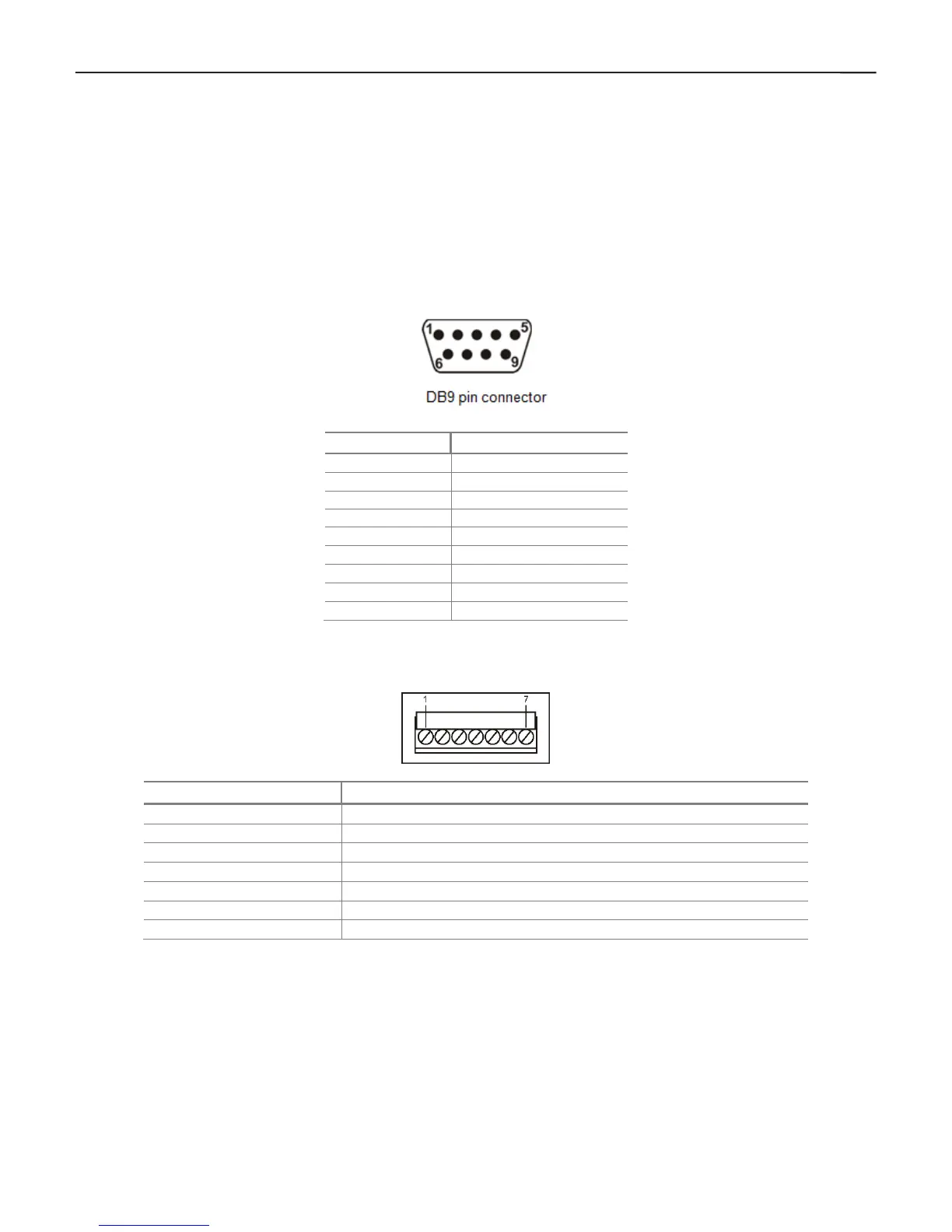

RS232 / RS422 / RS485 Port
FP4 products support DB9 female port for RS232 / RS422 / RS485 communication. 4.3” and 7” models
support one DB9 female port and 10.1”, 12.1” and 15” models support two DB9 female ports.
Pin number
Signal
1
TX+(RS422/RS485)
2
TXD(RS232)
3
RXD(RS232)
4
RX+(RS422/RS485)
5
GND
6
NC
7
NC
8
TX-(RS422/RS485)
9
RX-(RS422/RS485)
7” model support one terminal block port (COM 1).
Pin number
Signal
1
RX-
2
TX-
3
RX+
4
TX+
5
GND
6
RXD
7
TXD
