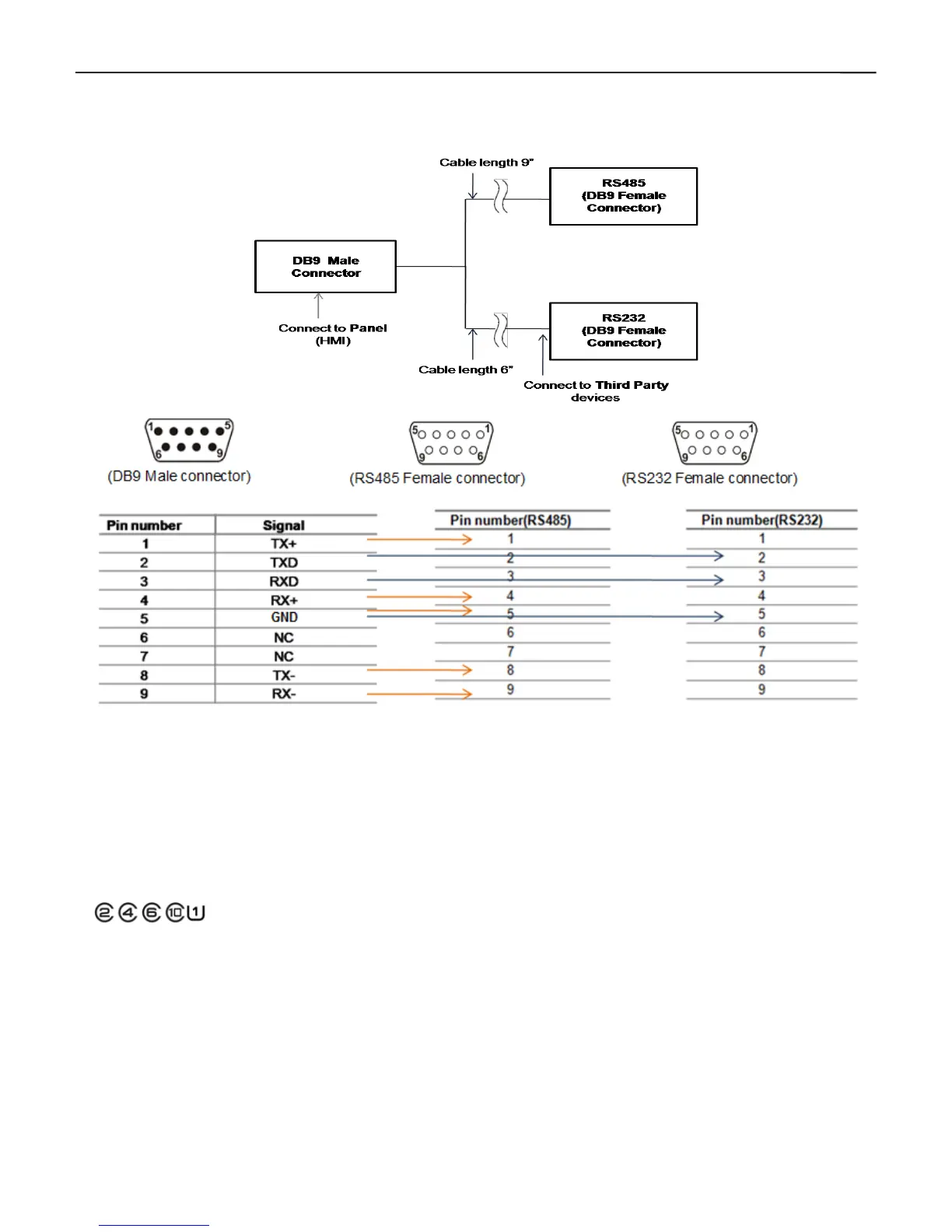

Y Type Cable
Special “Y” cable for FP unit (two communication levels on one port).
SD Card Slot
Ethernet models of FP4 products support one SD card slot. SD card can be used as external memory for
data logging and transferring user application or firmware to the unit. MicroSD HC card with capacity between
4GB to 32GB is supported.
Following speed classes are supported:
