Reolink Argus PT Quick Start Guide

English English9 10

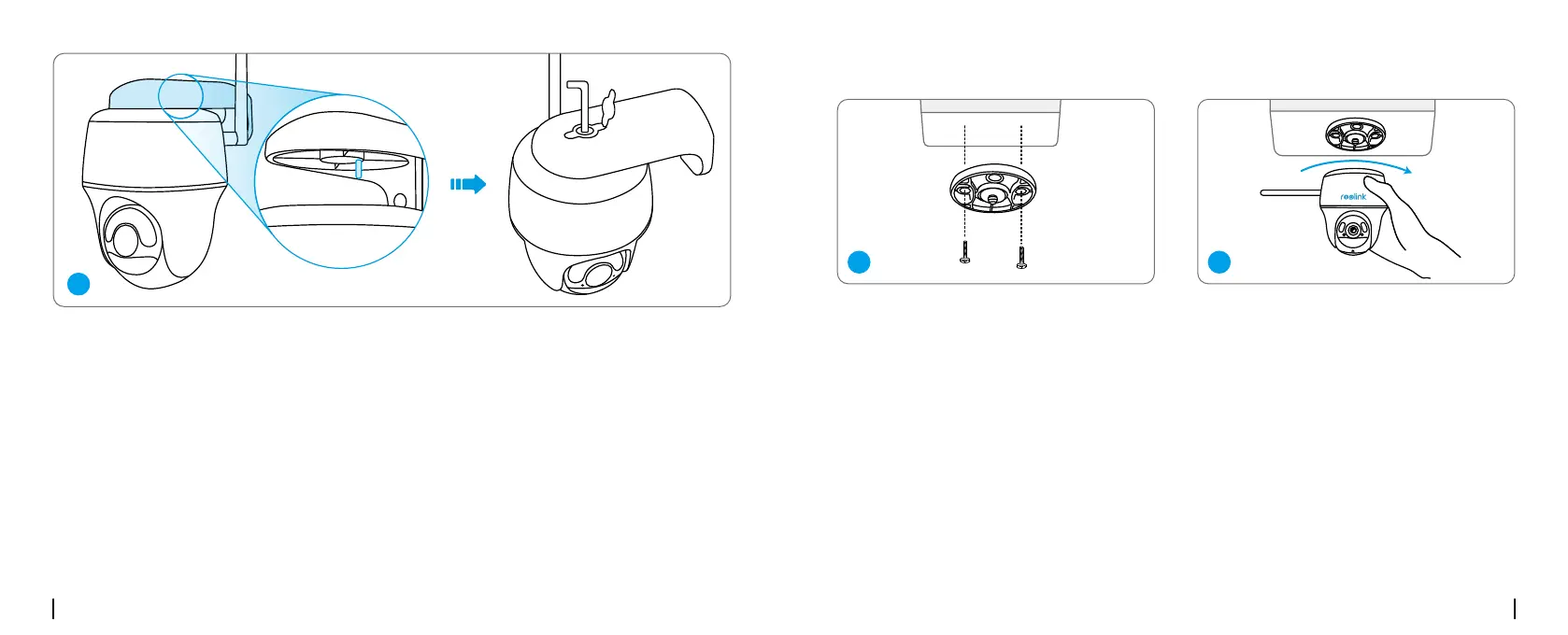

Mount the Camera to Ceiling
Install the mount base to
the ceiling. Align the camera with the mount base and turn the camera unit
clockwise to lock it in position.
1 2
Align the white hole on the camera top with the white hollow screw on the bracket. Use a wrench
and a hex head screw provided to secure the camera into place. Then cover the rubber plug.
3

Reolink Argus PT Specifications

General

Type	IP security camera
Antenna type	External
Remote viewing	Yes
Antennas quantity	1
Placement supported	Indoor
Connectivity technology	Wireless
Bluetooth	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Sensor type	CMOS
Digital zoom	6 x
Total megapixels	- MP
Maximum resolution	- pixels
Supported video modes	1080p
Video compression formats	H.264
Cables included	Micro-USB
Pan range	0 - 355 °
Tilt angle range	0 - 140 °
Minimum illumination	- lx
Night vision distance	10 m
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Alert notification type	E-mail
Motion sensor technology	Passive infrared (PIR) sensor
DC output current	2 A
DC output voltage	5
Power source type	Battery, DC
Operating temperature (T-T)	-10 - 55 °C
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP65

Weight and Dimensions

Height	112 mm
Weight	470 g
Diameter	98 mm
