Reolink Argus PT User Manual

Reolink Wireless Battery-powered Camera
55
Tips for Improving Detection Alarms
When the camera failed to detect some motion, below tips can help improve the
motion detection accuracy.
1. Adjust the sensitivity level to high.

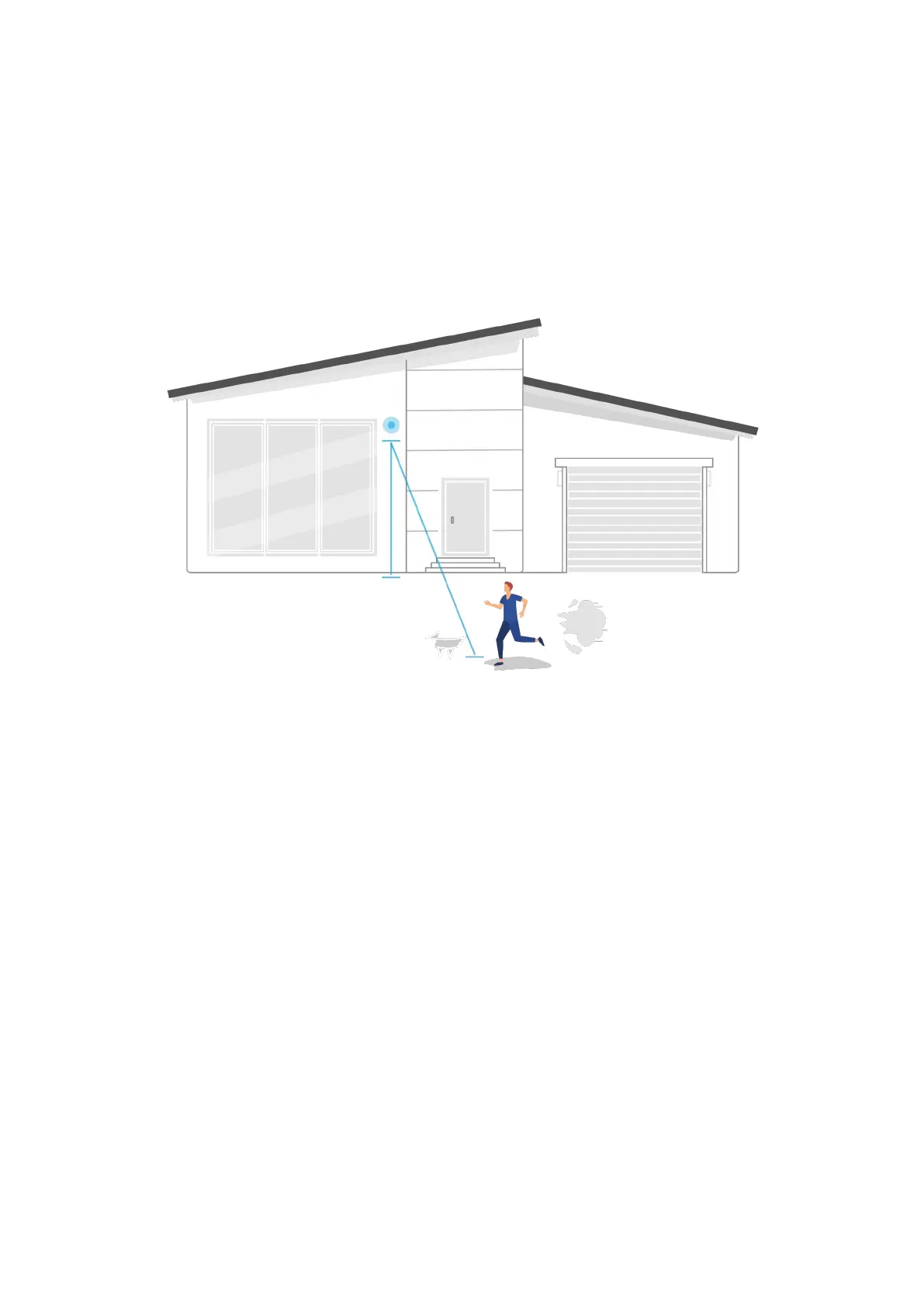

2. Adjust the installation angel of the camera in the direction crossing the
possible intruder instead of facing him/her so that it can detect motion more
accurately.
3. Adjust the installation height, it’s suggested to mount camera 2 to 3 meters
from the ground. Mount the camera too low or too high both will cause it hard
to detect alarm.
4. Ensure the detecting target is within the detection range of the PIR sensor.
Ideal monitoring range is from 7ft to 33ft.
Mounting Height:
2-3 Meters
PIR Detecting Distance:

Reolink Argus PT Specifications

General

Type	IP security camera
Antenna type	External
Remote viewing	Yes
Antennas quantity	1
Placement supported	Indoor
Connectivity technology	Wireless
Bluetooth	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Sensor type	CMOS
Digital zoom	6 x
Total megapixels	- MP
Maximum resolution	- pixels
Supported video modes	1080p
Video compression formats	H.264
Cables included	Micro-USB
Pan range	0 - 355 °
Tilt angle range	0 - 140 °
Minimum illumination	- lx
Night vision distance	10 m
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Alert notification type	E-mail
Motion sensor technology	Passive infrared (PIR) sensor
DC output current	2 A
DC output voltage	5
Power source type	Battery, DC
Operating temperature (T-T)	-10 - 55 °C
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP65

Weight and Dimensions

Height	112 mm
Weight	470 g
Diameter	98 mm
