Reolink B800 User Manual

6English
5 English
Step 1. Plug the camera into the POE port of the Reolink POE NVR by an
Ethernert cable as shown below.
Step 2. Set up the camera via NVR platform. Click on the live view screen
and go to setup menu to configure the camera.
NOTE: The add-on camera can ONLY work with Reolink POE NVR. It is
not standalone camera and it cannot work with other third-party software.
NOTE:
• Dierent types of cameras are introduced in this section. Please check
out the camera included in the package and check out the details from
the correpsonding introduction above.
• The actual appearance and components may vary with dierent
model of product.

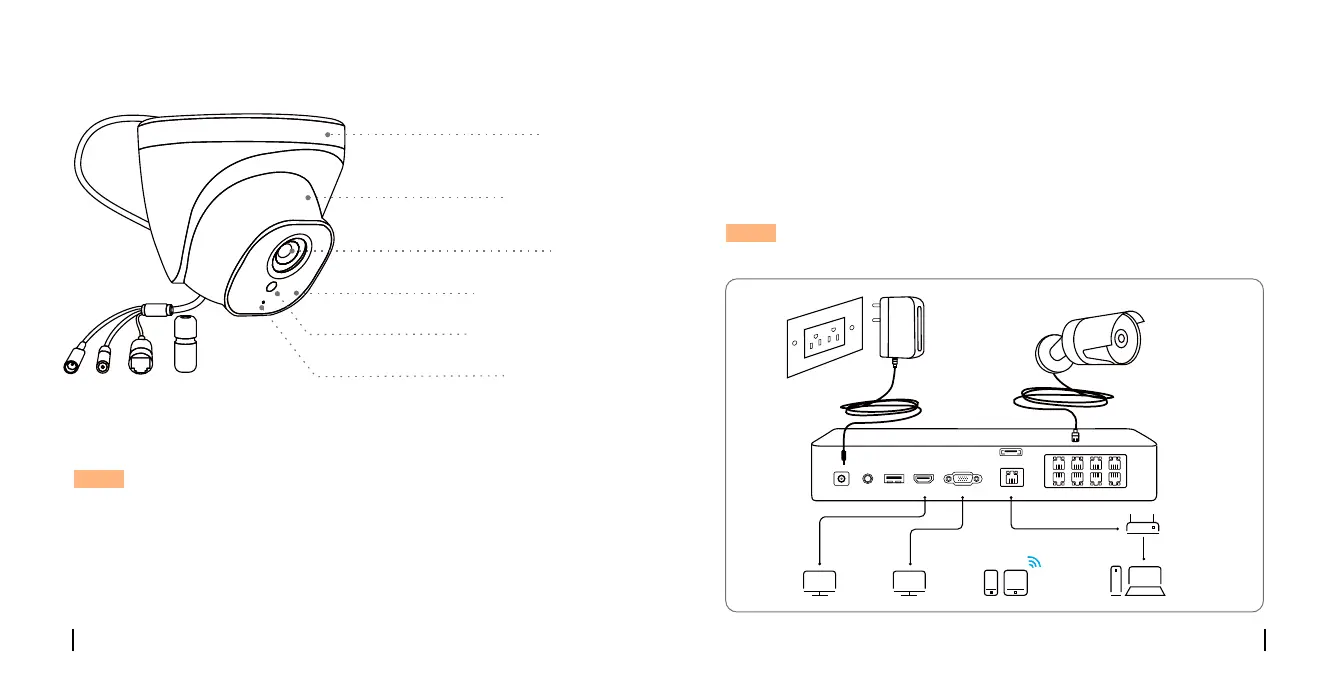

Set Up the Camera
PoE NVR
220V 60Hz /
110V/50Hz
Camera
Router
HD TV
(HDMI)
Monitor
(VGA)
Phone/Pad
(ios/Android) PC
Lens
Metal Case
Mount
Infrared Lights
Daylight Sensor
Built-in Mic
DC48V AUDIO
OUT
USB HDMI VGA LAN
eSATA
1
2
3 5 7
4 6 8

Reolink B800 Specifications

General

Type	IP security camera
Day/night mode	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Bullet
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Ethernet LAN (RJ-45) ports	1
Sensor type	CMOS
Optical sensor size	1/2.8 \
Effective sensor resolution (thermal module)	3840 x 2160 pixels
DC output voltage	12
Power source type	DC
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	SSL, TCP/IP, UDP, UPNP, NTP, DHCP, DNS, DDNS
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Number of illumination LEDs	18
Total megapixels	8 MP
Video formats supported	H.265
Noise reduction technology	3D noise reduction
Focus adjustment	2.0
Fixed focal length	4 mm
Minimum illumination	0 lx

Weight and Dimensions

Length	192 mm
Weight	485 g
Diameter	66 mm
