Reolink D340P User Manual

English English9 10
Install the Doorbell
Step 1
Putthemountingholetemplateonthewallbythedooranddrillholesas
shown.

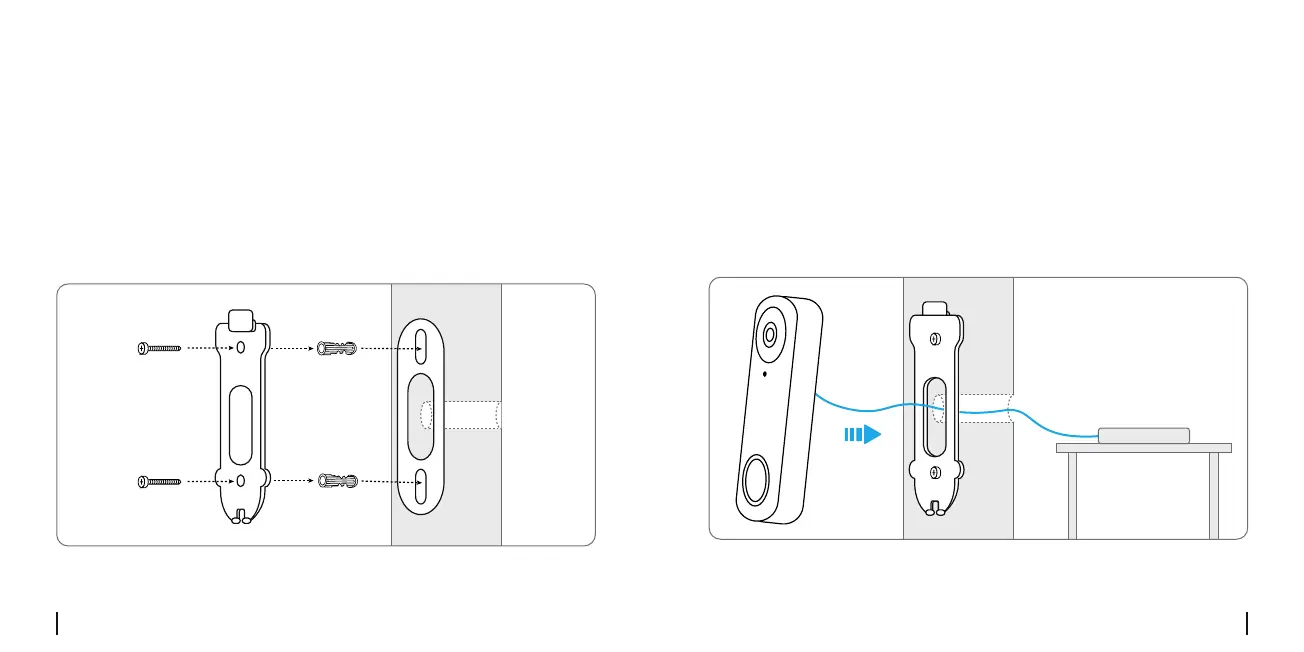

Step 2
Install the mounting plate using the long screws provided through the
two holes.
For the PoE Version:
POE Micro SD
RST
LAN Micro SD
RST
Devices
Cloud
You haven't added any device. Please click
the"+"button in the top right corner to add
1
2
1
1
2
2
Step 3
Run the Ethernet cable through the mounting plate and the hole on the
walltoconnectittothedoorbell,thenattachthedoorbelltotheplate.
Step 4
ThedoorbellispoweredbyconnectingtheotherendoftheEthernet
cable to a PoE device.
POE Micro SD
RST
LAN Micro SD
RST
Devices
Cloud
You haven't added any device. Please click
the"+"button in the top right corner to add
1
2
1
1
2
2
PoE

Reolink D340P Specifications

General

Brand	Reolink
Model	D340P
Category	Intercom System
Language	English
