Reolink RLC-510WA Operational Instruction

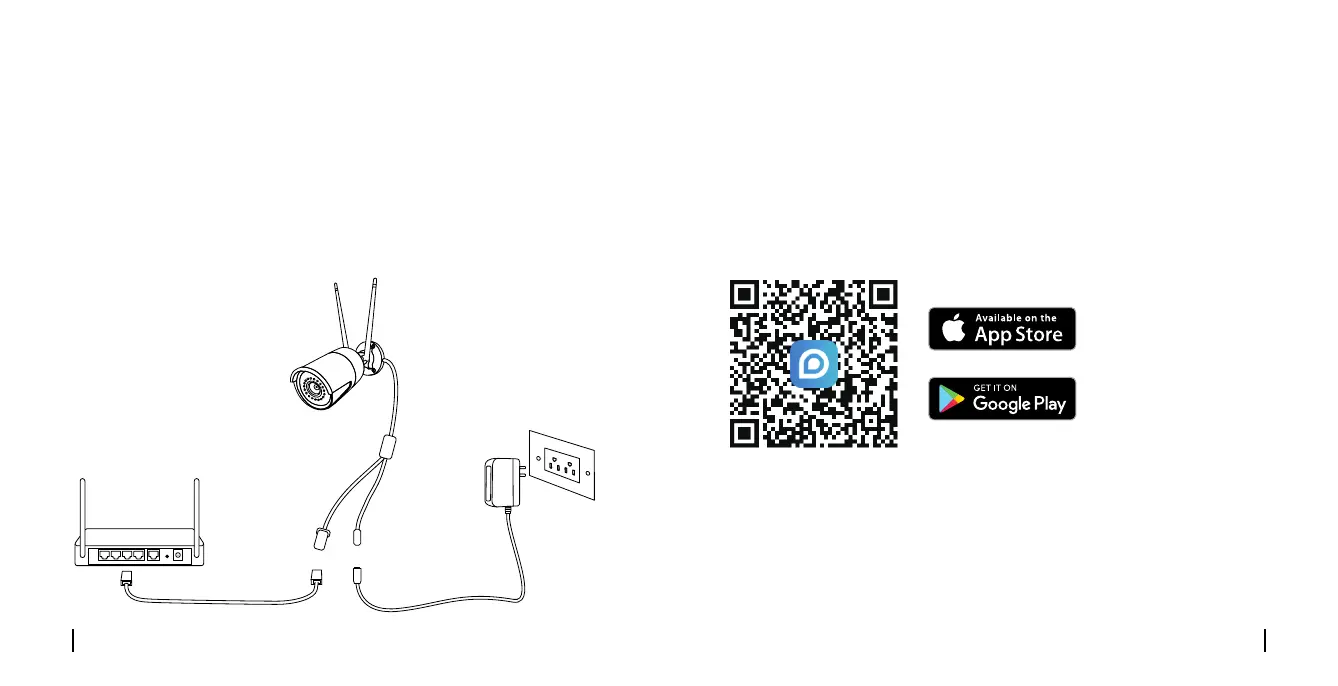

Diagramma di Collegamento
Collegare la telecamera secondo l’istruzione seguente prima della
configurazione iniziale:
1. Collegare la telecamera a una porta LAN sul router con un cavo di
Ethernet.
2. Alimentare la telecamera con un adattatore di alimentazione.
Adattatore
d’Alimentazione
Router
Telecamera IP WiFi
Cavo di
Alimentazione
Cavo di Rete
50Italiano
49 Italiano
• Sullo Smartphone
Scaricare ed avviare l’App Reolink o software Client, e seguire
l’istruzione per finire la configurazione iniziale.
Scansionare per scaricare l’App Reolink.
Configurare la Telecamera
• Sul PC
Per scaricare Client Reolink: Andare su https://reolink.com/it > Assistenza
> App & Client.

Reolink RLC-510WA Specifications

General

Number of cameras	1
Video streaming	Yes
Total megapixels	5 MP
Maximum resolution	2560 x 1920 pixels
Video compression formats	H.264
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Protection features	Waterproof
International Protection (IP) code	IP66
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Bluetooth	No
Number of users	20 user(s)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Mobile operating systems supported	Android, iOS
Fixed focal length	4 mm
Maximum aperture number	2
Sensor type	CMOS
Optical sensor size	1/2.7 \
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Number of illumination LEDs	18
DC output current	1 A
DC output voltage	12
Power source type	DC
Power consumption (max)	12 W

Weight and Dimensions

Length	186 mm
Weight	415 g
Diameter	67 mm
