Reolink RLC-511W Quick Start Guide

Camera Connection
B800/B400/D400 can ONLY work with Reolink POE NVR. these cameras can't work standalone or with
other 3rd party software. You can connect the camera directly to Reolink PoE NVR via Ethernet cable
and view the camera on Reolink App, Reolink Client and HDMI/VGA monitor.
Note:
B400/D400 can work
with Reolink 8 channel
POE NVR RLN8-410 and
16 channel POE NVR
RLN16-410.
B800 can ONLY work
with Reolink 8 channel
POE NVR RLN8-410.
1. Twist it with the wrench to unlock, and adjust the cam (green part)
in any directions.
2. After adjustment, twist it back to lock it.
3. Store the wrench here for later use.
How to Adjust Direction
Only Manual Rotation
1
360°
1
360°
3
2
3
2

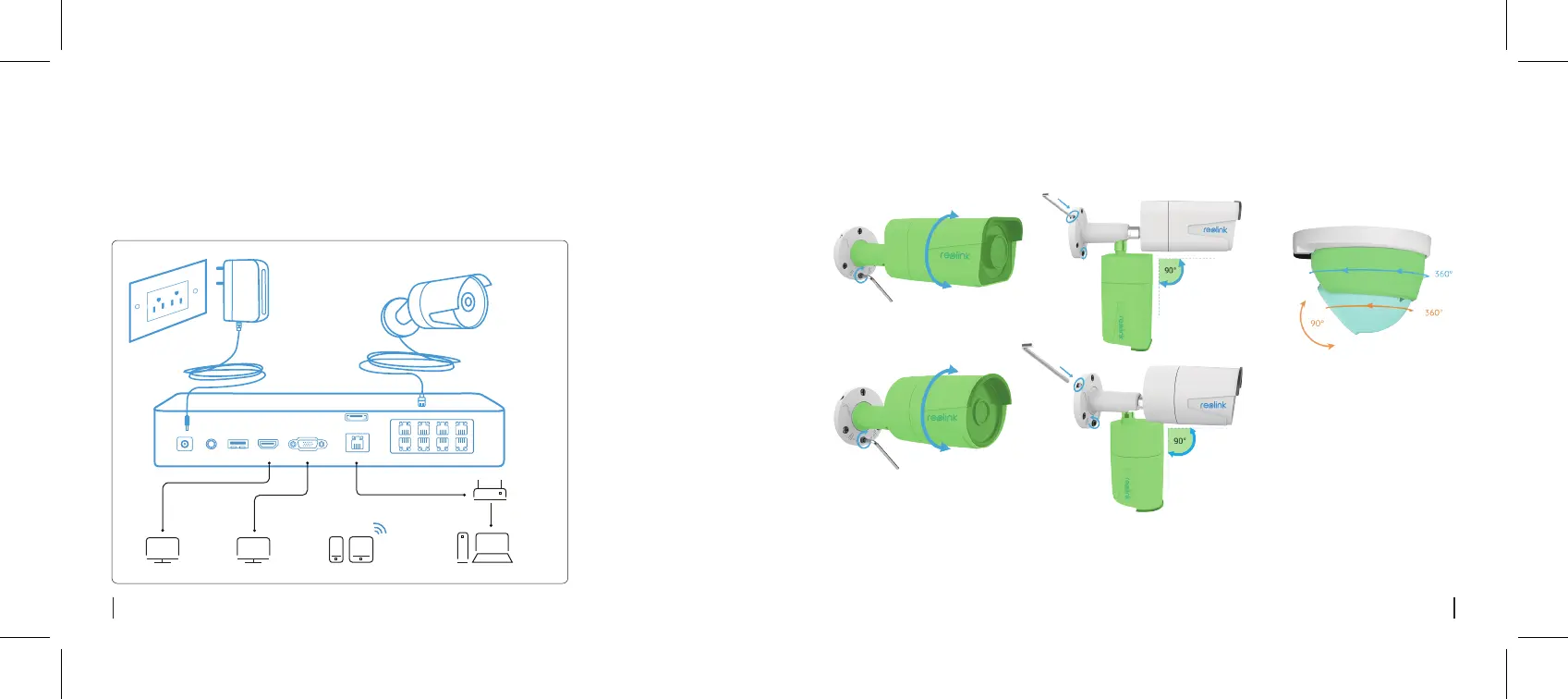

The cable connections are shown as below:
DC48V AUDIO
OUT
USB HDMI VGA LAN
eSATA
1
2
3 5 7
4 6 8
PoE NVR
220V 60Hz /
110V/50Hz
Camera
Router
HD TV
(HDMI)
Monitor
(VGA)
Phone/Pad
(ios/Android) PC
• D400• B800/B400
4 English 5English

Reolink RLC-511W Specifications

General

Type	IP security camera
Antenna type	External
Day/night mode	Yes
Antennas quantity	2
Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Protection features	Waterproof
International Protection (IP) code	IP66
Camera pan control	No
Camera shutter type	Electronic
Minimum illumination	0 lx
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Number of effective pixels (H x V)	2560 x 1920 pixels
Optical zoom	4 x
Number of lenses	-
Focal length range	2.7 - 12 mm
Maximum aperture number	1.6
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Number of illumination LEDs	24
Total megapixels	5 MP
Video compression formats	H.264
Noise reduction technology	3D noise reduction
Supported graphics resolutions	640 x 480 (VGA), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440, 2560 x 1920
Number of users	20 user(s)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Streaming method	Multicast
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Compatible memory cards	MicroSD (TransFlash)
Alert notification type	E-mail, Snapshot alert message, Text alert message
DC output voltage	12
Power source type	DC, PoE
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Mobile operating systems supported	Android, iOS
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	186 mm
Width	67 mm
Weight	750 g
