Reolink RLC-523WA User Manual

English
English
Download and launch the Reolink App or Client software and follow the
onscreen instructions to finish initial setup.
Set up the Camera

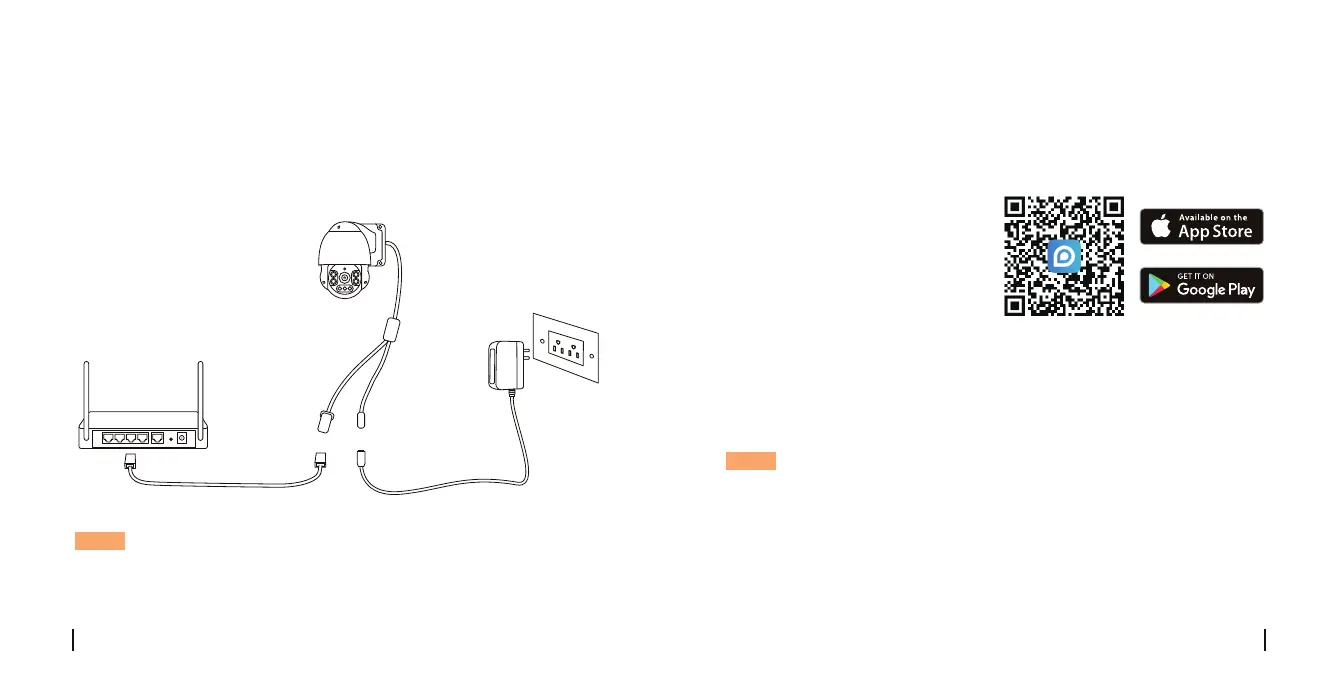

Connection Diagram
Before initial setup, follow the steps below to connect your camera.
1. Connect the camera to a LAN port on your router with an Ethernet cable.
2. Use the power adapter provided to power on the camera.
• On Smartphone
Scan to download the Reolink App.
NOTE:
• If you are connecting the PoE camera to a Reolink PoE NVR, please set
up the camera via the NVR interface.
• If you are setting up a WiFi PTZ camera, you need to follow the
onscreen instructions to finish the WiFi configuration first.
NOTE:
For PoE PTZ Camera, you may also connect the camera to a PoE
Switch/Injector or Reolink PoE NVR. (The PoE Switch/Injector and
Reolink PoE NVR are not included in the package)
Power Adapter
Router
PTZ Camera
Power Cable
Network Cable
5 6

Reolink RLC-523WA Specifications

General

Type	IP security camera
Auto-tracking	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Maximum operating distance	60 m
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Number of users	20 user(s)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
User access level	Administrator, User
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, SSL, TCP / IP, UDP, UDNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P.
Form factor	Dome
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Mobile operating systems supported	Android, iOS
Browser supported	IE, Edge, Chrome, Firefox, Safari
Total megapixels	5 MP
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264
Pan range	0 - 360 °
Pan speed	150 °/sec
Tilt angle range	0 - 90 °
Audio system	2-way
DC output current	2 A
DC output voltage	12
Power source type	DC
Power consumption (typical)	24 W
LED type	IR
Sensor type	CMOS
Optical sensor size	1/2.7 \
Cables included	LAN (RJ-45)
Number of cameras	1
Number of lenses	-
Focal length range	2.7 - 13.5 mm
Maximum aperture number	3.3
Minimum aperture number	1.6
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Width	201 mm
Weight	1800 g
Diameter	136 mm
