Reolink RLC-820A User Manual

Install the Camera
Please follow the steps below to install the camera.

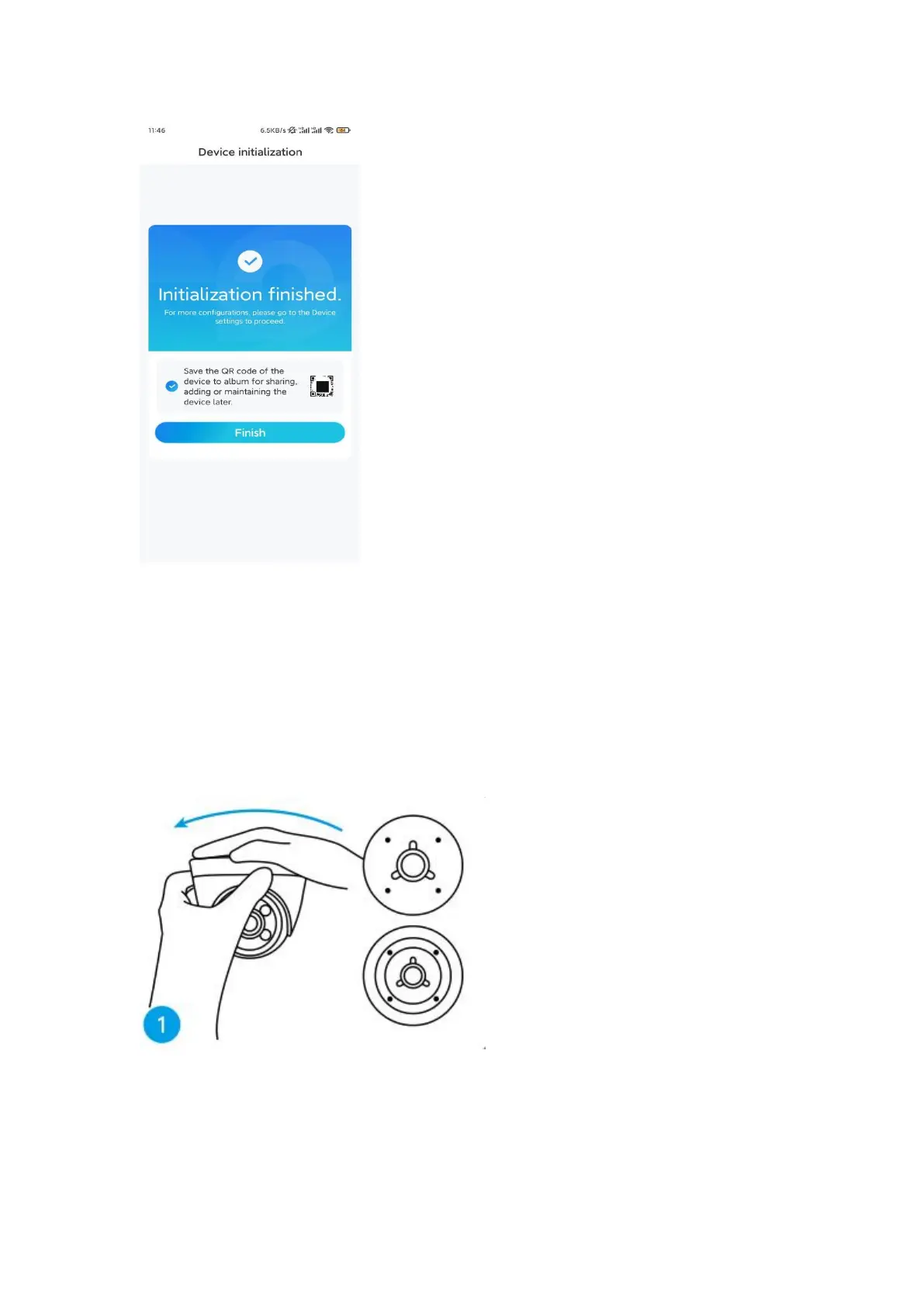

Step 1. Separate the mounting plate from the camera.
You may hold and press on the camera top and turn the plate counterclockwise as
shown below.
Step 2. Install the mounting plate.
Drill holes on the ceiling according to the mounting hole template and screw the
mounting plate firmly.

Reolink RLC-820A Specifications

General

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.49 \
Fixed focal length	4 mm
Maximum aperture number	2
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Number of users	20 user(s)
Networking standards	IEEE 802.3af
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Total megapixels	8 MP
Maximum resolution	3840 x 2160 pixels
Video compression formats	H.265
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Number of illumination LEDs	18
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC output current	1 A
DC output voltage	12, 48
Power source type	DC, PoE
Power consumption (max)	12 W
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired

Weight and Dimensions

Height	93 mm
Weight	467.5 g
Diameter	105 mm
