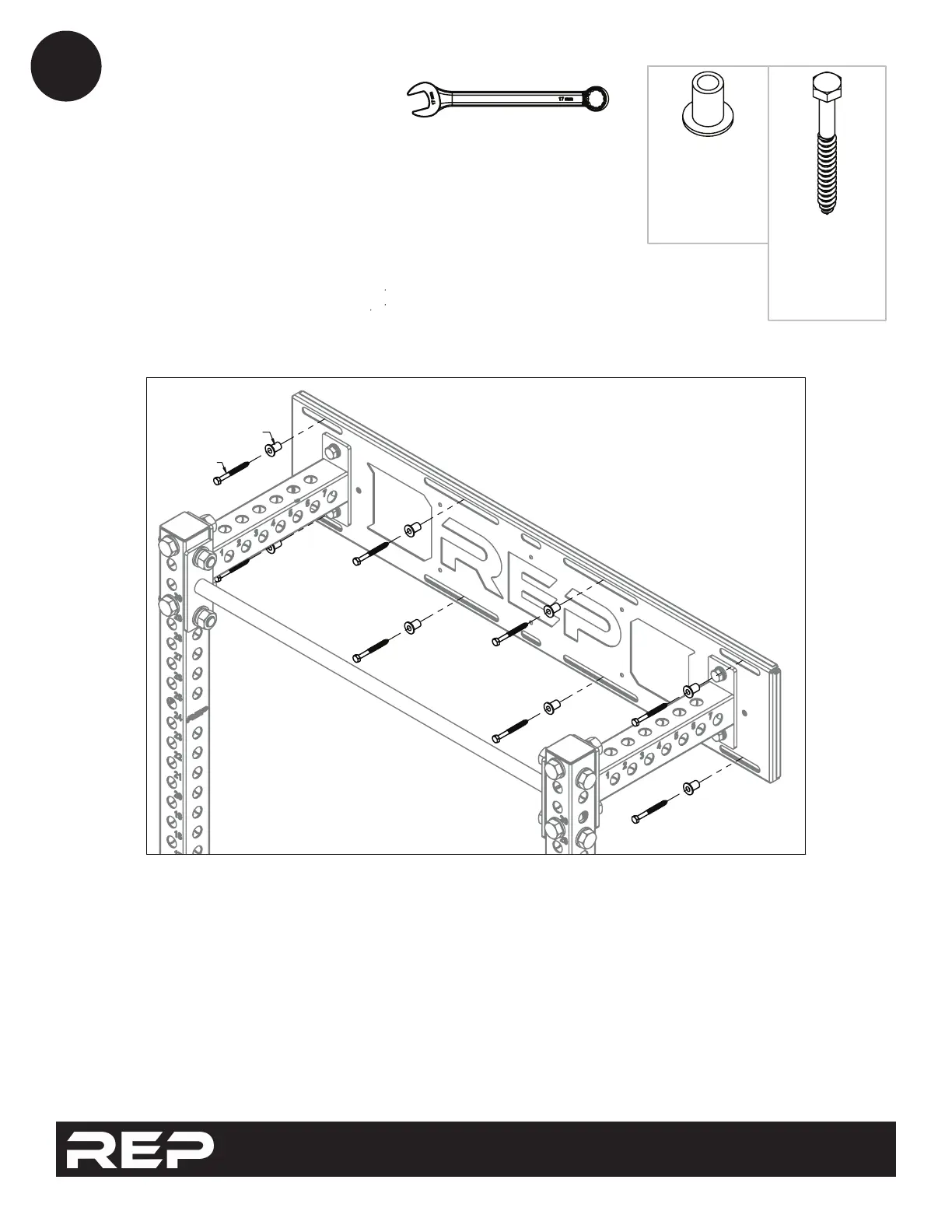

REP 4000 Series - Step 11: Lag Bolt Installation; Installing Lag Bolts with Bushings



11
DO NOT OVER TIGHTEN LAG BOLTS
10-0246
10-0403
16" STUD SPACING SHOWN
17MM
1X NOT INCLUDED
X8 X6
10-0403
16 OD, 11 ID, L26
DRILL BUSHING,
16" STUD
SPACING
24" STUD
SPACING
10-0246
LAG BOLT
M10, L90 ,
X8 X6
16" STUD
SPACING
24" STUD
SPACING
