Resfriar R4 - R3 Model Control Panel Features; R3 Analog Panel Functions

23
• INTERNAL (CABINET) LAMP INTENSITY CONTROL: (If equipped)
Press the internal lamp button 2 during 5 seconds, then the lamp
brightness will vary in 5 levels. Release the button when you get the
best intensity for your convenience. This new selection will be kept in
memory inside the Control Panel, then every time you light the lamp it
will show the same intensity level.
• SLEEP PROGRAMMING: Turn on the fan 7 , then the red led is
continuously on to inform that the fan is in operation but still the sleep
is without programming. Press the sleep button 3 , the led 10 blinks
once to inform that the sleep is programmed for 1 hour. Press again the
same button 3 and the lamp 10 will blink twice showing that the sleep
time is for 2 hours. If you need more time for Sleep, you can program
this function up to 5 blinks (or 5 hours).
If the button 3 is pressed again, the led 10 will stay on to show that
the sleep function is not programmed. To get a new programming, just
follow the steps above mentioned.
Note: If the fan is stopped using the button 6 all the sleep
programming will be automatically o.
• WATER FUNCTION: To on/o the water function (ventilation with
cooling process) press the button 4 . The green led 9 will lights
showing the function is on. If the green led 9 is continuously on, it
means that the water function is in operation, but the injection pump
is not working.
The green led 9 blinking means that the water function is operating
and the injection pump is working too.
Note: When the fan starts, automatically the water function starts
working.

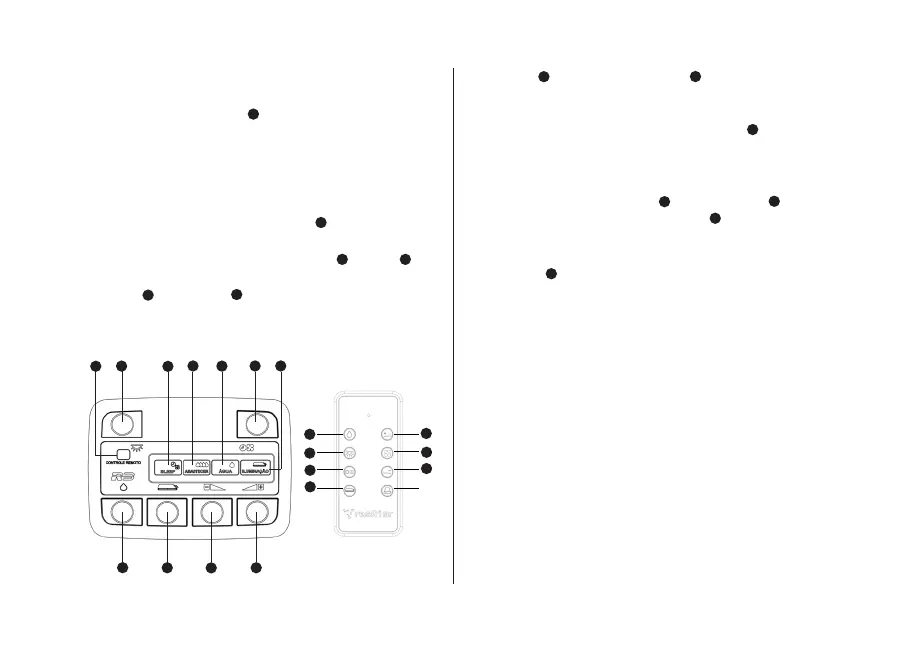

1 - Remote control IR receiver
2 - On/O internal lamp (cabinet)
3 - Sleep programming
4 - On/O water injection
5 - On/O the external placard
6 - O/Decrease the fan speed
7 - On/Increase the fan speed
8 - Lack of water (yellow) signal lamp
9 - Water injection working signal lamp (green)
10 - Fan on and Sleep on signal lamp (red)
11 - External placard on signal lamp
12 - On/o fan (function only in the remote control)
Not
for R3
command
Model R3 (analogical):
5
3
2
4
7
12
6
2
7
103
1
2
10
8
9
3 11
4
5
6
7
3
10
6
4
9
9
9
3
10
Control Panel / Remote Control Functions:
Remote Control
Optional
