• LACK OF WATER: The control panel has a sensor to detect lack of
water inside the tank. When the water level is lower than minimum, the
yellow led starts blinking, informing the user needs to rell the water
tank. After lling it, the water function will automatically be activated.
Note: When the lack of water is detected, the water function will
stop.

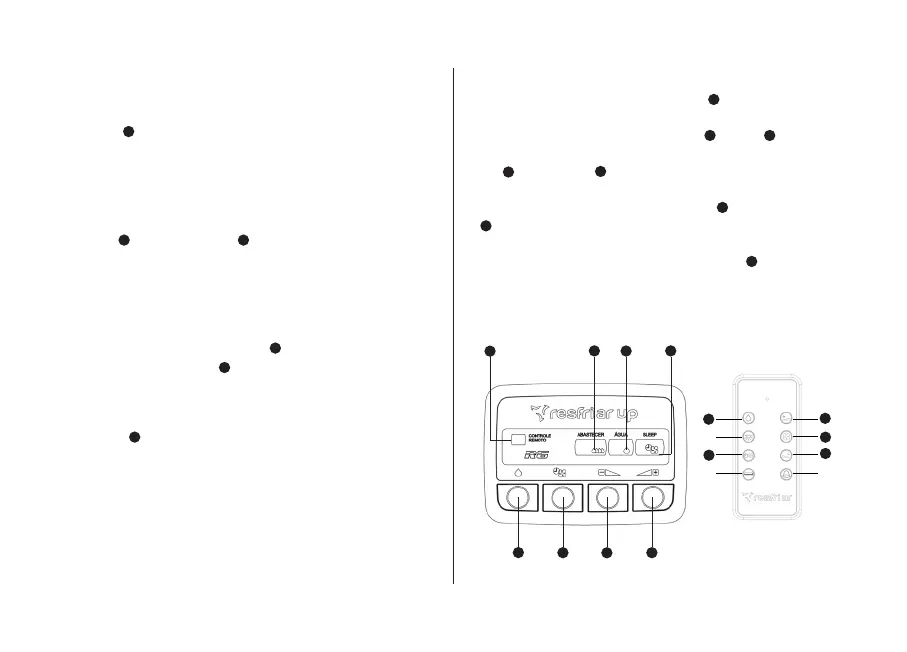

• FAN SPEED: This R3 Control Panel has 10 speeds controlled by the
buttons 6 O/Decrease and 7 On/Increase. The fan is set in the
factory to start at the minimum speed when
pressing the button.
You will note that the fan reaches its maximum or minimum speed
levels when you hear a longer beep coming from the panel.
EXTERNAL LIGHT: Press the button 5 to On/O the external light
in the placard. The blue led 11 lights informing this function is on.
REMOTE CONTROL (OPTIONAL): Except the 5 lamp brightness
levels, the remote control has all f unctions detailed before plus a
command for turning On/O t he fan.
Note: If all the functions are not controlled by the Remote
Control, verify the battery charge. When replacing, use the
CR.2025 battery model.
8
6 7
5
11
12
• SLEEP PROGRAMMING: Turn on the fan , then the red led is
continuously on to inform that the fan is in operation but still the sleep is
without programming. Press the sleep button , the led blinks once
to inform that the sleep is programmed for 1 hour. Press again the same
button and the lamp will blink twice showing that the sleep time
is for 2 hours. If you need more time for Sleep, you can program this
function up to 5 blinks (or 5 hours). If the button is pressed again, the
led will stay on to show that the sleep function is not programmed. To
get a new programming, just follow the steps above mentioned.
Note: If the fan is stopped using the button all the sleep
programming will be automatically o.
Remote Control
Optional
Not for
R6 command
Model R6 (analogical):
6
2
5
8
9
7
1
2
3
4
5
6
7
8
Not for
R6 command
Not for
R6 command
8
6
7
4
6
4
6
4
