Rear panel

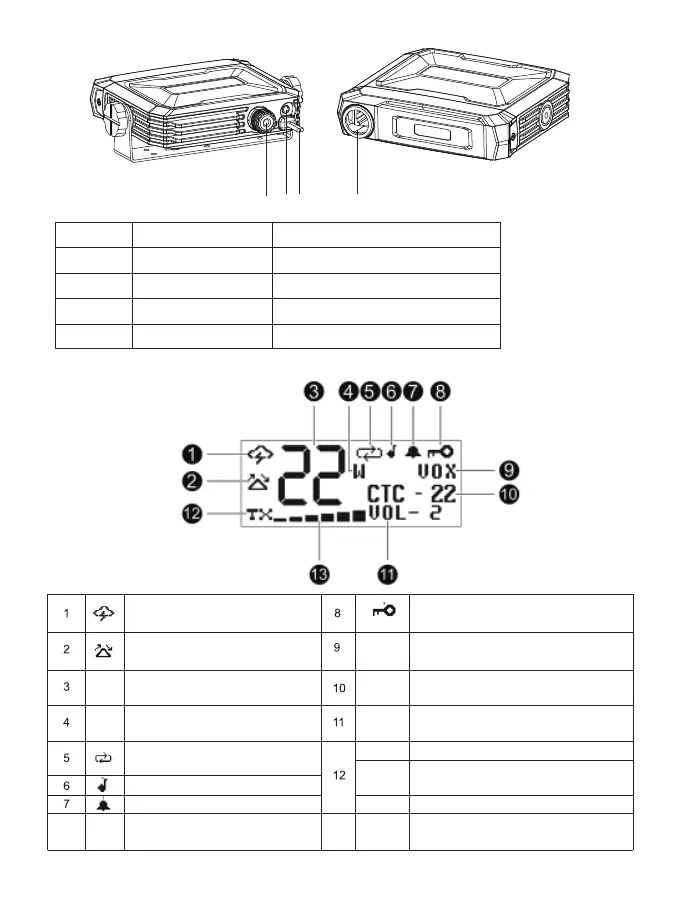

LCD Display
04
Indicates when the radio is in the
Weather Band mode
Shows the selected transmit/receive
repeater channel.
Shows the selected transmit/receive
channel.
Shows the selected channel
bandwidth is Wide/Narrow.
Indicates the “auto-scan”
function is active.
Indicates roger beep is on
Indicates key tone is on
Indicates KEY LOCK mode is on.
Indicates VOX is on.
Indicates the selected CTCSS/DCS
number
Volume level indicator
Indicates the radio is transmitting
Indicates the radio is receiving a
transmission
Show high and low power during standby
Indicates the strength of the current
transmit or receive signal.
XX
W/N
VOX
CTC-XX
VOL-2
RX
HI/LO
TX
NO.
1
2
3
4
Key
Antenna connector
Ex-Speaker Jack
Power cable
Microphone Jack
Functions
Connect a 50 ohm antenna
Connect external speaker
Connect a standard DC power cable
Connect Handheld Speaker Mic
Field
strength
13
① ③ ④②
