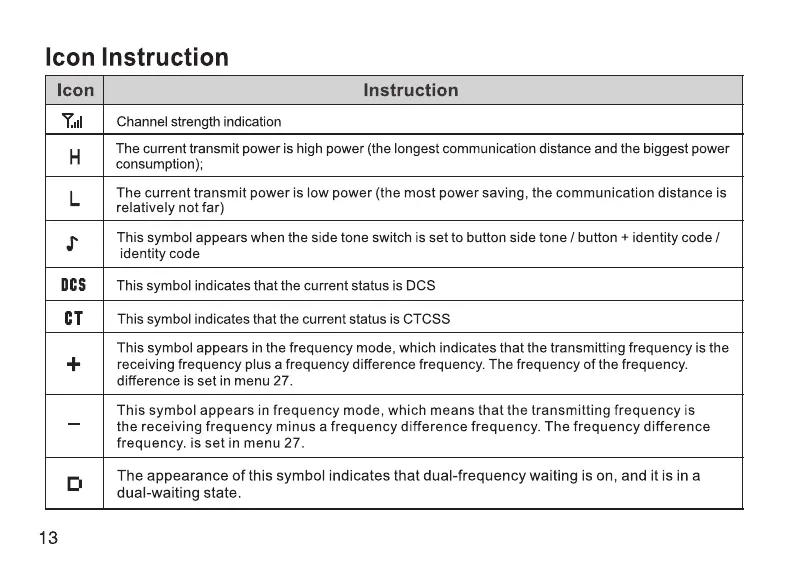

Icon Instruction
Icon Instruction
Tull Channel strength indication
H The current transmit power is high power (the longest communication distance and the biggest power
consumption);
L The current transmit power is low power (the most power saving, the communication distance is
relatively not far)
yt This symbol appears when the side tone switch is set to button side tone / button + identity code /
identity code
oes This symbol indicates that the current status is DCS
CT This symbol indicates that the current status is CTCSS
This symbol appears in the frequency mode, which indicates that the transmitting frequency is the
+ receiving frequency plus a frequency difference frequency. The frequency of the frequency.
difference is set in menu 27.
This symbol appears in frequency mode, which means that the transmitting frequency is
- the receiving frequency minus a frequency difference frequency. The frequency difference
frequency. is set in menu 27.
o The appearance of this symbol indicates that dual-frequency waiting is on, and itis ina
dual-waiting state.
13
Icon Instruction
wf This symbol appears when the buttonboard is locked; press the [*] button to unlock and the symbol.
disappears
y Indicates that the sound emission function is activated. When the sound pressure level of the
microphone reaches the set value, the emission starts.
GM | Remote kill indication
F Reverse the receiving and transmitting frequency under channel mode and frequncy mode
rH It appears when the channel is working in narrowband mode
Display the current remaining power of the battery; [cma] ) Battery full charge indication; [<8] <4] ]
¢m™] | Battery remaining amount reminder; [¢_]] The battery is nearly empty, the icon frame will flash,
and the radio is prohibited from transmitting at this time
Arabic | Current channel number
NO.
Arabic | Current channel number
NO.
WA | Current working channel
Mable Current working frequency
14
