Retevis RT76P - DTMF Editor; Editing ID Codes

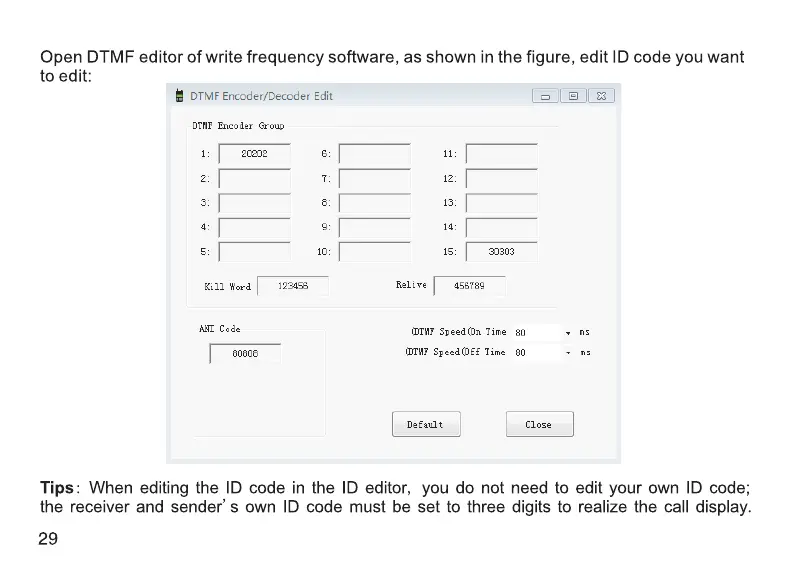

Open DTMF editor of write frequency software, as shown in the figure, edit ID code you want
to edit:
& DTMF Encoder/Decoder Edit o]| 8 | &
DIMF Encoder Group
1: | 20202 8: | i: |
2: | real 12: |
3: 8: | 13: |
4: 3 14:
5: | 10: | is: | 30308
Kill ford 123456 Relive 456789
ANI Code (TWF Speed(@n Time g0 ~ ms
80808 TMF Speed @£f Time 80 ~ ms
Default | | Close |
Tips: When editing the ID code in the ID editor, you do not need to edit your own ID code;
the receiver and sender’ s own ID code must be set to three digits to realize the call display.
29
@ PTT-ID
PTT-ID refers to sending DTMF code edited in advance when PTT button is pressed for
transmission. There are three modes of PTT-ID: code sending when PTT button is pressed, code
sending when PTT button is released, code sending when PTT button is pressed or released.
@ Alarm Mode
In case of emergency, the alarm function can be turn on to remind the nearby personnel to be
vigilant. Long press 2 seconds to define side button 1 to turn on the alarm function, repeat the
operation or press PTT button to turn off the alarm. There are three alarm modes: sending alarm
tone, sending alarm code and on-site alarm.
1. Send alarm tone: send alarm tone at the same time as the local alarm
2. Send alarm code: send the current stored ID code at the same time of alarm
3. On site alarm means that only the local machine sends out an alarm tone
@ Tail
Tail means that the speaker is mute after the end of the transmission; the closing Tail means that the
other speaker makes a "click" at the moment of the end of the transmission
@ OPENMGS
It has three modes: preset icon, preset information and battery voltage. Preset icon and preset
information can be edited by frequency writing software.
@ Remote Stun
At the same time of transmission, the signaling code is sent, and the other party is remote stun after
30
