Disassembly, Assembly and Repair Instructions
18

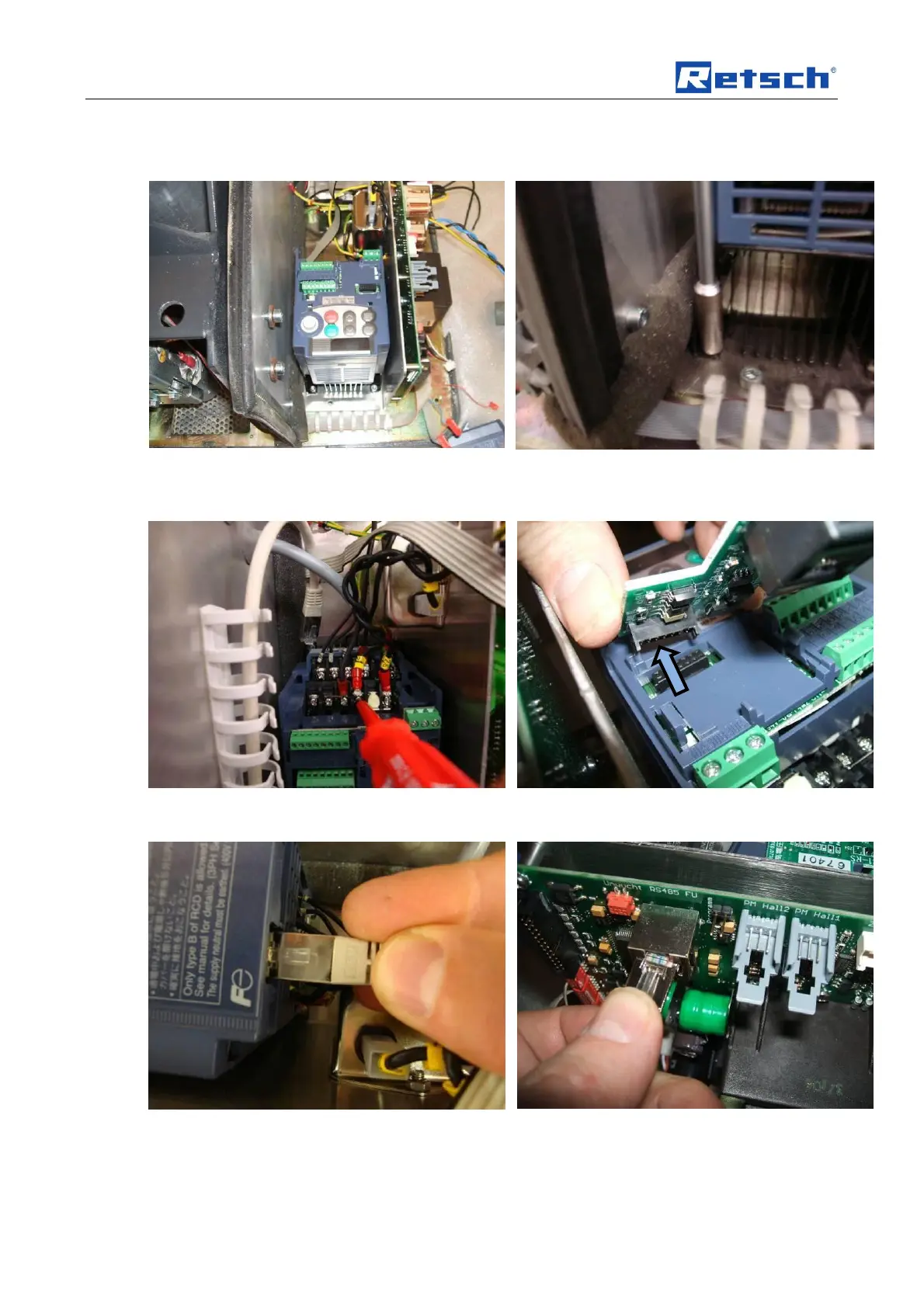

Disconnect the frequency converter from the brake
resistors, motor and power supply and take it out.
Place the new frequency converter on the base
plate and screw it in using the existing screw holes.
Connect the connection cables in accordance with
the terminal assignment described in the circuit
diagram.
Put the interface card downwards onto the
frequency converter. Take special care with the
contacts!
Plug the interface cable onto the interface card. Insert the other end of the interface cable into the
control PCB.
