USER MANUAL
PAGE 4
REVEZ©2015

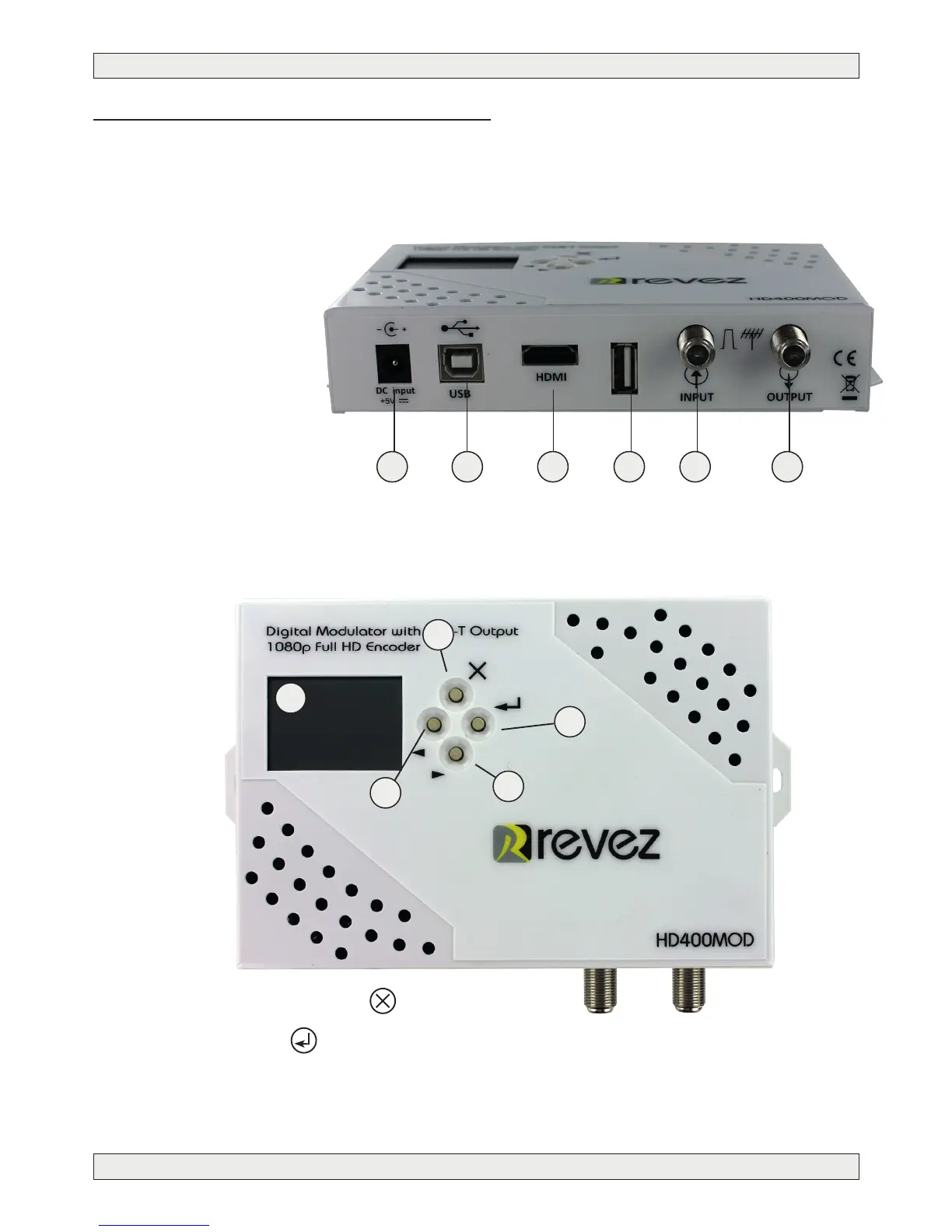

2 - Description of the different elements
A1 Display
T1 CANCEL/RETURN button
T2 ENTER button
T3 u (move forward/down) button
T4 t (move backward/up) button
HD400MOD
T1
T2
T3
A1
C1 C2 C3 C4C6
C1 Power supply input (5V/2A)
C2 USB input (for programming
the HD400MOD by PC)
C3 RF input
C4 RF output
C5 for future use
C6 HDMI input
C5
T4
