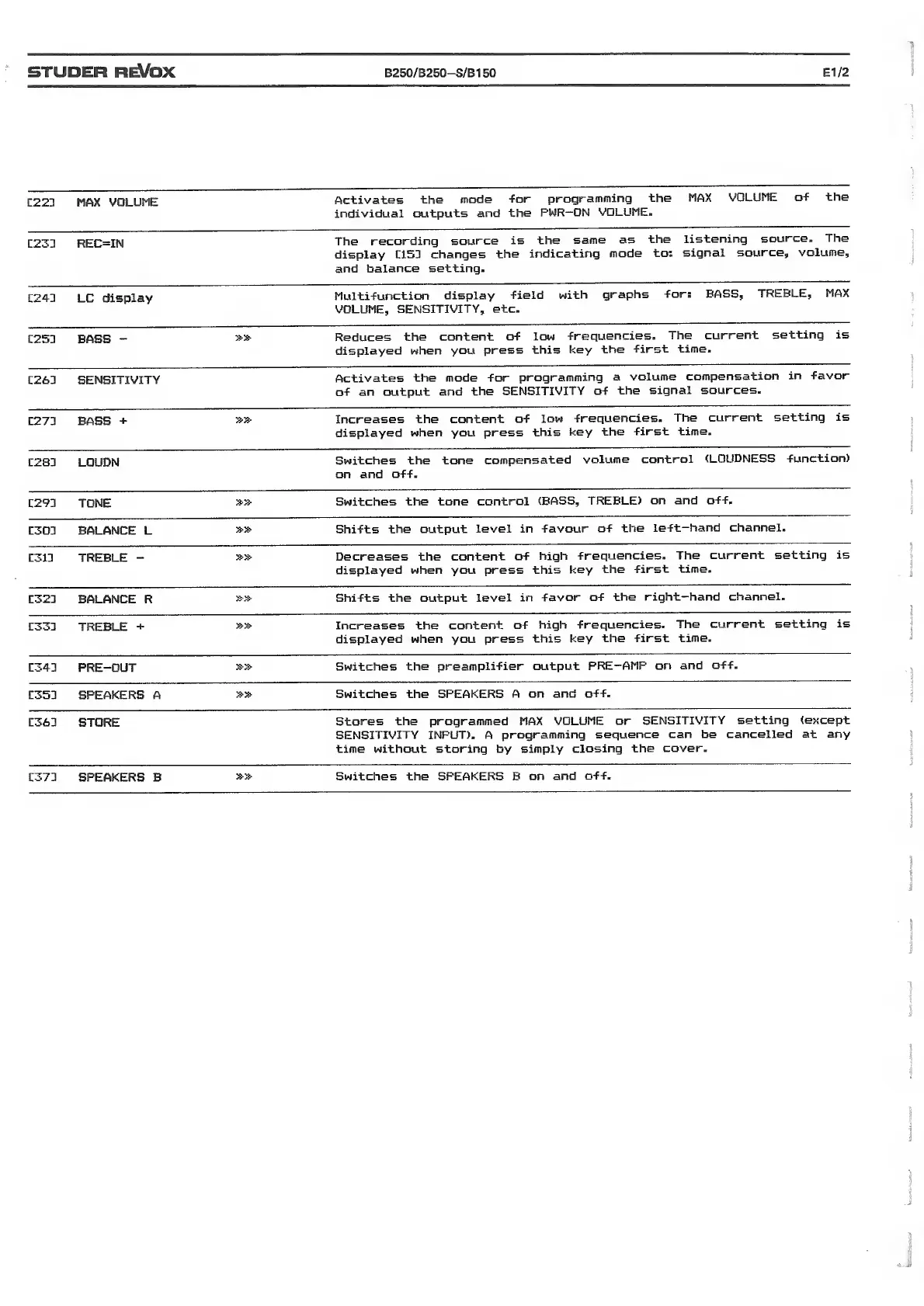

Revox B250-S Service Manual

B250/B250-S/B150STUDER
R^OX
El/2
C223 MAX
VOLUME
Activates
the
mode
-for
programming
the MAX
VOLUME
o-f the
individual
outputs and
the
PWR—ON
VOLUME.
C233 REC=IN
The
recording
source
is the
same
as
the
listening
source. The
display
[153 changes
the
indicating
mode
to:
signal
source, volume,
and
balance setting.
C243 LC
display
Multifunction
display
field
with
graphs
for: BASS,
TREBLE, MAX
VOLUME,
SENSITIVITY, etc.
C253 BASS
-
Reduces
the content
of low
frequencies.
The
current
setting is
displayed when
you
press this
key
the
first time.
C263
SENSITIVITY
Activates
the mode for
programming
a volume
compensation
in favor
of an output
and
the
SENSITIVITY of
the
signal
sources.
C273 BASS
+
Increases the
content O'f
low
frequencies.
The
current
setting is
displayed
when you press
this
key the
-first
time-
C283
LOUDN
Switches the tone
compensated
volume
control
(LDUDNESS
function)
on and
off-
C293 TONE
Switches the tone
control
(BASS,
TREBLE) on and
off.
C3Q3 BALANCE L
Shifts
the output
level in
favour of the
left-hand channel.
C313 TREBLE
-
Decreases the
content of
high
frequencies.
The current
setting is
displayed when you press
this key
the
first time-
[323
BALANCE R
Shifts the output
level in
favor
of the right-hand
channel.
C333
TREBLE
+ Increases the
content of
high
frequencies. The
current setting
is
displayed when you press
this
key the first
time.
[343
PRE-OUT
Switches
the preamplifier output
PRE—AMP on
and
off.
[353 SPEAKERS A
Switches the
SPEAKERS A on and
off.
[363
STORE
Stores the programmed MAX
VOLUME or
SENSITIVITY
setting [except
SENSITIVITY INPUT). A
programming
sequence can be cancelled
at any
time without storing by simply
closing
the cover.
[373
SPEAKERS B
S-3-
Switches the SPEAKERS B on
and
off.
