Revox M51 - Page 2

R&D Department
Multiuser Card
Page 2

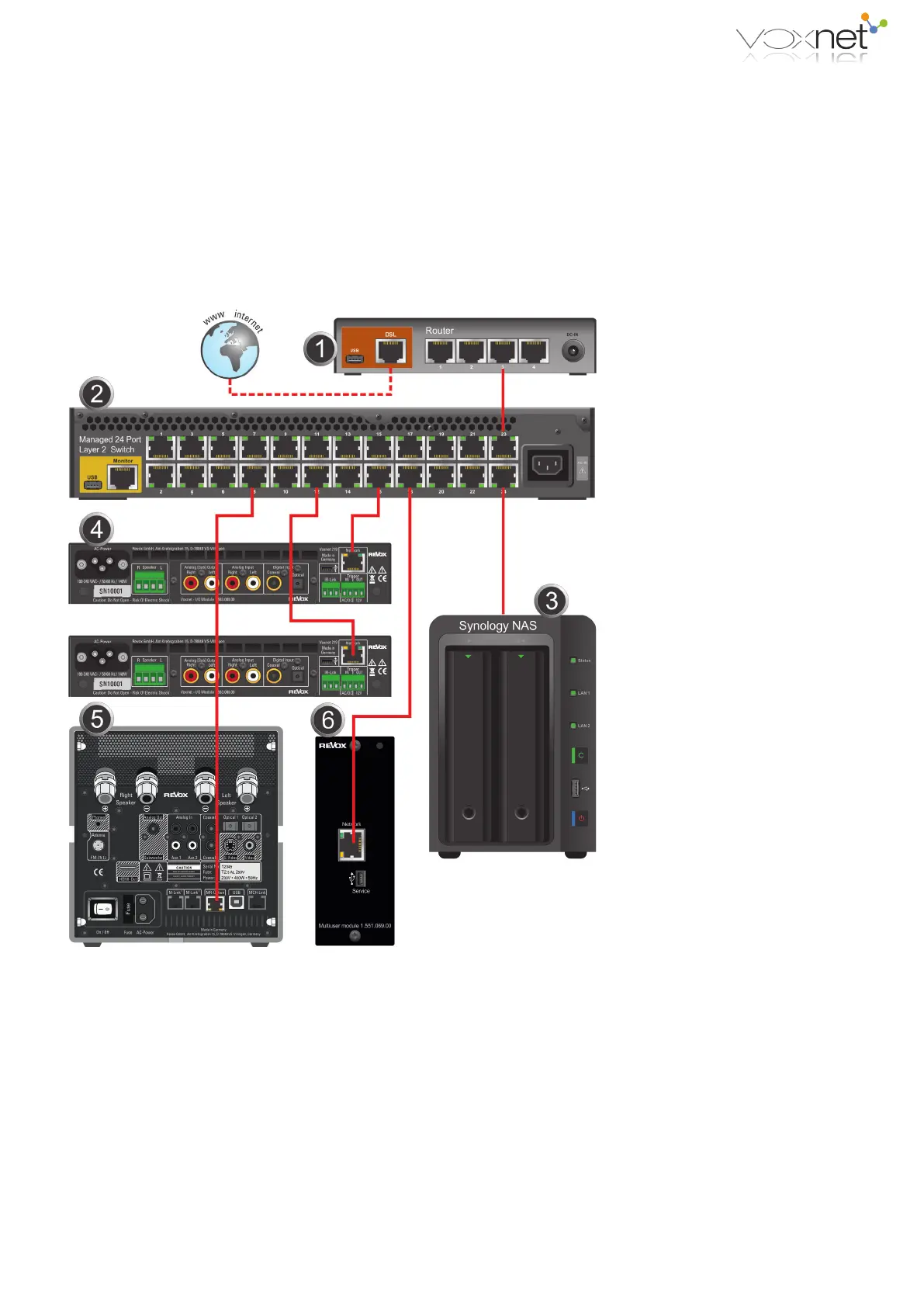

Example of a wiring scheme for the Multiuser System
1. DHCP router
2. Layer 2 Switch (managed)
3. Synology NAS with Voxnet sw
4. Voxnet 219 amplifer with I/O
5. M100 with Multiuser sub-module
6. Multiuser module for M51
