M51 trigger assignment
For the M51 trigger there is a slot selection [Slot 1-4 ] with a source selection [Input 1-4]. Since the slots of the M51 are freely
selectable, the various modules are defined as documented in the table below:
Input (Trigger]
Tuner (FMT-1)
1.551.080.00
Tuner (FMT+2)
1.551.080.01
Tuner I/O (FMT+2)
1.551.080.02
Analog I/O-Modul
1.551.081.00
Input 1
FM Tuner
FM Tuner
FM Tuner
Aux -1
Input 2
-
-
Aux -1
Aux -2
Input 3
-
-
Aux -2
Aux-3
Input 4
-
-
Aux-3
Rec-In
Note:
Slot 6 is not supported by source triggers; Slot 7 is reserved for the 5.1 decoder module and is also not supported. The
Multiuser module (MUS) must be installed in Slot 5. Shaded sources (e.g. available at the tuner I/O module) do not change
the input order.
Other modules / sources (such as the digital sources of the 5.1 decoder module) are not supported in the Multiuser system.

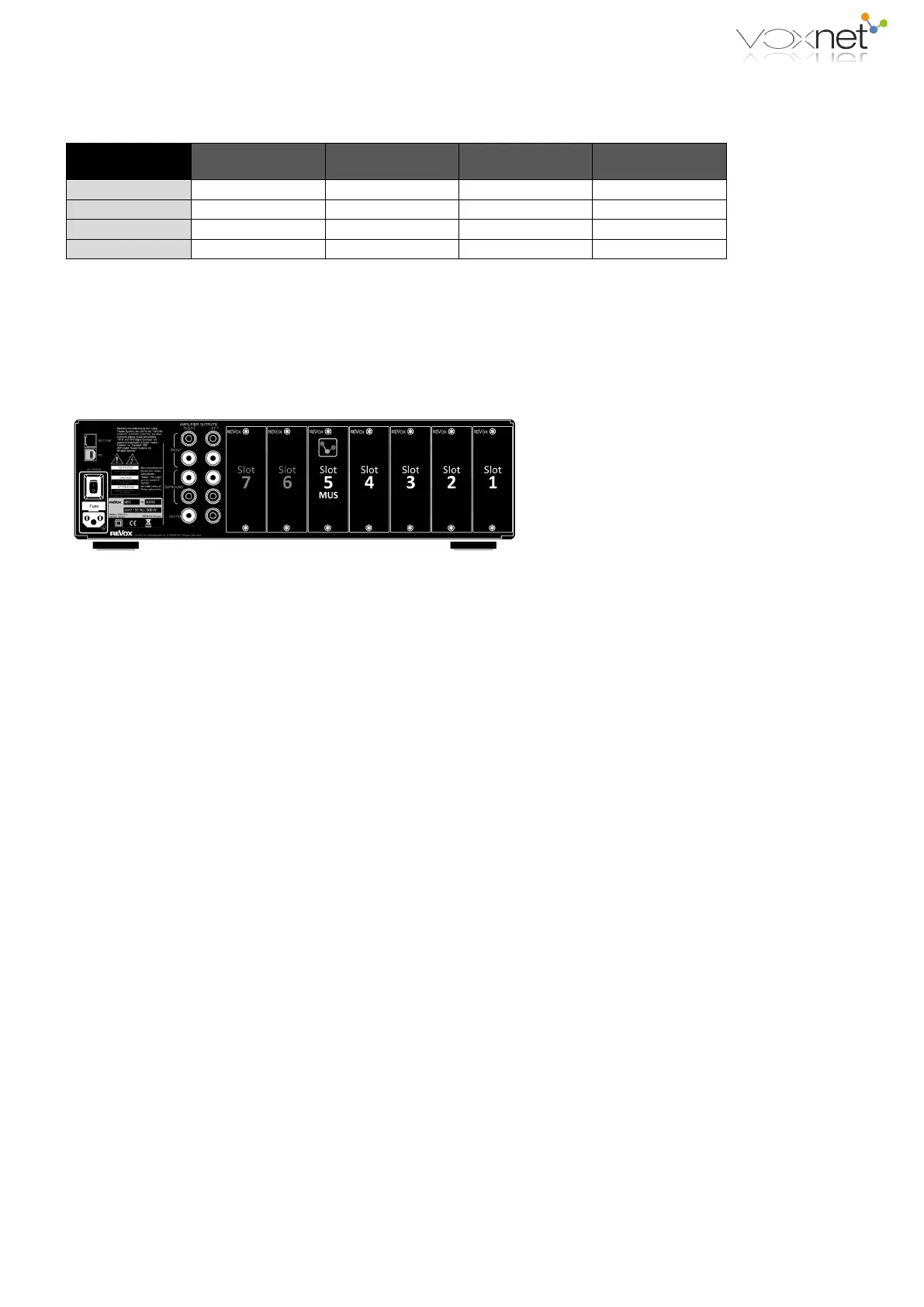

Slot partitioning of a M51 in a Multiuser System
M100 trigger assignment
If the slot M100 is selected, 4 sources are available from the M100 base system.
These are: Aux 1, Aux 2, Tuner, CD.
Other modules / sources, e.g. the digital sources Opto or Coax, are not supported in the Multiuser system.
