10
• This system is designed for easy cleaning. At the tail shaft the blades open up
in a way that all areas and surfaces can be reached and cleaned easily. The
base of the system is ported to allow the removal of possible fi ne product resi-
due such as seasoning or fl avouring.
1.3 NEW SYSTEMS
Obviously the Rexnord 2010 ISR system can be used on new equipment as well.
In this case you will experience the easy and simple conveyor design needed for
the 2010 ISR. Details about new conveyor design can be found in our engineering
manual, section inclined conveyors. If you need this information and do not have it
yet please contact our Application Engineering department at AE.Europe@Rexnord.
com (for Europe, Africa, Asia and South America) or AE@Rexnord.com (for Mexico,
United States and Canada) depending on your location.
1.4 EXISTING SYSTEMS
In the case of existing systems the conversion to the Rexnord 2010 Integrated Sid-
eRail is possible with minimal modifi cations. The most common retrofi t situations are
described below.
REXNORD INTEGRATED SIDERAIL

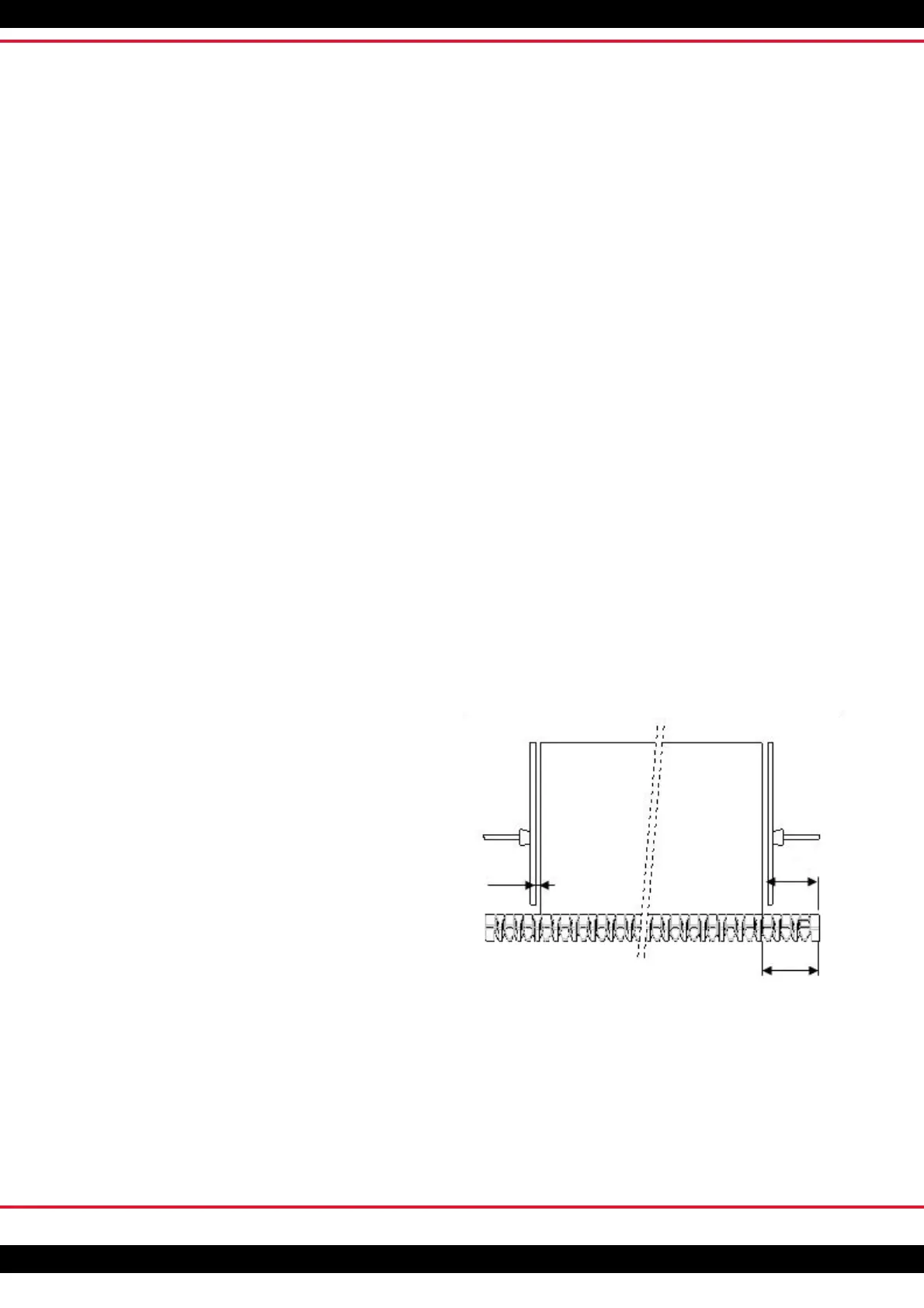

Static Guides
Conveyors with static guides typically
use a 2-inch side indent (distance from
the side of the chain to the side of the
pusher attachment). The static guides
need to be removed and the ISR chain
can be installed. In the return way the
Integrated SideRail can be implement-
ed system because it falls within the
outer most dimensions of the current
pusher attachments. If desired the stat-
ic guides could be left on the conveyor,
however this would greatly reduce the
overall cleanability. If the side indent is
smaller then 2-inch the Rexnord 2010
Integrated SideRail can still be used.
Only if the current side indent is larger
than 2-inch more conveyor modifi ca-
tions are required.
1/5 IN
[5,1 MM]
2,0 IN
[50,8 MM]
1
4/5
IN
[45.7 MM]
