Form I-MAPSIII&IV, P/N 222917R9, Page 33

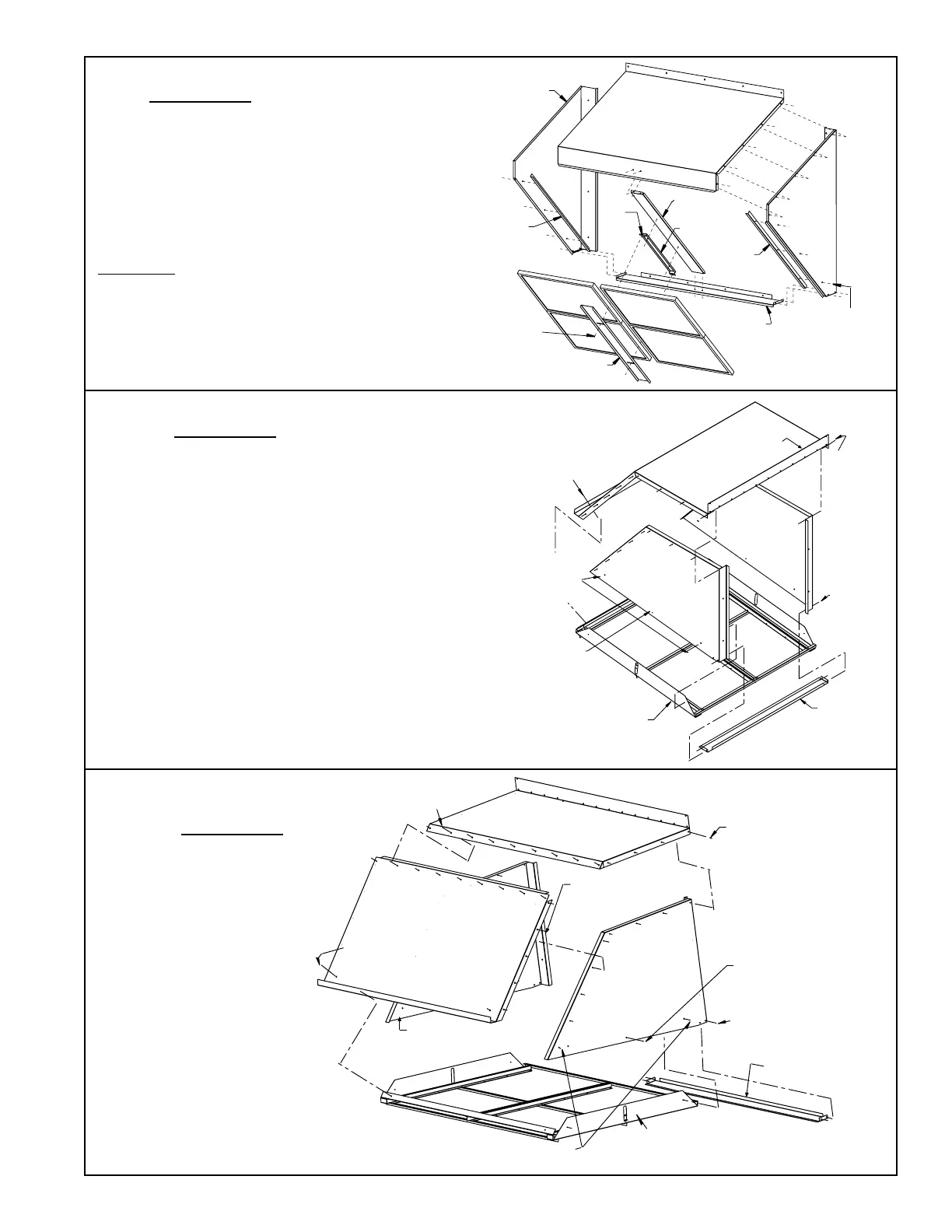

FIGURE 17A - Installation of Outside Air
Hood, Option AS16, on Cabinet Sizes A
and B without an optional power exhaust
(For a cross-reference of cabinet size and
model size, refer to the Appendix, pages 71-
72.)
Filter Sizes
Cabinet A - (4) 1x16x20
Cabinet B - (4) 1x16x25
FIGURE 17B - Installation of Outside
Air Hood, Option AS19, on Cabinet
Size A with an optional power exhaust
(Option PE1) (For a cross-reference of
cabinet size and model size, refer to the
Appendix, pages 71-72.)
NOTE: If lter tray is mistakenly
installed without lters in place,
see instructions in Form O-MAPS
for installing lters.
FIGURE 17C -
Installation of Outside
Air Hood, Option AS19,
on Cabinet Size B with
an optional power
exhaust (Option PE2)
(For a cross-reference of
cabinet size and model size,
refer to the Appendix, pages
71-72.)
