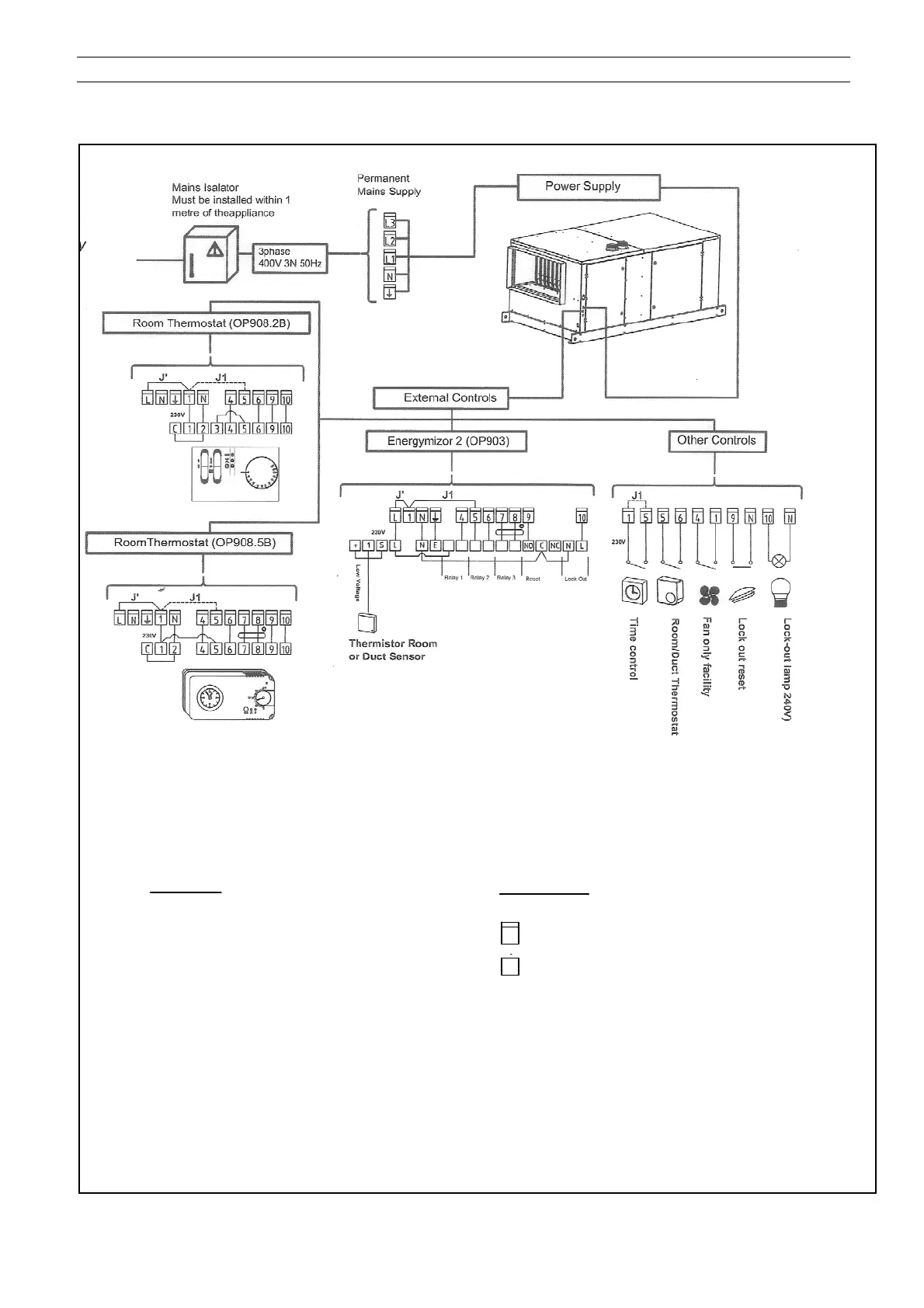

8.4 Wiring connections on the terminal board Figure 10 :
Figure 10
5.
Controls cables 0,75 mm for
up to 200 metre run.
Fuse rating must be sufficiently
sized to handle heater & motor
loadings.
Energymizor Sensor cable
0,25mm (screened)
Master/slave cable 0,1mm,
bell wire type (no screen
necessary)
8.
6.
7.
Retain/insert link wires shown solid
Terminals shown may not be in
numerrical order. Unused terminals
may not be shown at all.
Remove link wires shown dotted
1 Phase supply cable 2,5 mm
minimum.
N
o
t
es:
4.
3.
2.
1.
Legend:
Heater terminals
Controls terminals
