18
I-UBX-UBZ-UDX-UDZ (03-21) 1034344-0

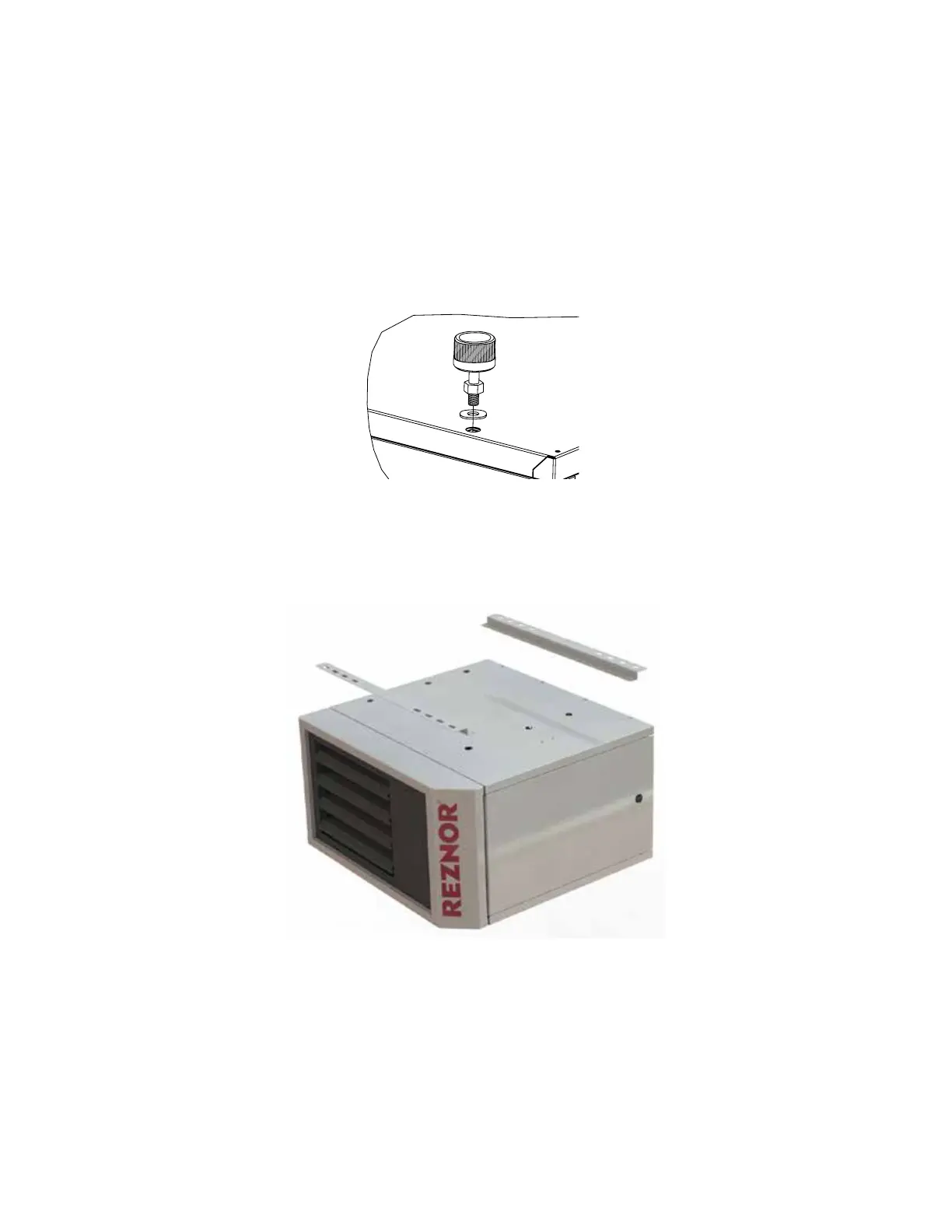

Figure 6. Option CK8 or CK10 Hanger Kit
Suspension of Heater Using Option CK22 Hanger Kit
Option CK22, is available for unit sizes 030–125. This option allows the heater to be installed one inch from the
ceiling without hanger rods as shown in Figure 7. Refer to the installation instructions provided with the kit.
INSTALLATION—CONTINUED
Heater Suspension—Continued
Suspension of Heater with Downturn Nozzle
Downturn nozzle kits (option CD2, CD3, CD4, or CD5) require four-point suspension. Follow the instructions provided
with the kit for downturn nozzle installation.
Suspension of Heater Using Option CK8 or CK10 Hanger Kit
Options CK8 (two-point suspension) and CK10 (four-point suspension) are for suspending the heater using swivel
connectors connected to 1-inch pipe. Attach the swivel connectors at the 3/8-16 threaded nut retainers. Ensure that
the swivel connectors are locked to the heater as shown in Figure 6.
Figure 7. Option CK22 Hanger Kit
