-S1M / HORNET S2M (230Vac Powered Receivers)
S1M / HORNET S2M (230Vac Powered Receivers)S1M / HORNET S2M (230Vac Powered Receivers)
S1M / HORNET S2M (230Vac Powered Receivers)
The HORNET system provides up to 4 isolated switches each capable of switching up
to 6A @230V
1. Open the enclosure by removing the two fixing screws from the base of the
enclosure and the antenna, the board should then slide out.

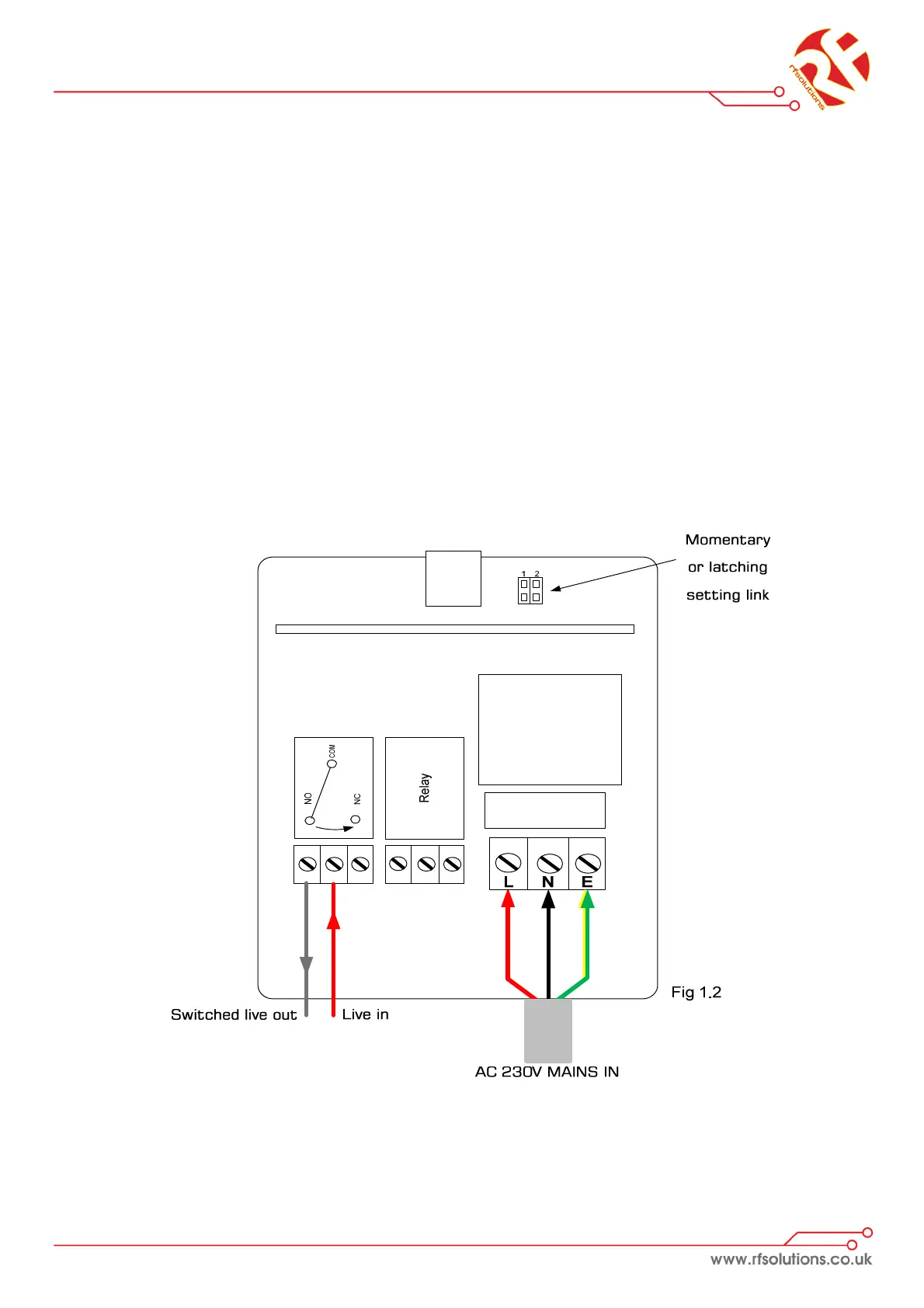

2. Wire the power as shown on Fig 1.2
3. Wire your chosen switch as required
4. Once the receiver is set-up transmitter button 1 will switch relay 1 (button two
relay two and so on). Each button will change the state of the relay (i.e. one
press for on, one press for off).
