Advanced Operation
Advanced OperationAdvanced Operation
Advanced Operation
Please Note:
Please Note:Please Note:
Please Note:
During Learn and Erase the relays operate at high speed. They should be isolated from sensi-
tive equipment during this process.
To Pair additional Transmitter buttons to receiver Relay #1
To Pair additional Transmitter buttons to receiver Relay #1To Pair additional Transmitter buttons to receiver Relay #1
To Pair additional Transmitter buttons to receiver Relay #1
1. Apply power the receiver and wait 10secs for the unit to enter ‘normal operation’ mode.
2. Switch the receiver unit OFF and then ON again in ~1sec intervals FOUR
FOURFOUR
FOUR times finally leaving the unit
powered.
3. The receiver emits a continuous ‘Click’ to confirm it is now in ‘learn’ Mode
4. Press the chosen transmitter button.
5. The receiver will acknowledge by sounding the a single ’buzz’
6. Learn Process complete.
To Pair additional Transmitter buttons to receiver Relay #2
To Pair additional Transmitter buttons to receiver Relay #2To Pair additional Transmitter buttons to receiver Relay #2
To Pair additional Transmitter buttons to receiver Relay #2
1. Apply power the receiver and wait 10secs for the unit to enter ‘normal operation’ mode.
2. Switch the receiver unit OFF and then ON again in ~1sec intervals SIX
SIXSIX
SIX times finally leaving the unit
powered.
3. The receiver emits a continuous ‘Click’ to confirm it is now in ‘learn’ Mode
4. Press the chosen transmitter button.
5. The receiver will acknowledge by sounding the two ’buzzes’
6. Learn Process complete.
Erasing Receivers Memory
Erasing Receivers Memory Erasing Receivers Memory
Erasing Receivers Memory
1. Power the receiver unit up and wait 10 seconds for the unit to enter ‘normal operation’ mode.
2. Switch the unit off and then on again at ~1 second intervals TEN
TENTEN
TEN times, leaving the unit powered.
3. The receiver confirms Erase cycle complete by giving three short ‘Buzzes’
4. The unit has now erased all encoder data.
NOTE:
NOTE:NOTE:
NOTE: You cannot erase individual Tx encoders
Configuring Receiver Relays
Configuring Receiver RelaysConfiguring Receiver Relays
Configuring Receiver Relays
The jumper links set the outputs to be Momentary (operates as long as transmitter is operated)
or Latching (Relay changes state each time transmitter is pressed).
The jumper links are made/removed by the small link ‘cap’ placed over the pin header.
Link1 controls relay Output #1
Link2 controls relay Output #2
Link FITTED = LATCHING
Link OPEN = MOMENTARY

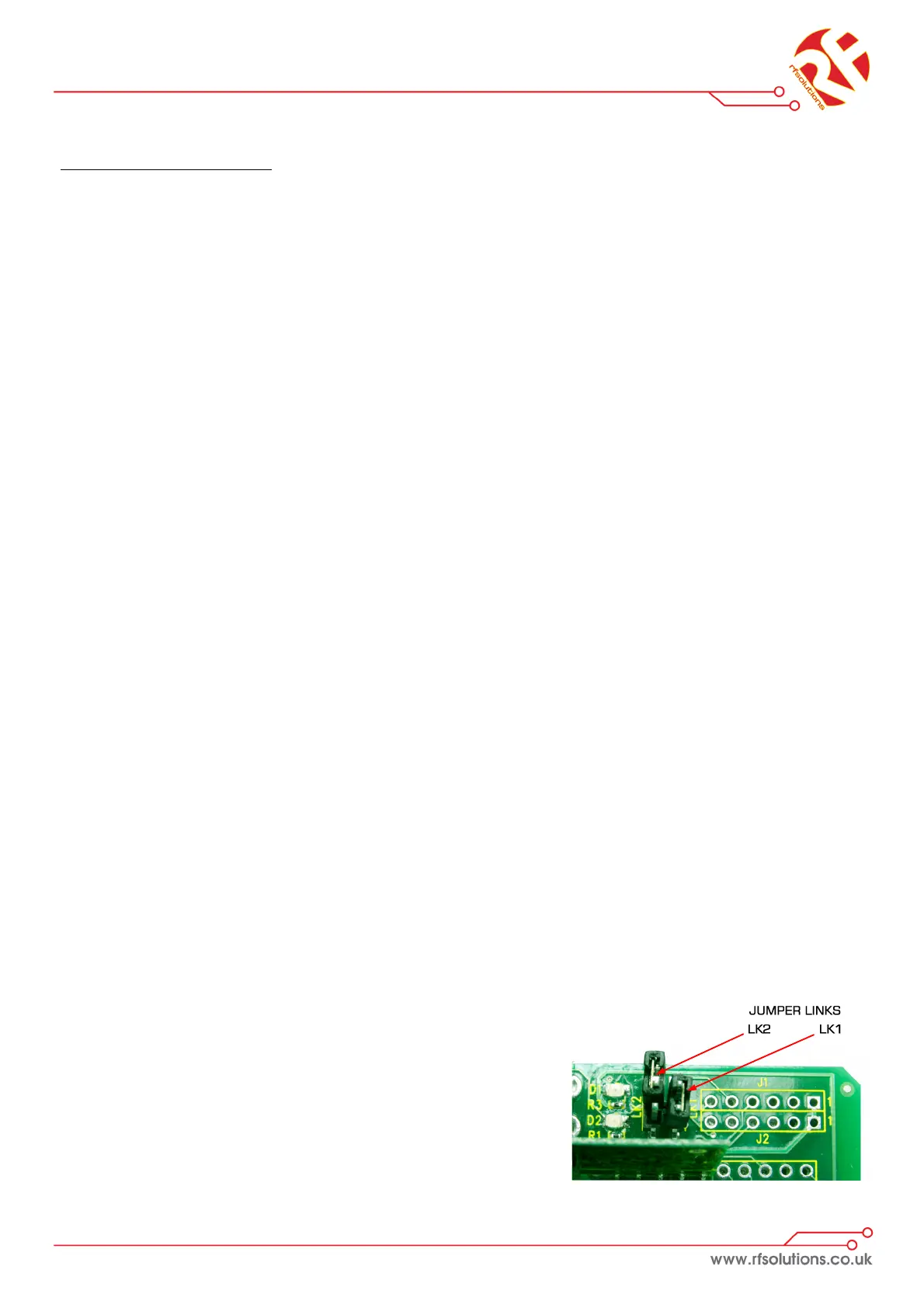

Image shows, RLY2 Momentary, RLY1
Latched.
