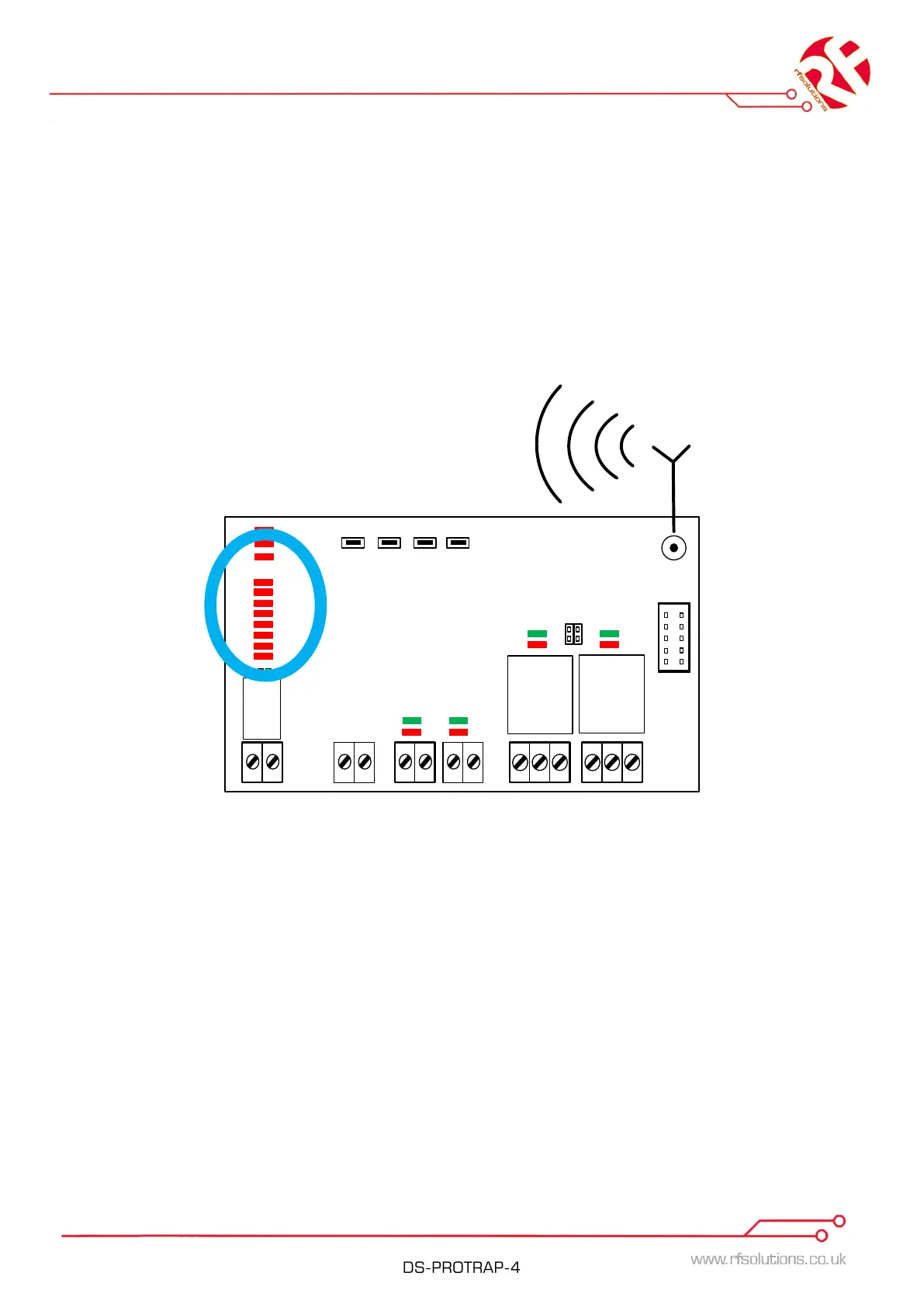

1. Any 725TRX will display a received signal on the Signal Strength LED bar graph from a
compatible transmitter.
NOTES: For reliable communications please ensure at least 3 LED’s are lit in this test.
Display Signal Strength
This allows a user to check the signal strength (Walk Test).
Power
Tx
Rx
50%
100%
10%
B
NO COM NC NO COM NC
Strength
WATCHDOG
Timer
WatchDog Mode Pair
